USAutomatic 030229 Smart App DB9 Cable Compatibility and Service Details

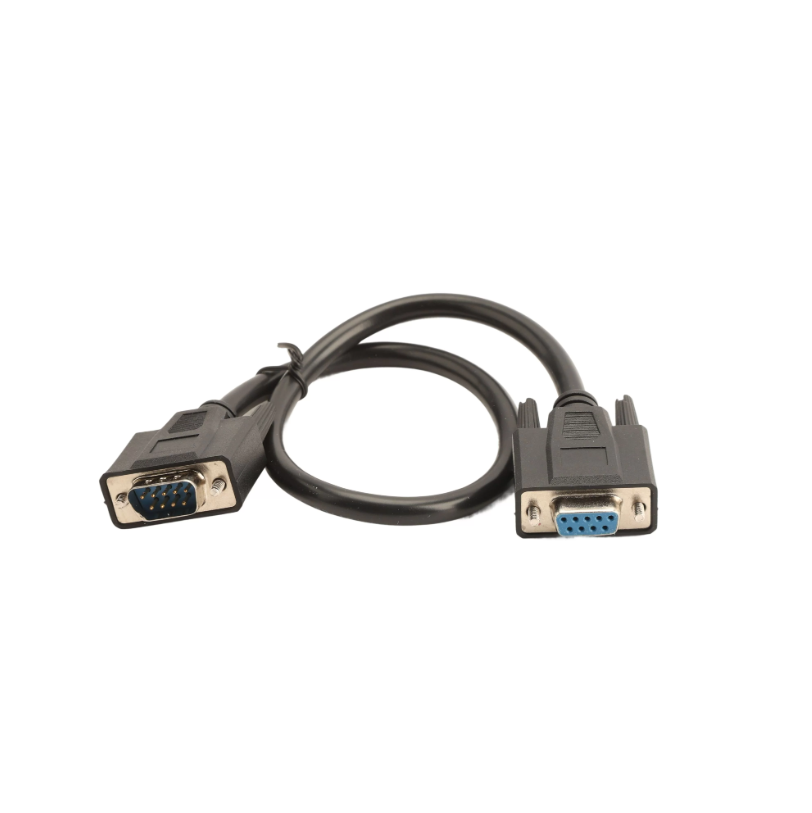

The USAutomatic 030229 is the DB9-to-DB9 operator connecting cable associated with the USAutomatic 030223 Nexx Gate Smart App WiFi Receiver. It provides the physical connection between the Smart App receiver module and a compatible USAutomatic gate operator control board.
USAutomatic installation documentation identifies this connection as the "Opener Connecting Cable" and shows a DB9-to-DB9 cable running from the Nexx Gate receiver to the operator control board. This is a replacement connection cable only and should not be confused with the separate external antenna cable used by the same Smart App system.
What This Cable Does
The 030229 connects the compatible 030223 Nexx Gate receiver to the gate operator control board. This connection allows the Smart App module to interface with a compatible USAutomatic operator for supported gate-control and status functions.
The cable itself does not provide WiFi service, act as an antenna, or replace the Smart App receiver. The complete 030223 system also depends on a compatible control board, properly configured Nexx Gate receiver, antenna arrangement, and adequate network connection.
Compatible With
- USAutomatic 030223 Nexx Gate Smart App WiFi Receiver
- USAutomatic control boards specifically approved for the 030223 Smart App receiver
- 500018 Patriot Swing Gate control board
- 500026 Patriot RSL Slide Gate control board
- 500027 Ranger HD Swing Gate control board
- 500028 Ranger 500 Swing Gate control board
- Select newer USAutomatic operator control boards equipped with the correct Smart App DB9 connection when confirmed by current manufacturer documentation
Important Compatibility Warning
Do not order this cable by gate operator model name alone. USAutomatic specifically instructs installers to verify that the control board is compatible and has the required DB9 connector. Operators produced in different generations may use different control boards, connectors, software, or Smart App compatibility.
Confirm the control board part number, existing DB9 connector, Smart App receiver model, and replacement cable before ordering. If the control board is not one of the documented compatible versions, verify compatibility with current USAutomatic service information before installation.
Features & Specifications
| Specification | Details |
| Manufacturer | USAutomatic |
| Part Number | 030229 |
| Product Type | Smart App operator connecting cable |
| Cable Configuration | DB9-to-DB9 |
| Primary Related Product | 030223 Nexx Gate Smart App WiFi Receiver |
| Connection | Smart App receiver module to compatible USAutomatic control board |
| Cable Length | Exact public specification not confirmed |
| Pinout | Exact public specification not confirmed |
| Programming Required | No programming required for cable itself |
| Smart App Receiver Included | No |
| Antenna Included | No |
| Antenna Coax Cable Included | No - 030227 is a separate related part |
Also Known As / Related Part Numbers
- 030229 - Smart App DB9 Cable
- 030223 - Nexx Gate Smart App WiFi Receiver
- 030227 - Smart App antenna coax / extension cable
- 030228 - Smart App external antenna
- 500018 - Patriot Swing compatible control board listed by USAutomatic
- 500026 - Patriot RSL compatible control board listed by USAutomatic
- 500027 - Ranger HD compatible control board listed by USAutomatic
- 500028 - Ranger 500 compatible control board listed by USAutomatic
030229 vs. 030227 Smart App Cable
The 030229 and 030227 are both associated with the USAutomatic Smart App system, but they serve completely different functions.
030229: DB9-to-DB9 operator connecting cable between the 030223 Smart App receiver and compatible gate operator control board.
030227: External antenna coax / extension cable used between the Smart App receiver antenna connection and external antenna arrangement.
These cables are not interchangeable. Verify which connection is damaged or missing before ordering.
Control Board Compatibility
USAutomatic's 030223 instructions specifically identify control boards 500018, 500026, 500027, and 500028 as compatible versions. The manual also instructs users with a different control board to verify compatibility before installing the Smart App receiver.
Do not assume every Patriot, Ranger, or USAutomatic operator uses one of these board versions. Check the actual control board label and DB9 connection because older and newer production generations may differ.
Technician Note
If the Nexx Gate receiver does not power up or communicate correctly with the operator, inspect the 030229 cable and both DB9 connections before replacing the Smart App module or control board. Look for bent connector pins, loose plugs, damaged cable insulation, corrosion, or physical damage.
A cable problem can produce symptoms similar to a receiver or control-board failure. However, Smart App problems can also be caused by an incompatible board, weak 2.4 GHz WiFi signal, receiver configuration, antenna problems, or control-board issues.
Before Ordering Checklist
- Verify USAutomatic part number 030229 is the required service cable.
- Confirm the installation uses a USAutomatic 030223 Nexx Gate Smart App WiFi Receiver.
- Check the gate operator control board part number.
- Verify that the control board has the correct DB9 Smart App connector.
- Inspect both DB9 connectors for bent pins, corrosion, or physical damage.
- Do not confuse 030229 with the 030227 external antenna coax cable.
- Confirm that only the cable is required and that the 030223 receiver itself is not damaged.
- Verify compatibility before ordering for older or different control-board generations.
Installation and Service Notes
The 030229 connects between the Nexx Gate App Receiver Module and the compatible USAutomatic control board. Follow the current USAutomatic 030223 installation instructions and identify the correct DB9 connections before attaching the cable.
Do not force a DB9 connector into an incompatible port or attempt to modify the cable pinout. Exact internal pin assignments are not published in the current public product information reviewed, and using a generic computer serial cable without verified electrical compatibility is not recommended.
Disconnect applicable operator power sources before servicing internal control components. If the receiver does not operate after the correct cable is installed, verify the control board, battery and charging system, Smart App receiver, WiFi connection, and antenna system as applicable.
The Nexx Gate system allows remote gate operation and should only be used with a properly equipped gate operator. Do not bypass photo eyes, safety edges, vehicle safety detection, entrapment protection, or other required UL 325 safety functions. Electrical or control-board diagnosis should be performed by a qualified gate or access-control technician when the failure is unclear.
Product Questions & Answers
Q: What is USAutomatic 030229 used for?
A: The 030229 is the DB9-to-DB9 operator connecting cable used between the USAutomatic 030223 Nexx Gate Smart App WiFi Receiver and a compatible USAutomatic gate operator control board.
Q: Is USAutomatic 030229 compatible with the 030223 Nexx Gate receiver?
A: Yes. Current documentation identifies 030229 as the Smart App DB9 cable for connecting the 030223 Nexx Gate receiver to a compatible USAutomatic control board.
Q: Which USAutomatic control boards are documented for the 030223 Smart App system?
A: USAutomatic documentation identifies control boards 500018, 500026, 500027, and 500028. Other board versions should be verified before ordering because Smart App compatibility can vary by control-board generation.
Q: Is USAutomatic 030229 the same cable as 030227?
A: No. The 030229 is the DB9 control-board connecting cable. The 030227 is the separate external antenna coax cable used with the Smart App antenna arrangement.
Q: Does USAutomatic 030229 include the 030223 Smart App receiver?
A: No. The 030229 should be treated as the replacement DB9 connecting cable only. The 030223 Smart App receiver, antenna, and antenna coax cable are separate components.
Q: What length is the USAutomatic 030229 DB9 cable?
A: An exact cable length for part 030229 could not be fully confirmed from the current public manufacturer specifications reviewed. Confirm the current part or compare it with the original cable if length is critical.
Q: Can I replace USAutomatic 030229 with a generic DB9 computer cable?
A: A generic replacement should not be assumed compatible. Verify the cable wiring and electrical configuration because USAutomatic does not publish the complete 030229 pinout in the current public documentation reviewed.
Q: What should I check if the Nexx Gate receiver does not work after replacing the DB9 cable?
A: Verify both DB9 connections, compatible control-board part number, receiver condition, operator power, 2.4 GHz WiFi signal, antenna system, and Smart App setup. If internal electrical diagnosis is required, have the system checked by a qualified gate or access-control technician.
