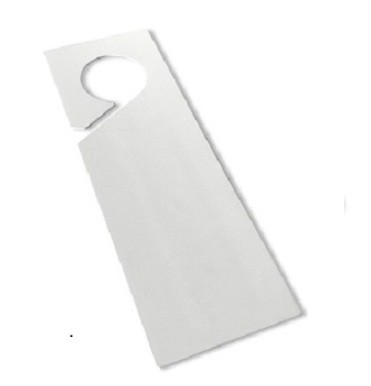

AWID HT-UHF-0-0, UHF Hang Tag, Blank for use with LR-2000 Readers - 50 pack
The AWID HT-UHF-0-0 is a hang tag style UHF credential used in AWID long-range access systems. It is selected when the credential needs to be removable, visible, and easy to issue, rather than permanently applied to a vehicle surface. This can be useful for visitor parking, temporary access, managed lots, vendor vehicles, or sites that need a physical hang tag process along with electronic access control. As with any portable or removable UHF credential, performance depends on where the user hangs or holds the tag and whether that position lines up with the reader field. If the reader is aimed for windshield tags or side mirror tags, a hang tag may not perform the same way. The tag must also be ordered in the correct bit format, facility code, and numbering sequence for the connected access control system.
Compatible With
- AWID LR-2000 UHF long-range reader
- AWID LR-2200 UHF long-range reader where supported by credential format
- AWID LR-3000 UHF long-range reader
- AWID LR-911 UHF long-range reader where supported by site equipment
- AWID UA-612 and uAxcess UHF reader applications where the credential format and facility code are programmed for the system
- Wiegand access control systems using AWID UHF reader data through the connected reader
Features and Specifications
| Manufacturer | AWID |
|---|
| Product Type | UHF long-range credential / vehicle tag |
|---|
| Part Number | HT-UHF-0-0 |
|---|
| Pack Quantity | 50 pack unless otherwise listed by the product row |
|---|
| Application | Hands-free vehicle identification for AWID UHF reader systems |
|---|
| Mounting Style | Hang tag / removable display credential |
|---|
| Compatible Reader Type | AWID UHF long-range readers |
|---|
| Read Range | Varies by reader, tag position, lane layout, and vehicle material |
|---|
| Programming | Facility code, bit format, and credential numbering must match the access control system |
|---|
| Power | Passive credential; no battery in the tag |
|---|
Also Known As / Related Part Numbers
Technician Note
Hang tags are useful for visible temporary access, but they are more dependent on user placement than permanent vehicle tags. Give users clear instructions for consistent reads.
Before Ordering
- Confirm the site uses AWID UHF long-range readers, not standard prox readers.
- Confirm facility code, bit format, and starting number before programming or ordering a pack.
- Choose the tag style based on vehicle surface, reader location, and whether the credential must be permanent or removable.
- Check for metallic windshield coatings, mirror housings, or vehicle surfaces that can reduce read range.
- Do not punch, drill, trim, or modify the credential unless AWID instructions specifically allow that exact tag style.
Professional Advisory
Credential selection should be handled as part of the access control system. Poor tag placement or the wrong credential style can look like a bad reader even when the reader is operating correctly.
Product Questions and Answers
Is HT-UHF a permanent vehicle tag?
No. It is a hang tag style credential intended for removable or display-based vehicle access use.
Can it be used for visitor access?
Yes, when the site policy allows removable credentials and the tag is programmed for the access system.
Which readers commonly use HT-UHF?
It is commonly associated with AWID LR-2000, LR-2200, LR-3000, UA-612, and related UHF reader systems where supported.
Will it read like a windshield tag?
Not always. Hang tag position, orientation, and reader aim can change read performance.
Does it need facility code programming?
Yes. It must match the system format, facility code, and credential number range.
