HySecurity MX002006-P, LIMIT SWITCH W/HDWE, SM

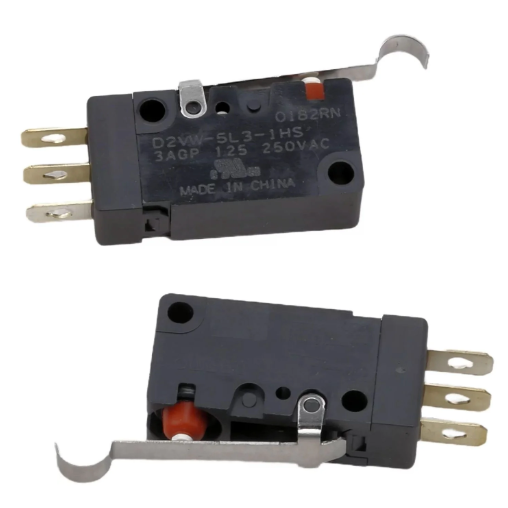

The HySecurity MX002006-P row describes a limit switch kit with hardware for SM, commonly interpreted as SwingSmart DC. Public product references most often list MX002006 without the -P suffix and describe it as a SwingSmart DC limit switch kit that includes two limit switches and four mounting screws. Because of that suffix difference, the part number should be manually reviewed before upload or ordering. The kit's job is to restore the mechanical/electrical limit feedback used by the operator to reference the open and close travel positions. A failed or misadjusted limit switch can cause poor stopping accuracy, travel errors, or inconsistent gate position reference. Limit circuits and safety circuits should never be bypassed; repair the failed component and test the operator correctly.
Common service reasons may include motor failure, heat, noise, damaged leads, worn hydraulic seals, missing hardware, limit-reference errors, or other symptoms tied to the specific part type. Always diagnose the operator first so the replacement part corrects the actual problem.
Compatible With
This part may be used with the following HySecurity applications when confirmed by part number, operator model, serial number, voltage package, and parts diagram:
- HySecurity SwingSmart DC gate operators when the parts diagram calls for MX002006 or MX002006-P
- SwingSmart DC open/close limit switch service applications using the matching switch style and mounting hardware
- Not a universal HySecurity limit switch kit; verify before using on StrongArm, SlideDriver, SwingRiser, HydraSwing, or other operator families
- Confirm whether the -P suffix is required by the supplier or whether MX002006 is the correct upload part number
Features & Specifications
| Feature | Specification |
|---|
| Manufacturer | HySecurity / Nice HySecurity |
| Product Type | Limit switch kit with hardware |
| Part Number | MX002006-P |
| Related Part Number | MX002006 |
| Application | SwingSmart DC limit switch service |
| Included Components | Common MX002006 references list 2 limit switches and 4 mounting screws |
| Mounting Style | Bolt-on switch hardware |
| Switch Style | D2VW-style switches referenced in some listings |
| Notes | Manual review recommended because public listings commonly show MX002006 without -P suffix |
Also Known As / Related Part Numbers
The following numbers and phrases are related search references, catalog aliases, or commonly associated part-number formats. Confirm whether a related number is an exact replacement before ordering.
Technician Note
Do not select HySecurity service parts by appearance alone. Similar operators can use different motors, switches, manifolds, seals, voltages, phases, frequencies, horsepower ratings, or hardware revisions. Match the original part number and the operator parts diagram before replacing components.
Before Ordering
- Verify the HySecurity part number printed on the old part or shown in the operator parts diagram.
- Confirm the operator model, serial number, and production generation.
- For motors, match horsepower, voltage, phase, frequency, RPM, motor type, and pump coupling arrangement.
- For hydraulic parts, confirm the exact manifold, seal location, and whether the system must be depressurized before service.
- For limit switch parts, confirm switch style, mounting hardware, harness condition, and limit adjustment procedure.
- Inspect related components so a failed motor, leaking seal, or limit issue is not caused by another damaged part.
Professional Advisory
Gate operators can move heavy gates and may contain high-voltage wiring, stored hydraulic pressure, and monitored safety circuits. Do not bypass safety devices, limit switches, entrapment protection, or factory wiring. If the operator moves unpredictably, has missing safety devices, leaks hydraulic fluid, or requires electrical diagnosis, have the system inspected by a qualified gate technician.
Questions & Answers
What does the HySecurity MX002006-P limit switch kit do?
This kit restores the open and close limit switch feedback used by compatible SwingSmart DC operators to reference gate travel and stopping points.
What parts are commonly included with the MX002006 style kit?
The commonly listed MX002006 kit includes two limit switches and four mounting screws. The -P suffix should be confirmed against the supplier part record before upload or ordering.
Is this kit for every HySecurity swing operator?
No. It is commonly associated with SwingSmart DC. Other HySecurity swing, barrier, or hydraulic operators may use different limit switches, harnesses, or mounting hardware.
What symptoms can point to worn or damaged limit switches?
Possible symptoms include incorrect stopping position, travel errors, inconsistent open or close reference, damaged switch levers, or a switch that tests open or closed when it should not.
Can limit switches be bypassed to make the gate run?
No. Limit and safety circuits should not be bypassed. If the gate will not reference position correctly, stop using the operator and have the limit system checked by a qualified technician.
