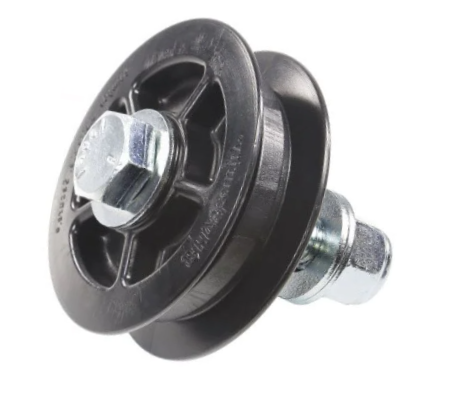

HySecurity MX002181-P, IDLER #40 CHAIN GUIDE, SL
The HySecurity MX002181-P is a #40 roller chain guide idler used to help control chain travel on select HySecurity slide gate operator systems. Its job is simple but important: the idler supports the chain path so the chain stays aligned with the sprocket and gate bracket hardware during opening and closing. A worn idler can create chain noise, uneven tracking, chain jump, accelerated sprocket wear, or poor gate movement under load.
The -P suffix should be confirmed against the supplier listing or HySecurity parts diagram. Many listings reference MX002181 without the suffix as the idler wheel pulley for #40 roller chain, often supplied with a bolt and bushing. If the operator uses a different chain guide assembly, such as a later SlideSmart HD idler assembly, the similar-looking part may not interchange. Match the physical idler, chain size, and mounting hardware before ordering.
Compatible With
- Select HySecurity SlideSmart DC slide gate operators using the MX002181 #40 roller chain guide idler.
- HySecurity slide gate operator chain guide locations designed for #40 roller chain.
- Front or rear chain guide installations only when the parts diagram calls for this idler style.
- Not confirmed as a replacement for MX4847 or other later SlideSmart HD idler assemblies unless the diagram specifically supports it.
- Verify chain size, mounting bolt, bushing, and original part number before ordering.
Features & Specifications
| Feature | Specification |
|---|
| Manufacturer | HySecurity |
| Product Type | #40 Chain Guide Idler |
| Part Number | MX002181-P |
| Related Base Number | MX002181 |
| Application | Slide gate operator chain alignment |
| Compatible Operator Type | Select HySecurity slide gate operators using #40 roller chain guide hardware |
| Chain Size | #40 roller chain applications |
| Included Components | Idler wheel package; commonly associated with bolt and bushing |
| Notes | Confirm -P suffix and physical mounting before ordering |
Also Known As / Related Part Numbers
Technician Note
A worn idler is often a symptom as much as a failed part. Check chain tension, chain alignment, gate bracket position, sprocket wear, and gate movement so the new idler is not overloaded after installation.
Before Ordering
- Confirm the operator calls for MX002181 or MX002181-P.
- Verify the gate uses #40 roller chain at this chain guide location.
- Compare the existing idler diameter, bolt, bushing, and mounting position.
- Inspect chain tension and sprocket alignment before returning the gate to service.
- Do not substitute MX4847 or another idler assembly without parts diagram confirmation.
Professional Advisory
A chain guide idler should never be used as a fix for a misaligned or binding gate. Correct the chain path, gate bracket location, and slide gate hardware condition before operating the system at full speed.
Questions & Answers
What does the MX002181-P idler do?
It guides and supports #40 roller chain on select HySecurity slide gate operators so the chain stays aligned through the operator.
Is MX002181-P the same as MX002181?
MX002181 is the commonly referenced base part number. The -P suffix may indicate supplier packaging or a specific kit listing, so confirm it against the parts diagram or supplier record.
What symptoms indicate this idler may be worn?
Chain noise, chain jumping, a loose or damaged idler wheel, uneven chain tracking, or visible wear around the bushing can point to a worn chain guide idler.
Does this fit every SlideSmart model?
No. It is commonly associated with select SlideSmart DC chain guide applications, but later or different slide operators may use different idler assemblies.
What should be checked when replacing the idler?
Check chain size, chain tension, sprocket alignment, gate bracket location, idler mounting hardware, and the operator parts diagram.
