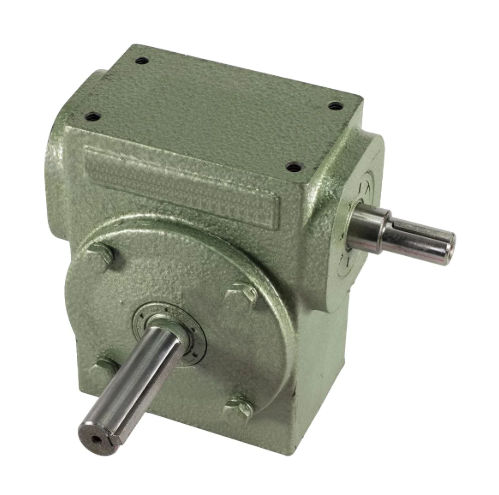

HySecurity MX002210, GEARBOX, #60, WITH OIL
HySecurity MX002210 is a replacement gearbox with oil for select HySecurity SlideSmart gate operator drive applications. Current Nice HySecurity documentation lists MX002210 as a SlideSmart DC / SlideSmart gearbox for SlideSmart HD models.
This gearbox is part of the operator drive system and should be matched by exact part number, operator model, mounting pattern, sprocket or pulley arrangement, motor type, chain/belt configuration, and HySecurity parts diagram. The user-provided description includes "GEARBOX, #60, WITH OIL," so the installed gearbox, output hardware, and current parts diagram should be checked before ordering.
What This Gearbox Does
The gearbox transfers motor power into the drive system used to move the slide gate. In a compatible SlideSmart operator, the gearbox works with the motor, drive belt, motor pulley, gearbox pulley, sprocket, chain, target sensor hardware, controller, and gate hardware to provide controlled gate movement.
A worn, leaking, noisy, seized, misaligned, or damaged gearbox can cause grinding, rough movement, no movement, belt wear, chain/sprocket wear, drive faults, motor strain, slow operation, or repeated drive component failure. Similar symptoms can also be caused by a bad motor, worn belt, loose pulley, damaged sprocket, tight chain, gate drag, bad rollers, damaged track, low battery voltage, controller faults, or an obstruction in the gate path.
Compatible With
Use HySecurity MX002210 only where the operator parts diagram, original gearbox label, or HySecurity documentation confirms this part number.
- Select HySecurity SlideSmart HD applications where MX002210 is listed as the SlideSmart gearbox.
- SlideSmart HD models where the parts documentation lists MX002210 as "Gearbox, SlideSmart DC" or "Gearbox, SlideSmart."
- Select SlideSmart DC / SlideSmart operator drive repairs where the parts diagram confirms MX002210.
- Repairs where the original gearbox is marked, listed, or cross-referenced as HySecurity MX002210.
- Applications where the gearbox mounting pattern, output hardware, chain/sprocket arrangement, belt/pulley layout, motor interface, and oil-filled gearbox configuration match the HySecurity parts diagram.
Important Compatibility Warning
Do not order MX002210 based only on the word "gearbox." HySecurity uses different gearboxes, belts, pulleys, sprockets, motors, and drive layouts across SlideSmart DC 10F, SlideSmart DC 15, SlideSmart HD25, SlideSmart HD30, SwingSmart, StrongArmPark, WedgeSmart, and other operator families.
The "#60" wording in the product description should be verified before ordering. Current parts documentation lists nearby related components such as a 60T gearbox pulley and #40 roller chain sprockets, so make sure the required part is the actual MX002210 gearbox and not a related pulley, sprocket, chain, or drive hardware item.
Similar Parts That Are Not Automatically Interchangeable
- HySecurity MX002076 - gearbox pulley, 60T, 15 mm; related pulley, not the gearbox.
- HySecurity MX002211 - #40 roller chain sprocket, 30T; related sprocket, not the gearbox.
- HySecurity MX4369 - #40 roller chain sprocket, 24T; related sprocket, not the gearbox.
- HySecurity MX002106 - SlideSmart DC 15 / HD25 / HD30 drive belt; related belt, not the gearbox.
- HySecurity MX002107 - SlideSmart DC 10F drive belt; related belt, not the gearbox.
- HySecurity MX002573 - 24VDC, 750W motor with sensor; related motor, not the gearbox.
- HySecurity MX001995 - 24VDC electric motor; related motor, not the gearbox.
- HySecurity MX002085 - target sensor switch; related sensor part, not the gearbox.
- HySecurity MX002087 - target magnet assembly; related target/magnet part, not the gearbox.
- Generic gearboxes or reducers - not confirmed substitutes unless mounting, ratio, shaft, oil, pulley/sprocket arrangement, and parts diagram match.
Not Intended For
- Drive belt replacement.
- Gearbox pulley or motor pulley replacement.
- Chain sprocket or gate chain replacement.
- Motor or motor-with-sensor replacement.
- Target sensor, target magnet, reset switch, or limit/position hardware replacement.
- Smart DC controller board, power supply board, transformer, battery kit, or wiring harness replacement.
- SlideSmart DC 10F repairs unless the parts diagram specifically lists MX002210.
- SwingSmart, WedgeSmart, StrongArmPark, HydraWedge, SlideDriver, HydraSwing, SwingRiser, or other HySecurity operator repairs unless the parts diagram specifically lists MX002210.
- Complete SlideSmart operator replacement.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX002210 |
| Product Type | Slide gate operator gearbox with oil |
| Common Description | Gearbox, SlideSmart DC / Gearbox, SlideSmart / Gearbox, #60, With Oil |
| Common Application | Select HySecurity SlideSmart HD and SlideSmart drive applications where listed by parts diagram |
| Lubrication Note | Description indicates gearbox with oil; verify oil-filled condition and any service requirements before installation |
| Related Drive Components | Motor, drive belt, pulleys, sprockets, chain, target sensor, target magnet, and mounting hardware should be inspected during service |
| Important Related Part | MX002076 is a related 60T gearbox pulley and is not the same as MX002210 |
| Package Contents | Verify before ordering; pulley, sprocket, belt, chain, motor, mounting hardware, oil service parts, and sensor hardware may be separate unless stated |
Also Known As / Related Part Numbers
- MX002210
- HySecurity MX002210
- Nice HySecurity MX002210
- HYS-MX002210
- HYS-mx002210
- HySecurity SlideSmart gearbox
- HySecurity SlideSmart DC gearbox
- HySecurity SlideSmart HD gearbox
- Gearbox, SlideSmart DC
- Gearbox, SlideSmart
- Gearbox, #60, With Oil
- SlideSmart gearbox with oil
- SlideSmart HD gearbox with oil
- MX002076 - related gearbox pulley, 60T, 15 mm; not the same part
- MX002211 - related #40 roller chain sprocket, 30T; not the same part
- MX4369 - related #40 roller chain sprocket, 24T; not the same part
- MX002106 - related SlideSmart DC 15 / HD25 / HD30 drive belt; not the same part
- MX002107 - related SlideSmart DC 10F drive belt; not the same part
- MX002573 - related 24VDC 750W motor with sensor; not the same part
- MX001995 - related 24VDC electric motor; not the same part
Related Parts and Accessories
The correct related parts depend on the installed SlideSmart drive layout and why the gearbox is being replaced. Inspect the full drive system before ordering only the gearbox.
- MX002076 gearbox pulley, 60T, 15 mm - related pulley, not the gearbox.
- MX002211 #40 roller chain sprocket, 30T - related sprocket, not the gearbox.
- MX4369 #40 roller chain sprocket, 24T - related sprocket, not the gearbox.
- MX002106 SlideSmart DC 15 / HD25 / HD30 drive belt - related drive belt, not the gearbox.
- MX002107 SlideSmart DC 10F drive belt - related drive belt, not the gearbox.
- MX002573 motor with sensor, 24VDC, 750W - related motor, not the gearbox.
- MX001995 24VDC electric motor - related motor, not the gearbox.
- MX002085 target sensor switch and MX002087 target magnet assembly - related position feedback parts, not the gearbox.
- Chain, pulley, sprocket, belt, fasteners, mounting hardware, and covers - verify whether any are included or ordered separately.
Technician Note
Before replacing MX002210, inspect the gearbox for oil leakage, shaft play, rough rotation, grinding, binding, damaged mounting points, and abnormal noise. Also inspect the motor, drive belt, pulleys, sprockets, chain, target sensor, target magnet, mounting hardware, and gate movement.
If the gearbox failed because of a dragging gate, damaged track, bad rollers, tight chain, worn sprocket, misaligned belt, impact damage, water intrusion, or a seized drive component, replacing only the gearbox may not correct the issue. Correct the cause of the overload or drive wear before installing the replacement gearbox.
Before Ordering, Confirm
- The required part number is MX002210.
- The operator is a HySecurity SlideSmart HD, SlideSmart DC, or approved SlideSmart application where the parts diagram lists MX002210.
- The repair requires the gearbox with oil, not the gearbox pulley, drive belt, sprocket, chain, motor, target sensor, or controller board.
- The gearbox mounting pattern, shaft/output arrangement, pulley or sprocket interface, and drive layout match the original installation.
- The #60 wording in the description has been checked against the parts diagram so it is not confused with a 60T pulley or chain/sprocket part.
- The motor, belt, pulleys, sprockets, chain, target sensor, target magnet, and mounting hardware have been inspected for related problems.
- The gate track, rollers, chain tension, and gate movement have been checked for binding or excessive load.
- The package includes the expected oil-filled gearbox, or any required pulley, sprocket, belt, chain, hardware, or oil service items are ordered separately if needed.
Installation and Service Notes
- Disconnect and secure operator power before servicing the gearbox, motor, belt, chain, or pulley area.
- Secure the slide gate so it cannot move unexpectedly while drive components are removed.
- Keep hands clear of the belt path, pulleys, sprockets, chain, and moving gate hardware.
- Inspect belt, pulley, sprocket, and chain alignment before installing the replacement gearbox.
- Confirm the gearbox oil-filled condition and follow the service procedure for any oil-related checks.
- After installation, check for smooth movement, abnormal noise, belt tracking, chain alignment, sprocket engagement, sensor response, and correct operator travel.
- Verify all required safety devices, access control safety inputs, stop circuits, entrapment protection devices, photo eyes, safety edges, and controller protections before returning the operator to service.
Professional Advisory
SlideSmart gearbox replacement should be handled by a qualified gate technician when the repair involves drive alignment, chain and sprocket setup, belt tension, motor removal, target sensor alignment, heavy slide gates, gate drag, electrical troubleshooting, or unknown prior modifications. Do not bypass controller protections, limit controls, stop circuits, entrapment protection devices, access control safety inputs, photo eyes, safety edges, or any required safety devices to keep the operator running.
Product Questions & Answers
What is HySecurity MX002210?
HySecurity MX002210 is a gearbox with oil for select HySecurity SlideSmart gate operator drive applications.
What operators use MX002210?
Current Nice HySecurity parts documentation lists MX002210 as the SlideSmart DC / SlideSmart gearbox for SlideSmart HD models. Use it only where the operator parts diagram confirms this gearbox.
Is MX002210 the same as the gearbox pulley?
No. MX002210 is the gearbox. MX002076 is a related 60T gearbox pulley and should not be treated as the same part.
Is MX002210 the same as the drive belt?
No. MX002210 is the gearbox. SlideSmart drive belts such as MX002106 or MX002107 are separate parts and should be verified by model.
Does MX002210 include oil?
The product description indicates gearbox with oil. Verify the oil-filled condition and any oil service requirements before installation.
Why does the description mention #60?
The #60 wording should be checked against the installed gearbox and current parts diagram. Do not confuse it with related 60T pulley, sprocket, chain, or other drive hardware references.
What should be checked before replacing this gearbox?
Check the motor, drive belt, pulleys, sprockets, chain, target sensor, target magnet, mounting hardware, gate rollers, track condition, chain tension, gate movement, and parts diagram before replacing only the gearbox.
