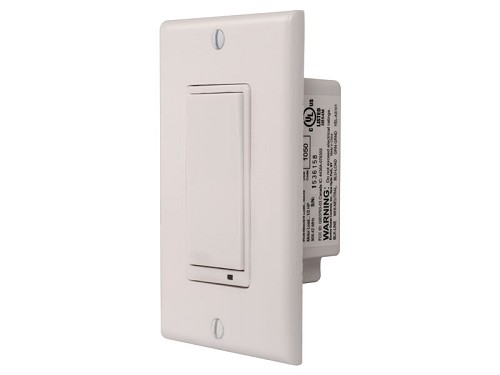

The WT00Z-1 Wall Mount Accessory Dimmer Switch allows remote ON/OFF control and dimming of lights controlled by associated Z-Wave modules, creating virtual 3-way switches. The WT00Z-1 controls no load directly, so it can be wired anywhere power is available, without the need for a traveler wire.
Replaceable Trim Ring
The WT00Z-1 3-Way Wall Mount Accessory Dimmer/Switch has a field replaceable trim ring the color of the device can be altered with the Trim Ring Kit model in black, brown and almond.
- Signal (Frequency): 908.42 MHz
- Load: does not directly control a load. Another Z-Wave device is required.
- Range: Up to 100 feet line of sight between the controller and/or the closest Z-Wave device
- Network-wide inclusion
- Connect up to 5 devices to create virtual 3,4,5,6,7-way operation
- Requires Minimote
- Security beaming
Note to Installers: When installing a Z-Wave 3-Way Light setup utilizing Nortek Security & Control products, you will need a Load Bearing switch (WS15Z-1, WD500Z-1 or WD1000Z-1) and a non-load bearing WT00Z-1. Multiple WT00Z-1 switches can be utilized to control multiple Load Bearing devices. Please refer to the linked Technical Bulletin on Z-Wave 3-Way Light Switch Setup for more information.
Order number: WT00Z-1
