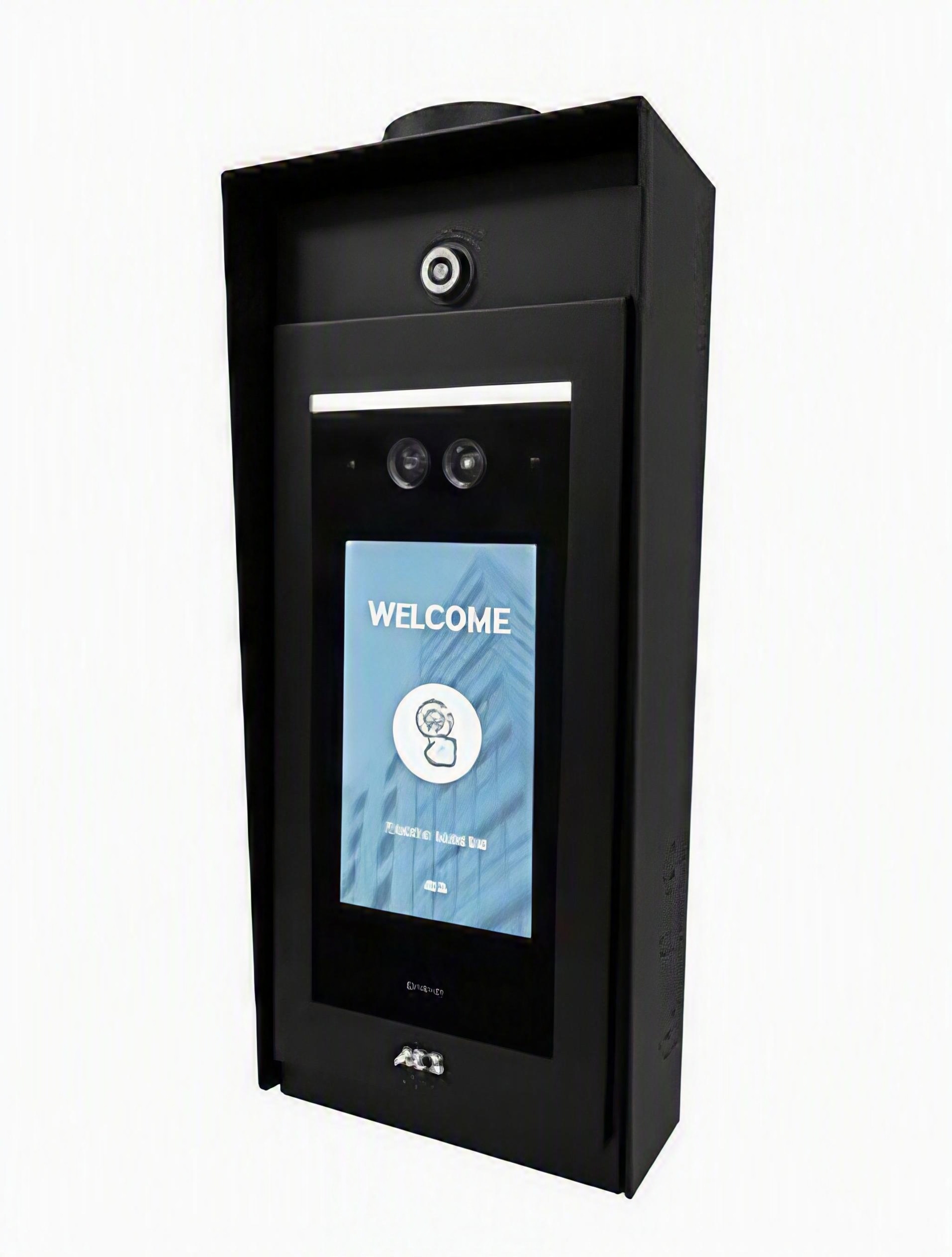

AES OPYN-MULTI-IP-IB-US, Multi Resident IP Video Callbox w/Touchscreen, Powder Coat Imperial. Ethernet Ready. (Vertical Surface Mount)
The AES OPYN-MULTI-IP-IB-US is a surface-mount multi-resident IP video callbox with touchscreen for compatible AES OPYN-MULTI access control and telephone entry applications. It is designed for apartment buildings, condos, gated communities, commercial properties, office buildings, managed residential sites, and other multi-user entry points where visitors need to locate and call residents or authorized users from a touchscreen entry panel.
This model is the IP/Ethernet surface-mount version in the OPYN-MULTI range. The supplied product title identifies it as an Ethernet-ready powder-coated imperial unit with vertical surface-mount style. It should be matched to installations where the site requires a surface-mounted callbox with a wired LAN/Ethernet network connection instead of a 4G cellular model or recessed flush-mount backbox.
The OPYN-MULTI platform is an Android-based touchscreen entry system designed around modern video calling, app management, credential access, QR access, facial recognition, and multi-resident directory use where supported by the installed configuration and active service plan. This page item should be treated as the full IP surface-mount OPYN-MULTI callbox package, not as a monitor, accessory, replacement shell, credential, or keypad-only part.
What This Callbox Does
The OPYN-MULTI-IP-IB-US gives a multi-resident property a touchscreen visitor entry station with IP/Ethernet connectivity. Visitors can use the touchscreen interface to locate residents or authorized contacts, initiate calls, and request access. Property managers and authorized administrators can manage users and access settings through the supported AES OPYN system tools where configured.
- Multi-resident video callbox / telephone entry system
- IP / Ethernet-ready version for sites using a wired network connection
- Surface-mount / imperial-mount design
- Powder-coated imperial enclosure style according to the supplied product title
- Android-based touchscreen OPYN-MULTI platform
- 7-inch touchscreen display commonly associated with OPYN-MULTI
- Supports visitor calling and managed resident/user access where configured
- Commonly used for apartment, condo, HOA, commercial, and managed entry applications
- Not the same as a monitor, credential, replacement shell, or accessory-only item
Common OPYN-MULTI Access Features
Feature availability depends on the installed system, active service plan, credential setup, app setup, network connection, and administrative configuration. Always verify the current AES documentation and service requirements for the installation.
- Touchscreen resident / user directory
- Video calling for visitor verification
- App-based user and site management where supported
- QR code access where configured
- Keypad code access where configured
- Facial recognition access where configured and legally permitted
- Proximity credential access where compatible credentials are used
- Activity log / cloud-based event history where supported by service setup
- Multiple user roles and access permissions where configured
- Relay output control for compatible gate, door, or lock release wiring
Compatible With
The AES OPYN-MULTI-IP-IB-US is intended for OPYN-MULTI multi-resident entry applications where an IP/Ethernet surface-mount callbox is required. It should be used only where the installation, site plan, LAN/network connection, access control wiring, and system management requirements support this model.
- Multi-resident apartment and condo entry applications
- Gated communities and HOA entry points where OPYN-MULTI is supported
- Commercial buildings requiring a touchscreen visitor directory
- Managed access properties requiring resident/user administration
- Locations where the OPYN-MULTI IP surface-mount version is preferred over a 4G cellular or flush-mount version
- Sites with a reliable Ethernet/LAN connection available at the callbox location
- Gate, door, or lock release applications where relay wiring is properly designed and confirmed
Important Compatibility Warning
Do not order this system by appearance alone. The OPYN-MULTI family includes different network and mounting versions. The OPYN-MULTI-IP-IB-US should be matched by part number, IP/Ethernet version, mount style, finish, region, power method, relay needs, and software/service requirements.
- Confirm the exact part number is OPYN-MULTI-IP-IB-US.
- Confirm the site requires the IP/Ethernet version, not the 4G cellular version.
- Confirm the site requires the surface-mount / imperial-mount version, not the flush-mount backbox version.
- Confirm a reliable Ethernet/LAN connection is available at the final mounting location.
- Confirm license, subscription, and management portal requirements before selling or installing.
- Confirm the power method and supplied power accessories before connecting power.
- Confirm relay wiring, gate operator input requirements, door strike/maglock requirements, and fail-safe or fail-secure behavior.
- Confirm credential technology before ordering prox cards, prox tags, or MiFare credentials.
- Confirm local code, fire access, emergency access, and gate safety requirements before connecting access control outputs.
OPYN-MULTI-IP-IB-US Compared With Similar AES Models
| AES Model | General Use | Important Difference |
| OPYN-MULTI-IP-IB-US | IP OPYN-MULTI surface-mount video callbox | This page item; Ethernet-ready version with surface-mount / imperial-mount installation |
| OPYN-MULTI-IP-FB-US | IP OPYN-MULTI flush-mount video callbox | Same IP/Ethernet network style, but recessed flush-mount instead of surface-mount |
| OPYN-MULTI-4G-IB-US | 4G OPYN-MULTI surface-mount video callbox | Same general surface-mount style, but cellular instead of IP/Ethernet |
| OPYN-MULTI-4G-FB-US | 4G OPYN-MULTI flush-mount video callbox | 4G cellular and flush-mount; different network and mount configuration |
| OPYN-MON-US | 7-inch indoor Android touchscreen monitor | Indoor monitor accessory; not the outdoor / entry-side OPYN-MULTI callbox |
| OPYN-MON-10-US | 10-inch indoor Android touchscreen monitor | Indoor monitor accessory; not the OPYN-MULTI entry panel |
| OPYN Pro models | Single-entry or commercial OPYN Pro video intercom applications | Different OPYN family; not the same as OPYN-MULTI multi-resident system |
Similar Parts That Are Not Automatically Interchangeable
- OPYN-MULTI-IP-FB-US: Related IP flush-mount version. It should not be substituted where the project requires surface mounting.
- OPYN-MULTI-4G-IB-US: Related 4G surface-mount version. It should not be substituted where Ethernet/IP connectivity is required.
- OPYN-MULTI-4G-FB-US: Related 4G flush-mount version. It differs in both network method and mounting style.
- OPYN-MON-US and OPYN-MON-10-US: Indoor touchscreen monitors. These are accessories for supported systems and are not the outdoor/entry-side OPYN-MULTI callbox.
- OPYN Pro shell assemblies: OPYN Pro shells are replacement housings for OPYN Pro models and do not replace this OPYN-MULTI callbox.
- AES credentials: MiFare cards, 125 kHz prox tags, and prox cards are credentials only. They do not include the OPYN-MULTI reader or entry system.
- Generic IP intercoms: Similar Ethernet intercoms may not support the OPYN-MULTI app, management portal, user capacity, credential support, or AES service setup.
Not Intended For
- Replacing a standard OPYN single-resident video intercom
- Replacing an OPYN Pro callbox or OPYN Pro shell assembly
- Replacing an OPYN-MON indoor monitor
- Replacing only an Ethernet cable, router, switch, power supply, screen, keypad, credential reader, or control board
- Use where a 4G cellular unit is required instead of an Ethernet-ready IP unit
- Use where a recessed flush-mount backbox is required instead of surface mount
- Installing without confirming LAN availability, network configuration, management portal needs, and site access programming
- Bypassing access control authorization, fire access, emergency access, monitored gate safety devices, or operator safety circuits
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | AES / AES Global |
| Part Number | OPYN-MULTI-IP-IB-US |
| Product Family | OPYN-MULTI / Opyn Multi |
| Product Type | Multi-resident video callbox / telephone entry system / intercom |
| Network Type | IP / Ethernet-ready version; LAN connection required for internet/network connection |
| Mount Style | Surface mount / vertical surface mount / imperial mount according to supplied title and current listing |
| Finish | Powder-coated finish according to the supplied title |
| Display | 7-inch touchscreen commonly listed for OPYN-MULTI |
| System Platform | Android-based OPYN-MULTI touchscreen platform according to AES material |
| Camera | 2 megapixel camera information appears in current specifications; verify exact camera configuration on the current AES sheet before publishing detailed camera count |
| Night Vision | Infrared / night vision features are listed in current specifications |
| Relays | 2 relays commonly listed for OPYN-MULTI; verify wiring and relay ratings before connection |
| Relay Type | N/O and N/C relay support appears in current specifications |
| Credential Frequency | 13.56 MHz MiFare / NFC appears in current specifications; verify credential requirements before ordering cards or tags |
| User Capacity | Up to 10,000 users / apartments / credentials are commonly listed depending on feature type and configuration |
| Access Methods | Touchscreen calling, keypad codes, QR access, facial recognition, and prox credentials where configured and supported |
| Management | OPyn app / management portal functions are commonly associated with OPYN-MULTI; service setup may be required |
| IP Rating | IP65 appears in current specifications; verify final installed rating and sealing requirements during installation |
| Power Note | Current specifications reference 12-15V DC / 48V PoE options; verify supplied power accessories and current AES instructions before connecting |
| Typical Use | Apartment, condo, commercial, HOA, and managed multi-resident entry applications |
Also Known As / Related Part Numbers
- AES OPYN-MULTI-IP-IB-US
- OPYN-MULTI-IP-IB-US
- OPYNMULTIIPIBUS
- AES OPYN Multi IP Surface Mount Callbox
- AES OPYN-MULTI IP Surface-Mount Video Intercom
- AES OPYN-MULTI IP Multi-Resident Video Callbox
- AES OPYN-MULTI IP Powder-Coated Surface Callbox
- AES Multi Resident IP Video Callbox with Touchscreen
- AES Ethernet Ready Multi Resident Video Callbox
- AES OPYN-MULTI IP Vertical Surface Mount
- AES OPYN-MULTI IP Imperial Mount
- OPYN-MULTI-IP-IB - non-US or related listing reference; verify before substitution
- OPYN-MULTI-IP-FB-US - related IP flush-mount version, not the same surface-mount model
- OPYN-MULTI-4G-IB-US - related 4G surface-mount version, not the same IP/Ethernet model
- OPYN-MULTI-4G-FB-US - related 4G flush-mount version, not the same network or mount version
Related Parts and Accessories
- AES MIFARE-PROX-CARD 13.56 MHz MiFare credentials where compatible OPYN-MULTI credential access is required
- AES OPYN-MON-US 7-inch Android touchscreen monitor where a compatible indoor monitor is needed
- AES OPYN-MON-10-US 10-inch Android touchscreen monitor where a larger compatible indoor monitor is required
- AES CAT6BC-2M or CAT6BC-10M patch cables where Ethernet patching is required
- AES IL-POE-PSU-US where a compatible PoE installation requires the correct PoE injector
- Network switches, routers, surge protection, conduit, cable glands, low-voltage power accessories, relay wiring, and mounting hardware where required by site conditions
Technician Note
The biggest field check on this model is the network path. An IP/Ethernet OPYN-MULTI system depends on a reliable LAN connection at the final mounting location. Before installation, confirm cable route, full-copper Ethernet cable quality, switch/router access, IP addressing, firewall/router settings, PoE or DC power method, and internet availability if cloud/app features will be used.
Surface-mount planning is different from flush-mount planning. The installer should confirm the backplate position, cable entry, wall or pedestal strength, conduit path, hinge/key access, service clearance, weather exposure, and future service access before drilling. If the project requires a recessed installation into a wall or pillar, verify whether OPYN-MULTI-IP-FB-US is the correct version instead.
Before Ordering, Confirm
- Confirm the exact part number is OPYN-MULTI-IP-IB-US.
- Confirm the project requires the IP/Ethernet version.
- Confirm the project requires the surface-mount / imperial-mount version.
- Confirm the site does not require OPYN-MULTI-IP-FB-US flush mount instead.
- Confirm the site does not require OPYN-MULTI-4G-IB-US cellular/4G instead.
- Confirm Ethernet/LAN availability at the actual mounting location.
- Confirm router, switch, PoE, firewall, IP addressing, and internet requirements.
- Confirm licensing, subscription, management portal, and user administration requirements.
- Confirm power supply, PoE/DC wiring method, surge protection, and cable routing.
- Confirm relay wiring, gate operator input type, door hardware requirements, and fail-safe/fail-secure behavior.
- Confirm credential type before ordering MiFare cards, prox cards, or prox tags.
- Confirm the property manager or administrator understands user setup, app setup, resident directory management, and credential enrollment.
- Confirm local code, fire access, emergency access, and UL 325 gate safety requirements before connecting to an automated gate.
Installation and Service Notes
- Confirm Ethernet/LAN connection at the final mounting location before installation.
- Plan the surface-mount position before drilling or routing conduit.
- Use a mounting surface that can support the callbox and withstand normal user interaction.
- Keep the service door, lock, hinge, and cable area accessible after installation.
- Use proper sealing, weather protection, conduit, and cable strain relief for outdoor installations.
- Use full copper Ethernet cable for network and PoE connections where required.
- Keep low-voltage communication and relay wiring separated from high-voltage gate operator wiring where practical.
- Use properly rated wiring and surge protection where the site requires it.
- Confirm network connection, IP setup, router/firewall settings, and portal communication before final turnover.
- Set up residents, users, access levels, QR codes, facial IDs, keypad codes, and credentials only through authorized administrative access.
- Test calling, video, audio, app notification, QR access, keypad code access, credential access, relay output, and activity logging where used.
- Confirm that emergency access, fire access, monitored photo eyes, safety edges, loop functions, and operator safety inputs still work after the system is connected.
Professional Advisory
OPYN-MULTI system installation, Ethernet/LAN setup, access control programming, credential enrollment, relay wiring, gate operator integration, and network troubleshooting should be handled by a qualified gate access, low-voltage, network, or access control technician. Do not use OPYN-MULTI programming, relay wiring, credential setup, QR access, facial recognition, or app configuration to bypass monitored photo eyes, safety edges, emergency access equipment, fire access equipment, tenant authorization, or gate operator safety circuits.
Product Questions & Answers
What is the AES OPYN-MULTI-IP-IB-US?
The AES OPYN-MULTI-IP-IB-US is an IP/Ethernet surface-mount multi-resident video callbox with touchscreen for compatible AES OPYN-MULTI access control and telephone entry applications.
Is this the surface-mount OPYN-MULTI model?
Yes. The IB version should be treated as the surface-mount / imperial-mount version. Confirm the project requires surface mounting before ordering, because flush-mount OPYN-MULTI models use a different enclosure style.
Does this model use Ethernet?
Yes. This is the IP/Ethernet-ready version and requires a suitable LAN connection at the installation location. Confirm cable route, network equipment, PoE or power method, and router/firewall requirements before installation.
No. OPYN-MULTI-4G-IB-US is the 4G cellular surface-mount version. OPYN-MULTI-IP-IB-US is the IP/Ethernet surface-mount version.
No. OPYN-MULTI-IP-FB-US is the related IP flush-mount version. OPYN-MULTI-IP-IB-US is the surface-mount / imperial-mount version.
What credential type should be used with OPYN-MULTI?
Current OPYN-MULTI specifications commonly reference 13.56 MHz MiFare / NFC credential support. Confirm the installed reader and system configuration before ordering credentials.
Does this callbox include the indoor monitor?
No. Indoor OPYN monitors such as OPYN-MON-US and OPYN-MON-10-US are separate accessories unless your actual package specifically states otherwise.
Can this unit control a gate or door?
It can be connected to compatible gate, door, or lock release circuits where the relay wiring is properly designed and confirmed. Do not connect it in a way that bypasses required gate safety, emergency access, or fire access equipment.
