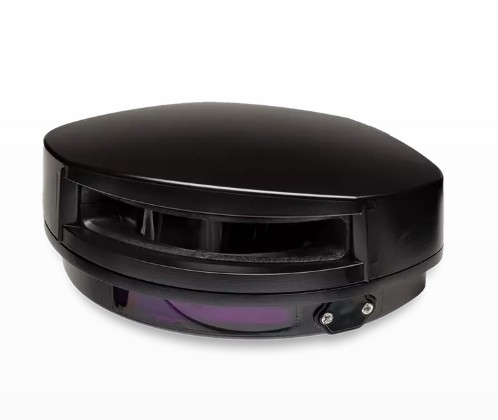

BEA 10LZRFLATSCAN-S, FLATSCAN S
The BEA 10LZRFLATSCAN-S LZR-FLATSCAN S is a compact laser presence sensor used when an automatic industrial door, gate, or barrier needs a defined detection field. Instead of requiring a saw-cut loop in the pavement, the sensor projects a single laser curtain and monitors that field for people or vehicles. This makes it useful on slide gates, swing gates, barrier lanes, high-performance doors, and loading dock openings where cutting the ground is prohibited, impractical, or expensive. The metal IP66 housing and adjustable mounting orientation make it practical for many outdoor or industrial locations. Correct setup is critical. The field size, mounting angle, output logic, power supply, and controller input must match the opening and the intended use. It should not be treated as a universal replacement for every loop detector, photo eye, edge, or monitored safety device.
BEA’s LZR®-FLATSCAN S is a compact, single-curtain,
LASER-based sensor designed for use on automatic industrial
doors, gates, and barriers. Its precise technology ensures
accurate object detection across the 18 ft × 18 ft field, making
it capable of sensing people and vehicles, in both indoor and
outdoor environments.
The LZR®-FLATSCAN S is housed in a robust, IP66 rated,
metal enclosure. It can be installed in outdoor, industrial, and
other harsh environments.
Three visible LED spots provide accurate reference points that
aid in adjusting the tilt angle. Parameter adjustments can only
be made with a BEA UNIVERSAL REMOTE CONTROL.
Inductive Loop Alternative
Virtual presence loop ideal for applications where cutting ground for
loops is prohibited, impossible, or expensive
Versatile Sensor Orientation
Left or right, horizontal or vertical sensor mounting allows for
convenient sensor installation based on application needs
Compact Design
Low-profile solution reduces risk of wear and tear in vehicle applications
Robust Construction
Metal enclosure and IP66 rating protects sensor in harsh environments
Reduce Unwanted Detections
Fog filter and additional immunity settings allow for field adjustments
to mitigate environmental interferences
Technical Specifications
| Technology / Performance |
| Technology |
LASER sensor, time-of-flight measurement |
| Detection Mode |
Presence |
| Maximum Detection Range |
Max. 18’ × 18’ (13 1/8’ @ 5% reflectivity) |
| Opening Angle |
90° |
| Tilt Angles |
±3° (with bracket) |
| Emission Characteristics |
Wavelength 905 nm; max. output pulse power 25 W (CLASS 1)
Wavelength 635 nm; max. output CW power 0.95 mW (CLASS 2), visible spot |
| Angular Resolution |
0.23° (400 spots within 90°) |
| LEDs |
1 tri-colored LED: detection / output status |
| Electrical |
| Supply Voltage* |
12 – 24 VDC ±15% |
| Power Consumption |
= 2.3 W; peak current: 1 A |
| Response Time |
Max. 50 ms (+ output activation delay) |
| Output 1 – Opto |
1 opto (galvanic isolation - polarity free)
Max. switching voltage: 42 VAC/VDC
Max. switching current: 100 mA |
| Output 2 – Relay |
1 relay (free of potential contact)
Max. contact voltage: 42 VAC/VDC
Max. contact current: 1 A (resistive)
Max. switching power: 30 W DC / 60 W AC |
| Physical |
| Dimensions |
5” (L) × 3 1/2” (H) × 2” (D) (without bracket) |
| Color |
Black |
| Protection Degree |
IP66 (IEC 60529) |
| Temperature Range (When Powered) |
-22 – 140 °F (-30 – 60 °C) |
| Humidity |
0 – 95% non-condensing |
| Vibrations |
< 2 G |
| Compliance |
| Compliance |
IEC 60825-1, IEC 60950-1, IEC 61000-6-2, IEC 61000-6-3, IEC 60529:2001 |
Compatible With
- Automatic industrial doors requiring compact laser presence detection
- Sliding gates and swing gates where a virtual presence loop is appropriate
- Barrier arm lanes and vehicle access points
- Loading dock and high-performance door openings
- Applications where pavement cutting for inductive loops is not preferred
- Compatible controllers that accept the sensor output and required monitoring method
- Related accessories: 10FSSMB mounting bracket, 10REMOTE, 10PSMDR2024, 10PSST242
Features and Specifications
| Manufacturer | BEA Sensors |
|---|
| Product Type | Compact laser presence sensor |
|---|
| Part Number | 10LZRFLATSCAN-S |
|---|
| Technology | Laser time-of-flight |
|---|
| Application | Industrial doors, gates, barriers, virtual presence detection |
|---|
| Detection Field | Single curtain, up to approximately 18 ft x 18 ft under specified conditions |
|---|
| Enclosure | Metal housing, IP66 rated |
|---|
| Setup Notes | Mounting bracket and BEA universal remote may be required |
|---|
| Important Note | Match to controller input and safety function |
|---|
Also Known As / Related Part Numbers
- 10LZRFLATSCAN-S
- LZR-FLATSCAN S
- LZR FLATSCAN S
- 10FLATSCAN-S
- BEA Flatscan S
- compact single-curtain laser scanner
- 10FSSMB - related mounting bracket
- 10REMOTE - related setup remote
- 10PSMDR2024 / 10PSST242 - related power supplies
Technician Note
BEA LZR products can look similar but are not interchangeable across all applications. Match the exact sensor family, handed side where applicable, mounting location, wiring, finish, included kit components, and controller requirements before ordering.
Before Ordering Checklist
- Confirm the exact BEA part number on the existing sensor, kit, or system label.
- Verify the application type before ordering: pedestrian swing door, automated window, gate, barrier, or industrial door.
- Check handing, finish color, kit contents, cable/harness condition, and power supply requirements.
- Confirm the controller input, relay logic, and any required monitoring method.
- Do not bypass required safety sensors or entrapment-protection devices during troubleshooting.
Professional Advisory
Laser-based safety and presence sensors should be installed, adjusted, and tested by a qualified automatic door or gate technician. After replacement, the complete system should be safety-tested for proper detection and reliable operation.
Product Questions and Answers
Can this replace an in-ground loop detector?
It may be used as a virtual presence loop in select gate, barrier, or industrial door applications, but the controller and field layout must be verified.
Does it work for both gates and doors?
Yes, it is commonly associated with industrial doors, gates, and barriers when the application supports a laser presence field.
What accessories should be checked?
Check whether the installation requires 10FSSMB, 10REMOTE, and a compatible power supply.
Is it a safety edge replacement?
No. Do not assume it replaces required safety edges, photo eyes, or monitored entrapment protection.
Why does setup matter?
Field size, mounting angle, and programmed detection area directly affect operation and nuisance detections.
