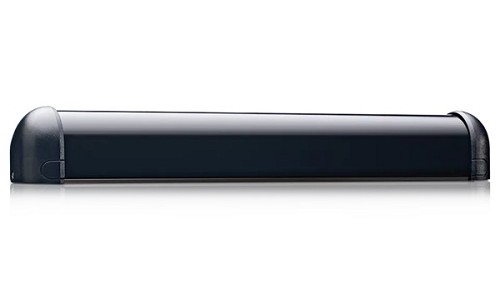

BEA 10SSTI48, SuperScan I, 48" Length 1 Primary
The BEA 10SSTI48 is a SuperScan I primary active infrared presence sensor built for automatic pedestrian door safety and presence detection. This 48 inch version is ordered when the door width, sensor housing, and installed BEA SuperScan I system call for that exact length. Mounted on the door or header area depending on the application, the sensor uses distance-measuring active infrared detection to monitor the area around the moving door and help the operator react while a person or object is in the pattern. In service work, the most common ordering mistakes are choosing the wrong length, confusing primary and secondary units, or substituting a different BEA sensor family by appearance alone.
BEA’s SUPERSCAN-T INDUSTRIAL is an active infrared sensor designed for use in industrial environments that require presence and/or safety detection. This sensor can be used on automatic industrial doors, gates and industrial automation applications.
The SUPERSCAN-T INDUSTRIAL uses triangulation to detect the presence of an object, eliminating false detections caused by varying ground and environmental conditions.
In an industrial setting, this versatile sensor can be mounted stationary or on a moving object. Additionally, the SUPERSCAN-T INDUSTRIAL can be used as an individual module or daisy chained with up to 8 Secondary modules (9 total modules). This flexibility allows the SUPERSCAN-T INDUSTRIAL to be used on both narrow and wide doors and many other off door applications. Each module detection zone can be angled independently.
Fit To The application
Housing available up to 96 inches; can be field-cut to desired door width
User-Defined Detection Zones
Detection zone 24 to 96 inches
Adjustable Detection Zone
Can be set to background analysis mode to reduce the change of false detection from faulty environmental situations
Customizable Hold Time
Relay hold time can be adjusted from 0.1 to 4.5 seconds
Standards Compliant
Capable of external monitoring
Technical Specifications
| Specification | Manufacturer Technical Data |
|---|
| Technology | Active Infrared with background suppression |
|---|
| Detection Mode | Presence |
|---|
| Measurement of Distance | Triangulation |
|---|
| Power Supply | 12 – 24 VAC / VDC ±10% |
|---|
| Output Interface | Relay |
|---|
| Relay Maximum Contact Rating | 1A @ 30 V (resistive) |
|---|
| Detection Range | 0 – 8’ |
|---|
| Distance Adjustment | 2 – 8’ (rotating cam with linear adjustment) |
|---|
| Maximum Mounting Height | 8’ |
|---|
| Detection Signal Duration | Infinite Presence Detection |
|---|
| Detection Time | < 50 ms |
|---|
| Output Hold Time | Potentiometer range: 0.1 – 4.5 s |
|---|
| Operating Temperature Range | -30 – 140 °F |
|---|
| PCB Dimensions – Primary | 10.91" (W) × 1.5" (H) |
|---|
| PCB Dimensions – Secondary | 8.75" (W) × 1.5" (H) |
|---|
| Connector to Door Controller | 8-position screw terminal on Primary PCB |
|---|
| Primary-to-Secondary Connection | Flat-ribbon cable with connectors and key lock |
|---|
| Maximum Number of Secondarys | 8 |
|---|
| Function Selection | Detection mode: NO or NC
Normal mode or Background Analysis mode
|
|---|
Compatible With
- BEA SuperScan I / SuperScan-T style automatic pedestrian door sensor applications
- Automatic swinging doors using compatible door-mounted active infrared presence sensing
- Automatic revolving, folding, and low-energy door applications when the installed system supports this sensor family
- 48 inch door reference door width reference where the 48 inch primary module is specified
- Installations requiring one primary SuperScan I module, with secondary modules ordered separately when needed
Features & Specifications
| Manufacturer | BEA |
|---|
| Product Type | Door-mounted active infrared presence sensor |
|---|
| Part Number | 10SSTI48 |
|---|
| Sensor Family | SuperScan I / SuperScan-T |
|---|
| Application | Automatic pedestrian doors |
|---|
| Module Type | Primary only |
|---|
| Housing Length | 48 inch |
|---|
| Common Door Reference | 48 inch door reference |
|---|
| Detection Technology | Active infrared triangulation / distance measuring |
|---|
| Notes | Match length, primary/secondary configuration, and wiring |
|---|
Also Known As / Related Part Numbers
- 10SSTI48
- 10SSTI-48
- BEA SuperScan I 48 inch primary
- SuperScan I 48 inch
- 10SSTI - related 34.5 inch primary reference
- 10SSTI40 - related 40 inch primary reference
- 10SSTI42 - related 42 inch primary reference
- 10SSTI48 - related 48 inch primary reference
- 10SSTII - related SuperScan II family, not the same part
Technician Note
Match the sensor length and primary/secondary configuration before ordering. A SuperScan I primary module should not be swapped with a secondary module or a different sensor family unless the door system is being redesigned and tested.
Before Ordering
- Confirm the installed BEA part number and housing length.
- Verify the row is for a primary sensor only.
- Check whether the door also uses secondary or slave modules.
- Confirm the door type and door width reference.
- Inspect wiring and harness connections before replacement.
- Perform a complete safety and activation test after adjustment.
Important Ordering Warnings
- Do not assume SuperScan I, SuperScan II, Quadscan, and LZR-FLATSCAN sensors are interchangeable.
- Changing the sensor length can change coverage and may require a new safety setup.
Professional Advisory
Automatic pedestrian door sensors and wireless controls should be installed, adjusted, and tested by a qualified automatic door technician. Do not use an activation sensor as a substitute for required presence, safety, or monitored protection devices.
Product Questions & Answers
What is the 10SSTI48 used for?
The 10SSTI48 SuperScan I is a door-mounted active infrared presence sensor for compatible automatic swinging, revolving, folding, and low-energy door applications.
Is this a primary sensor only?
Yes. The uploaded item is identified as one primary SuperScan I module. Secondary modules or additional housings are separate unless the listing states otherwise.
Can SuperScan I sensors be daisy chained?
SuperScan-T style sensors are commonly used individually or daisy chained with additional slave modules where the door width requires broader coverage.
Is this the same as SuperScan II?
No. SuperScan I and SuperScan II are related BEA sensor families but should not be treated as interchangeable without checking the installed system and wiring.
How do I choose the correct length?
Match the original BEA part number, housing length, and door width reference. A different length can affect mounting, coverage, and appearance.
