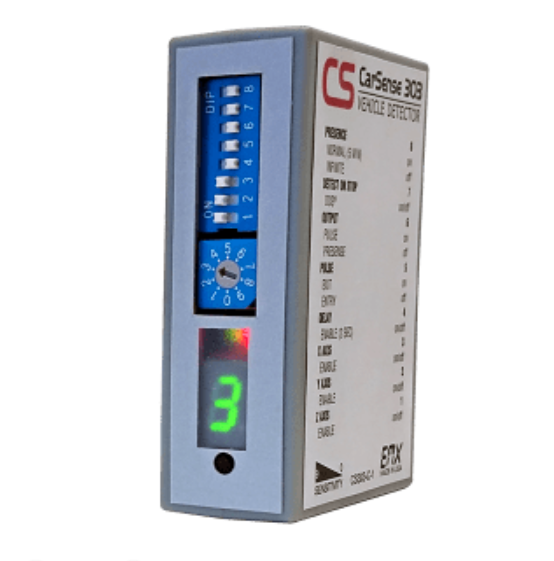

EMX CARSENSE303 MAGNETORESISTIVE VEHICLE DETECTOR - MODULE ONLY
The EMX CarSense 303 control unit is the plug-in brain of the CarSense 303 / LRS vehicle detection system. It works with a compatible magnetoresistive sensor placed near, under, or beside the vehicle path. The sensor measures disturbances in the earths magnetic field caused by ferrous vehicles, while the control unit processes that signal and provides an output to the gate operator, barrier gate, overhead door controller, or access-control system.
This module-only item is useful when the field sensor, lead, and installation location are already correct but the control unit is missing, damaged, or being replaced. It is also used when installers are assembling a system from separate CarSense 303 components, such as a CS303-C1 controller with a CS303-DB direct-burial probe or CS303-FP flat-pack sensor.
The CarSense 303 family is often used as a loop replacement or compact vehicle detector where a full inductive loop is difficult to install. It can be set up for vehicle detection in gates, barrier arms, drive-thrus, car washes, loading docks, and industrial door applications. Correct sensor type, sensor placement, axis settings, relay wiring, and safety-device selection are important for dependable operation.
Compatible With
Use this module with compatible EMX CarSense 303 / LRS sensors and control inputs. It is not a stand-alone detector without the matching sensor.
- CS303-DB-50 direct burial sensor
- CS303-DB-100 direct burial sensor
- CS303-FP-50 flat pack sensor
- CS303-FP-100 flat pack sensor
- CarSense 303 / LRS single-sensor detection systems
- CS303-L or LRS-LC logic interface applications when the system design requires expanded logic
- Boom gate and parking arm control
- Drive-thru, car wash, vehicle counting, industrial gate, overhead door, and loading dock detection
- Gate operators or access-control panels using compatible relay or NPN detector outputs
Features & Specifications
| Manufacturer | EMX Industries |
|---|
| Product Type | CarSense 303 control unit module |
|---|
| Part Number | CS303-C1 |
|---|
| Application | Loop replacement / magnetoresistive vehicle detection control |
|---|
| Compatible Sensors | CS303-DB direct burial and CS303-FP flat pack sensors |
|---|
| Power | 12-30 VDC and 24 VAC commonly listed for CS303 control unit |
|---|
| Outputs | SPDT relay and NPN/open collector output references |
|---|
| Connection | 10-position screw terminal style controller reference |
|---|
| Features | 3-axis sensor setup, ULTRAMETER sensitivity display, DETECT-ON-STOP feature where applicable |
|---|
| Included Components | Control unit module only |
|---|
| Notes | Sensor probe or flat pack may be required separately |
|---|
Also Known As / Related Part Numbers
- CS303-C1
- CS303-C1
- CS303-C-1
- CarSense 303 C1
- CarSense303 control unit
- LRS-C1
- LRS C1
- Loop Replacement System controller
- CS303 control module
- CS303 controller
Technician Note
Do not order the module only if the buried sensor or flat-pack sensor is damaged. The CS303 system depends on the controller and the correct sensor working together, and the sensor type should match the parts diagram or original installation design.
Before Ordering
- Confirm the existing sensor is a CS303 / LRS compatible sensor.
- Identify whether the site uses direct-burial DB or flat-pack FP sensing hardware.
- Verify the control unit power supply and output wiring.
- Check whether the site requires basic single-sensor output or a logic interface for two-sensor functions.
- Confirm the gate or barrier operator safety devices remain connected and working.
- Retest vehicle detection after replacing the controller.
Important Ordering Warnings
- This is not a complete kit by itself.
- It is not intended for EMX CS101 or VMD202 detector systems.
- Do not use vehicle detection wiring changes to bypass required monitored photo eyes or safety edges.
Professional Advisory
Vehicle detection accessories should be wired and tested with the full operator safety system in place. Use a qualified gate technician for unclear controller wiring or unsafe gate behavior.
Product Questions & Answers
Does the CS303-C1 include the buried sensor?
No. This row is for the control unit module only. A compatible CS303 direct-burial or flat-pack sensor is required for a working detection system.
Which sensors work with the CS303 control unit?
It is used with compatible CS303-DB direct burial sensors and CS303-FP flat pack sensors in the CarSense 303 / LRS family.
Is this the same as the LRS-C1 controller?
CS303-C1 and LRS-C1 are commonly associated references for the CarSense 303 / Loop Replacement System control unit family. Confirm the exact label and system generation before ordering.
Can this controller be used for a barrier gate?
Yes, it is commonly used in barrier, parking, drive-thru, and access-control detection applications when the connected sensor and output wiring are correct.
Do I need the CS303-L or LRS-LC logic interface too?
Only if the installation requires expanded logic functions such as two-sensor directionality, pulse on entry, pulse on exit, or common relay operation. Basic single-sensor installations may not require it.
