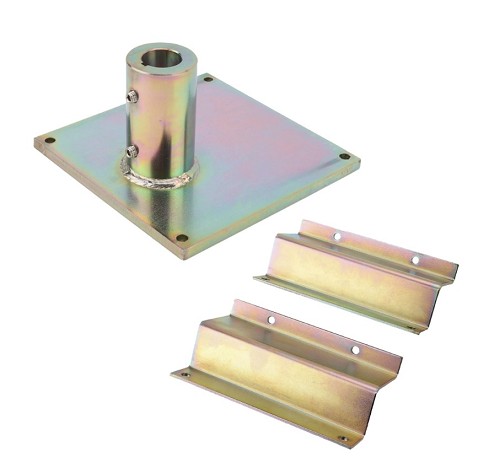

HySecurity MX001043-P, BRACKET & CLAMPS, FG ARM
HySecurity MX001043-P is a side-mount bracket and clamp kit for select HySecurity StrongArm barrier gate operator applications using a 1-3/4 inch x 4-3/4 inch fiberglass barrier arm. Related base part MX001043 is commonly listed as a bracket and clamp set used to attach side-mounted fiberglass arms.
The "-P" suffix may indicate a packaged service part or current kit version. Because StrongArm arm hardware can vary by arm material, arm size, mounting style, arm length, counterweight setup, and operator configuration, this part should be selected only after confirming the operator model, arm type, and HySecurity parts diagram.
What This Bracket and Clamp Kit Does
The bracket and clamps secure a side-mounted fiberglass barrier arm to the approved StrongArm arm hardware arrangement. Current listings for the related MX001043 base part describe the hardware as designed for 1-3/4 inch x 4-3/4 inch fiberglass arms and note that it can mount on either the left or right side where the operator configuration allows it.
A damaged, loose, missing, or incorrect bracket and clamp set can cause poor arm alignment, arm movement, vibration, loose hardware, uneven barrier arm operation, or damage after an impact. Similar symptoms can also be caused by a cracked fiberglass arm, worn yoke hardware, damaged breakaway hardware, incorrect counterweight setup, loose fasteners, cabinet-side arm mount damage, or prior non-factory repairs.
Compatible With
Use HySecurity MX001043-P only where the operator parts diagram, original arm hardware, or HySecurity documentation confirms this part number or the approved related base part number MX001043.
- Select HySecurity StrongArm barrier gate operator applications using side-mounted 1-3/4 inch x 4-3/4 inch fiberglass arms.
- StrongArm arm hardware repairs where MX001043-P or MX001043 is listed as the bracket and clamp set for fiberglass arm mounting.
- Applications where the arm material is fiberglass and the arm size and side-mount configuration match the HySecurity parts diagram.
- Left- or right-side side-mount fiberglass arm installations where the parts diagram confirms this bracket and clamp kit.
- Repairs where the original bracket and clamp hardware is marked, listed, or cross-referenced as HySecurity MX001043-P or MX001043.
Important Compatibility Warning
Do not order MX001043-P based only on the word "bracket" or "clamps." This kit is associated with side-mounted fiberglass arm hardware. HySecurity uses different bracket and clamp kits for fiberglass, aluminum, and wood arms, and different yoke or counterweight hardware may be used depending on arm length and configuration.
Do not substitute this kit for aluminum arm brackets, wood arm brackets, yoke brackets, breakaway brackets, or shear bolt hardware unless the HySecurity parts diagram confirms the same part number. The wrong bracket or clamp set can create an unsafe arm mounting condition or damage the barrier arm system.
Similar Parts That Are Not Automatically Interchangeable
- HySecurity MX001043 - related base part number for side-mount fiberglass arm bracket and clamps; verify package relationship before substituting for MX001043-P.
- mx001090-p-side-mount-bracket-clamps-aluminum-arm.html">HySecurity MX001090 - side-mount bracket and clamps for aluminum arms; not the same as MX001043-P.
- mx001044-side-mount-bracket-clamps-wood-arm.html">HySecurity MX001044 - side-mount bracket and clamps for wood arms; not the same as MX001043-P.
- HySecurity MX001046 - bracket and yoke, counterweight type; not the same as this side-mount fiberglass arm bracket kit.
- HySecurity MX001047 - bracket and yoke, non-counterweight type; not the same as this side-mount fiberglass arm bracket kit.
- mx3346-arm-sleeve-strongarmdot-28.html">HySecurity MX3346 - arm sleeve for StrongArmDOT 28; not the same as this bracket and clamp kit.
- HySecurity MX4202 - breakaway arm bracket for StrongArmDOT 28; not the same as this bracket and clamp kit.
- mx4203-shear-bolt-assembly-strongarmdot-28.html">HySecurity MX4203 - shear bolt assembly for StrongArmDOT 28; not the same as this bracket and clamp kit.
- HySecurity MX000566 - barrier arm counterweight; not the same as this bracket and clamp kit.
- HySecurity MX4057 and MX4402 - kill switch / LED harness related parts; not the same as this mechanical bracket kit.
Not Intended For
- Aluminum barrier arm mounting unless the parts diagram specifically lists MX001043-P.
- Wood barrier arm mounting unless the parts diagram specifically lists MX001043-P.
- Yoke-mounted arm configurations that require bracket and yoke hardware.
- Counterweight bracket or yoke replacement.
- StrongArmDOT 28 breakaway bracket, shear bolt, or arm sleeve replacement.
- Complete barrier arm replacement.
- Kill switch, LED light harness, controller, gearbox, motor, or cabinet repairs.
- Any arm installation using non-standard or modified mounting hardware not shown in the HySecurity parts diagram.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX001043-P |
| Related Base Part Number | MX001043, verify package relationship before substituting |
| Product Type | Side-mount bracket and clamp kit |
| Arm Material | Fiberglass arm applications where specified |
| Arm Size | 1-3/4 inch x 4-3/4 inch fiberglass arm, based on related MX001043 listings |
| Mounting Style | Side mount, left or right where approved by operator configuration |
| Common Application | Select HySecurity StrongArm side-mounted fiberglass arm applications |
| Electrical Rating | Not applicable - mechanical arm mounting hardware |
| Package Contents | Verify current package contents before ordering; related bolts, spacers, arm hardware, counterweights, and accessories may be separate unless stated |
Also Known As / Related Part Numbers
- MX001043-P
- MX001043P
- HySecurity MX001043-P
- Nice HySecurity MX001043-P
- HYS-MX001043-P
- HYS-MX001043P
- MX001043 - related base part number; verify package relationship before substituting
- HYS-MX001043 - related distributor SKU format; verify before substituting
- HySecurity bracket and clamps, fiberglass arm
- HySecurity bracket and clamps, side mount, fiberglass
- HySecurity StrongArm bracket and clamps fiberglass
- Side-mount bracket and clamp hardware kit for fiberglass arm
- Bracket and clamps to attach side-mounted 1-3/4 inch x 4-3/4 inch fiberglass arm
- MX001090 - related aluminum arm bracket and clamps; not the same part
- MX001044 - related wood arm bracket and clamps; not the same part
Related Parts and Accessories
The correct related parts depend on the installed StrongArm model, arm material, arm length, mounting style, and the reason the bracket and clamps are being replaced. Inspect the full arm mounting area before ordering only this kit.
- MX001090 side-mount bracket and clamps for aluminum arms - related but not the same part.
- MX001044 side-mount bracket and clamps for wood arms - related but not the same part.
- MX001046 bracket and yoke, counterweight type - used in different yoke/counterweight configurations.
- MX001047 bracket and yoke, non-counterweight type - used in different yoke-mounted configurations.
- Fiberglass barrier arm sections - verify arm material and dimensions before ordering bracket hardware.
- Counterweights and counterweight mounts - may be required depending on arm length and configuration.
- LED light and kill switch harness components - separate accessories used on some barrier arm assemblies.
Technician Note
Before replacing MX001043-P, inspect the fiberglass barrier arm, bracket faces, clamps, bolts, arm mounting surface, and cabinet-side arm hardware. If the arm was struck or the bracket is loose, check for cracked fiberglass, crushed arm material, elongated holes, damaged clamp surfaces, missing fasteners, counterweight imbalance, and non-factory modifications.
Do not mix bracket hardware for fiberglass, aluminum, and wood arms unless the parts diagram confirms the same hardware. Different arm materials may require different clamp surfaces, load distribution, and mounting hardware.
Before Ordering, Confirm
- The required part number is MX001043-P or the approved related base number MX001043.
- The operator is a HySecurity StrongArm application using side-mounted fiberglass arm hardware.
- The barrier arm is a 1-3/4 inch x 4-3/4 inch fiberglass arm where the parts diagram confirms this kit.
- The repair requires the side-mount bracket and clamps, not a yoke bracket, counterweight bracket, breakaway bracket, arm sleeve, or complete arm.
- The arm is not aluminum, wood, or another material requiring a different bracket kit.
- The side-mount orientation and left/right configuration match the operator setup.
- The arm, counterweight setup, fasteners, brackets, and mounting points are not damaged beyond bracket replacement.
- The package includes the expected bracket and clamps, or any additional fasteners are ordered separately if required.
Installation and Service Notes
- Secure the barrier arm before servicing arm mounting hardware.
- Do not work under an unsupported arm or counterweight-loaded arm assembly.
- Use the correct bracket and clamp kit for fiberglass arm material.
- Do not substitute aluminum, wood, or generic clamp hardware for fiberglass arm mounting unless the parts diagram confirms it.
- Confirm arm alignment and side-mount position before tightening hardware.
- After service, verify arm balance, mounting security, normal barrier movement, and all required safety devices.
- Inspect any kill switch, LED harness, and access control safety wiring if the arm was hit or moved during repair.
Professional Advisory
StrongArm arm mounting hardware should be serviced by a qualified gate technician when the repair follows an impact, arm drop, counterweight issue, bracket damage, structural damage, wiring damage, or unknown prior modification. Do not bypass breakaway switches, kill switches, controller protections, arm safety systems, access control safety inputs, or any required safety devices to keep the operator running.
Product Questions & Answers
What is HySecurity MX001043-P?
HySecurity MX001043-P is a side-mount bracket and clamp kit for select HySecurity StrongArm barrier gate operator applications using fiberglass arms.
What size fiberglass arm is this bracket kit commonly used with?
Related MX001043 listings describe this bracket and clamp hardware as used to attach a side-mounted 1-3/4 inch x 4-3/4 inch fiberglass arm.
Is MX001043-P the same as MX001043?
MX001043 appears to be the related base part number, while MX001043-P may indicate a packaged service version. Verify the current package contents and parts diagram before substituting one for the other.
Can this bracket kit be used with aluminum or wood arms?
No, not unless the parts diagram specifically confirms it. HySecurity lists separate bracket and clamp kits for aluminum and wood arms, so the fiberglass arm bracket kit should not be substituted by arm material alone.
Can the bracket mount on either side?
Current listings for the related MX001043 part state that the bracket and clamps can mount either left or right where the operator configuration allows it. Confirm the side-mount arrangement before installation.
Is this the complete barrier arm?
No. MX001043-P is the bracket and clamp hardware. The fiberglass barrier arm, counterweights, yokes, kill switch kit, LED harness, and other arm hardware may be separate.
What should be checked before replacing this bracket and clamp kit?
Inspect the arm material, arm size, mounting points, clamps, bolts, counterweight setup, bracket faces, and any damage from impact or prior repairs before replacing only the bracket kit.
