HySecurity MX001220, SHAFT& PLATE 1" HD ROLLER, SR
HySecurity MX001220 is a 1 inch heavy-duty roller upgrade shaft kit for select HySecurity SwingRiser hydraulic gate operator applications. It is commonly used when the SwingRiser roller shaft area is being upgraded from a 5/8 inch roller shaft arrangement to a stronger 1 inch heavy-duty roller setup.

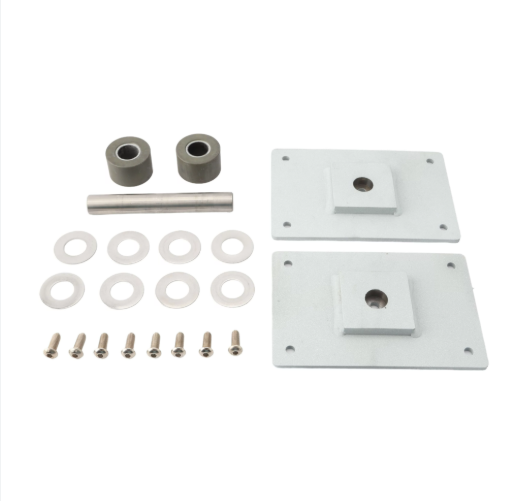

This part is commonly described as a shaft and plate 1 inch heavy-duty roller kit for SR, or SwingRiser. Related product descriptions identify the kit as including bearings, two cover plates, and hardware. Because SwingRiser operators use load-bearing roller assemblies in a heavy hydraulic lift-and-swing mechanism, this kit should be selected only after confirming the operator model, serial number, existing shaft size, and parts diagram.
What This Upgrade Shaft Kit Does
The MX001220 kit is used to upgrade the roller shaft area on select SwingRiser operators from a smaller 5/8 inch roller shaft setup to a 1 inch heavy-duty roller shaft setup. This can help address roller shaft wear concerns when the operator is approved for the upgrade and the correct related hardware is installed.
The roller shaft area supports movement load as the SwingRiser raises and swings the gate leaf during operation. Worn shafts, worn bearings, damaged rollers, loose cover plates, or incorrect hardware can cause noise, uneven motion, binding, wobble, or accelerated wear. Replacing or upgrading the shaft kit should include a full inspection of the surrounding roller assembly and gate movement.
Compatible With
Use HySecurity MX001220 only where the operator parts diagram, HySecurity documentation, or original service information confirms this upgrade kit.
- Select HySecurity SwingRiser applications where MX001220 is listed as the 1 inch heavy-duty roller upgrade shaft kit.
- Select SwingRiser repairs where the existing roller shaft setup is being converted from 5/8 inch to 1 inch using the approved HySecurity kit.
- Applications where the operator parts diagram confirms the shaft, cover plate, bearing, and hardware arrangement for MX001220.
- Repairs involving the SwingRiser roller shaft area where the correct upgrade kit and package contents have been verified.
Possible SwingRiser Model Family Use
HySecurity SwingRiser model families include multiple versions and configurations. Verify fitment before ordering for any of the following model families:
- HySecurity SwingRiser 14 where the parts diagram lists MX001220.
- HySecurity SwingRiser 14 Twin where the parts diagram lists MX001220.
- HySecurity SwingRiser 19 where the parts diagram lists MX001220.
- HySecurity SwingRiser 19 Twin where the parts diagram lists MX001220.
- HySecurity SwingRiser 30 where the parts diagram lists MX001220.
- HySecurity SwingRiser 30 Twin where the parts diagram lists MX001220.
Important Compatibility Warning
MX001220 should not be treated as the same part as every SwingRiser roller shaft. This part is commonly described as an upgrade shaft kit that converts a 5/8 inch roller shaft arrangement to a 1 inch heavy-duty roller arrangement. That means the correct bearings, cover plates, hardware, roller fit, and mounting locations are important.
Do not substitute MX001220 for mx001221-p-heavy-duty-roller-shaft-swingriser.html">MX001221-P, MX001221, or any other roller shaft part unless the HySecurity parts diagram or service documentation confirms the substitution. Similar-looking shafts and plates may not fit correctly, may not support the same load, or may not align with the existing roller and bearing arrangement.
Similar Parts That Are Not Automatically Interchangeable
- mx001221-p-heavy-duty-roller-shaft-swingriser.html">mx001221-p-heavy-duty-roller-shaft-swingriser.html">mx001221-p-heavy-duty-roller-shaft-swingriser.html">mx001221-p-heavy-duty-roller-shaft-swingriser.html">HySecurity MX001221-P - commonly listed as a 1 inch heavy-duty roller shaft for SwingRiser; related but not automatically the same as MX001220.
- mx001221-p-heavy-duty-roller-shaft-swingriser.html">HySecurity MX001221 - commonly shown in related listings as a 1 inch shaft kit with heavy-duty rollers and bearings; verify before substituting.
- 5/8 inch SwingRiser roller shaft parts - may be the original setup being upgraded, but they are not the same as this 1 inch kit.
- Individual rollers or bearings - may be separate service parts and should not be confused with the complete upgrade kit.
- Cover plates and hardware - may vary by kit and operator generation.
Not Intended For
- SlideDriver, SlideSmart, StrongArm, HydraSwing, HydraLift, or HydraWedge operators unless the parts diagram specifically lists MX001220.
- Repairs that require only an individual roller, bearing, or shaft when the complete upgrade kit is not needed.
- Hydraulic cylinder pin replacement.
- Limit switch, reset switch, disconnect switch, sensor, or controller repairs.
- Repairs where the roller shaft problem is caused by gate misalignment, frame damage, worn mounting points, or an unsupported prior modification.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX001220 |
| Product Type | Heavy-duty roller upgrade shaft kit |
| Common Description | Shaft and plate 1 inch heavy-duty roller, SR |
| Upgrade Function | Converts select 5/8 inch SwingRiser roller shaft setups to 1 inch heavy-duty roller setup where specified |
| Shaft Size | 1 inch heavy-duty roller shaft arrangement |
| Common Application | Select HySecurity SwingRiser roller shaft upgrade applications |
| Operator Family | SwingRiser, where listed by parts diagram |
| Commonly Listed Kit Contents | Bearings, two cover plates, and hardware; verify current package contents before ordering |
| Electrical Rating | Not applicable - mechanical shaft and hardware kit |
| Hydraulic Rating | Not a hydraulic pressure component, but used on a hydraulic SwingRiser operator mechanism |
Also Known As / Related Part Numbers
- MX001220
- HySecurity MX001220
- Nice HySecurity MX001220
- HYS-MX001220
- HYS-mx001220
- HySecurity shaft and plate 1 inch heavy-duty roller, SR
- Shaft& Plate 1 inch HD Roller, SR
- Shaft and Plate 1 inch Heavy Duty Roller, SwingRiser
- HySecurity 1 inch heavy-duty roller upgrade shaft kit
- HySecurity SwingRiser 1 inch roller upgrade shaft kit
- mx001221-p-heavy-duty-roller-shaft-swingriser.html">MX001221-P - related 1 inch heavy-duty roller shaft; not automatically the same part
- MX001221 - related shaft kit listing; verify before substituting
Related Parts and Accessories
The correct related parts depend on the exact SwingRiser model, existing roller shaft arrangement, and whether the operator has already been upgraded. Inspect the complete roller assembly before ordering replacement parts.
- mx001221-p-heavy-duty-roller-shaft-swingriser.html">MX001221-P 1 inch heavy-duty roller shaft - related part, not automatically interchangeable with MX001220.
- MX001221 shaft kit with heavy-duty rollers and bearings - related listing, verify relationship before substituting.
- Heavy-duty rollers - may be included with some kit configurations or may be separate depending on the repair.
- Bearings - commonly included with this upgrade kit, but verify package contents.
- Cover plates - commonly listed as part of the kit; verify quantity and current packaging.
- Spacers, washers, clips, and retaining hardware - inspect and replace where required by the parts diagram.
Technician Note
MX001220 is best treated as an upgrade kit, not just a single loose shaft. Before installing it, inspect the existing roller shaft size, roller condition, bearing bores, cover plates, mounting surfaces, and surrounding frame area. If the original 5/8 inch setup is worn due to misalignment, a damaged gate, or structural wear, installing the upgrade kit without correcting the cause may lead to continued noise or premature wear.
Symptoms that may lead a technician to inspect this kit include roller wobble, noisy travel, uneven lifting, loose shaft hardware, worn 5/8 inch shaft components, bearing noise, or visible wear around the roller support area. Similar symptoms can also be caused by gate alignment problems, hydraulic movement issues, damaged rollers, bent mounting plates, or previous non-factory modifications.
Before Ordering, Confirm
- The required part number is MX001220.
- The operator is a HySecurity SwingRiser model that lists this upgrade kit.
- The operator model and serial number match the parts diagram being used.
- The existing roller shaft setup is 5/8 inch if the repair is an upgrade conversion.
- The repair requires the 1 inch heavy-duty roller upgrade kit, not only an individual shaft.
- The package includes the expected bearings, two cover plates, and hardware.
- The rollers, bearings, cover plate area, spacers, and retaining hardware are inspected for wear.
- The gate is not binding, sagging, misaligned, or causing abnormal load on the roller shaft area.
Installation and Service Notes
- Secure the gate and operator before servicing the SwingRiser roller shaft area.
- Do not work around an unsupported gate leaf or loaded lift mechanism.
- Confirm the original shaft size and upgrade requirements before disassembly.
- Inspect the old shaft, rollers, bearings, plates, and hardware for wear patterns.
- Do not mix incompatible 5/8 inch and 1 inch roller shaft components.
- Replace worn retaining hardware, spacers, or mounting components where required.
- After service, verify smooth roller movement, proper gate travel, and safe operator operation.
Professional Advisory
SwingRiser operators are heavy-duty hydraulic gate systems with large moving parts and load-bearing roller assemblies. A qualified gate technician is recommended for roller shaft upgrades, hydraulic movement problems, heavy gate handling, travel setup, structural alignment issues, or unknown prior modifications. Do not bypass safety devices, limit controls, hydraulic protections, or entrapment protection devices to test operation.
Product Questions & Answers
What is HySecurity MX001220 used for?
HySecurity MX001220 is commonly used as a 1 inch heavy-duty roller upgrade shaft kit for select SwingRiser gate operator applications. It is used where the parts diagram confirms the 1 inch roller shaft upgrade kit.
Does MX001220 convert a 5/8 inch roller shaft setup to 1 inch?
Yes. MX001220 is commonly described as an upgrade kit that converts select 5/8 inch SwingRiser roller shaft arrangements to a 1 inch heavy-duty roller setup where specified.
What is included with the MX001220 kit?
Current listings commonly describe MX001220 as including bearings, two cover plates, and hardware. Package contents should still be verified before ordering because packaging can change.
Is MX001220 the same as mx001221-p-heavy-duty-roller-shaft-swingriser.html">MX001221-P?
No. MX001220 is commonly listed as a 1 inch roller upgrade shaft kit, while mx001221-p-heavy-duty-roller-shaft-swingriser.html">MX001221-P is commonly listed as a 1 inch heavy-duty roller shaft. They are related SwingRiser roller parts but should not be treated as the same part unless the parts diagram confirms interchangeability.
Can this kit be used on all HySecurity SwingRiser models?
No. It should only be used on SwingRiser models where the parts diagram or HySecurity documentation lists MX001220 for that operator and roller shaft arrangement.
What symptoms may indicate the roller shaft area needs service?
Possible symptoms include roller wobble, noisy travel, uneven lifting, bearing noise, visible shaft wear, loose shaft hardware, or binding at the roller area. Similar symptoms can also come from gate alignment issues, worn rollers, hydraulic problems, or structural damage.
Should a professional install MX001220?
Yes. A qualified gate technician is recommended because SwingRiser roller shaft work involves a heavy hydraulic gate operator mechanism, load-bearing parts, and proper gate support during service.
