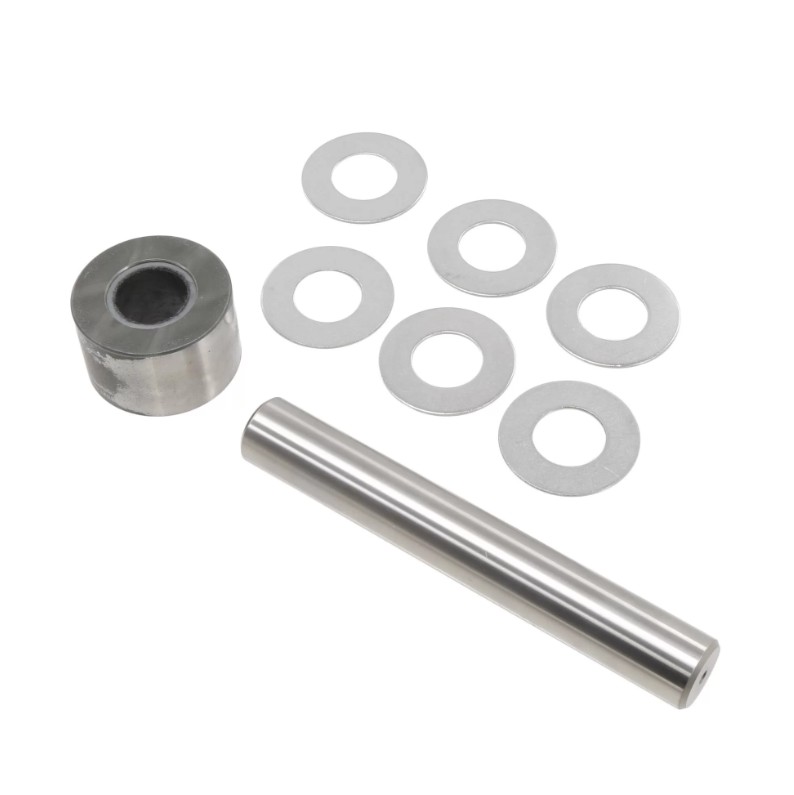

HySecurity MX001221-P, SHAFT, 1" HEAVY DUTY ROLLER,SR
HySecurity MX001221-P is a 1 inch heavy-duty roller shaft associated with select HySecurity SwingRiser gate operator applications. This part is used in the roller and shaft area of the SwingRiser lift-and-swing mechanism where the operator parts diagram identifies MX001221-P as the correct replacement part.
SwingRiser operators use a heavy-duty hydraulic lift-and-swing design, so roller shafts, bearings, roller hardware, and mounting points must be matched carefully. This part should not be selected by shaft diameter alone. Always confirm the exact operator model, serial number, parts diagram, and package contents before ordering.
What This Roller Shaft Does
The heavy-duty roller shaft supports the roller assembly used in the SwingRiser mechanism. During operation, the SwingRiser raises and swings the gate leaf, placing load on the roller, bearing, shaft, and related support hardware. A worn, bent, damaged, or incorrectly sized shaft can lead to uneven movement, binding, noise, roller misalignment, bearing wear, or premature wear on nearby parts.
If this shaft is being replaced due to wear or damage, the rollers, bearings, mounting plates, retaining hardware, and surrounding structure should be inspected at the same time. Installing a new shaft into worn bearings or damaged support hardware may not correct the original problem.
Compatible With
Use HySecurity MX001221-P only where the operator parts diagram, original part marking, or HySecurity documentation confirms this part number.
- Select HySecurity SwingRiser applications where MX001221-P is listed as the 1 inch heavy-duty roller shaft.
- Select SwingRiser roller shaft repairs where the original part is marked, listed, or cross-referenced as MX001221-P.
- Applications where the HySecurity parts diagram confirms the 1 inch heavy-duty roller shaft arrangement.
- Repairs involving the SwingRiser roller and shaft area where the correct part number and package contents have been verified.
Possible SwingRiser Model Family Use
HySecurity SwingRiser model families include multiple configurations, and the correct roller shaft part may depend on the model, generation, and parts diagram. Verify fitment before ordering for any of the following model families:
- HySecurity SwingRiser 14 where the parts diagram lists this part number.
- HySecurity SwingRiser 14 Twin where the parts diagram lists this part number.
- HySecurity SwingRiser 19 where the parts diagram lists this part number.
- HySecurity SwingRiser 19 Twin where the parts diagram lists this part number.
- HySecurity SwingRiser 30 where the parts diagram lists this part number.
- HySecurity SwingRiser 30 Twin where the parts diagram lists this part number.
Important Compatibility Warning
MX001221-P should not be confused with every 1 inch roller shaft or every SwingRiser roller kit. The "-P" suffix may indicate a packaged service part, while related listings may show MX001221 without the suffix. Another related part, MX001220, is commonly described as a 1 inch heavy-duty roller upgrade shaft kit. These parts may be related, but they should not be treated as the same part unless the parts diagram or HySecurity documentation confirms interchangeability.
Roller shafts, rollers, bearings, cover plates, spacers, and mounting hardware may vary by operator generation and kit configuration. Confirm whether the repair requires the shaft only, a shaft kit with rollers and bearings, or an upgrade kit before ordering.
Similar Parts That Are Not Automatically Interchangeable
- HySecurity MX001221 - commonly shown as a 1 inch shaft kit with heavy-duty rollers and bearings for SwingRiser; verify whether this is the same package as MX001221-P before substituting.
- mx001220-heavy-duty-roller-upgrade-shaft-kit-swingriser.html">HySecurity MX001220 - commonly described as a 1 inch heavy-duty roller upgrade shaft kit for SwingRiser; not automatically the same as MX001221-P.
- 5/8 inch roller shaft parts - not interchangeable with 1 inch heavy-duty roller shaft parts unless the operator is being properly upgraded with the correct kit.
- Individual rollers or bearings - may be separate from the shaft depending on the package.
- Cover plates, spacers, and retaining hardware - may not be included unless specified by the current package.
Not Intended For
- SlideDriver, SlideSmart, StrongArm, HydraSwing, HydraLift, or HydraWedge operators unless the parts diagram specifically lists MX001221-P.
- 5/8 inch roller shaft repairs unless the correct 1 inch upgrade kit is being installed where approved.
- Hydraulic cylinder pin replacement.
- Limit switch, reset switch, disconnect switch, sensor, or controller repairs.
- Repairs where the roller shaft damage is caused by a bent frame, worn bearing bore, gate misalignment, or structural damage that has not been corrected.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX001221-P |
| Related Base Part Number | MX001221, verify package relationship before substituting |
| Product Type | Heavy-duty roller shaft |
| Shaft Size | 1 inch |
| Common Application | Select HySecurity SwingRiser roller shaft applications |
| Operator Family | SwingRiser, where listed by parts diagram |
| Electrical Rating | Not applicable - mechanical shaft component |
| Hydraulic Rating | Not a hydraulic pressure component, but used on a hydraulic SwingRiser operator mechanism |
| Package Contents | Verify before ordering; related listings may describe a shaft kit with rollers and bearings |
Also Known As / Related Part Numbers
- MX001221-P
- MX001221P
- HySecurity MX001221-P
- Nice HySecurity MX001221-P
- HySecurity shaft, 1 inch heavy duty roller, SR
- HySecurity 1 inch heavy duty roller shaft for SwingRiser
- SwingRiser 1 inch heavy duty roller shaft
- Shaft, 1 inch Heavy Duty Roller, SR
- HYS-MX001221-P
- HYS-MX001221P
- MX001221 - related base part number; verify before substituting
- HYS-MX001221 - related distributor SKU format; verify before substituting
- MX001220 - related 1 inch roller upgrade shaft kit; not automatically the same part
- HYS-MX001220 - related distributor SKU format; not automatically the same part
Related Parts and Accessories
The correct related parts depend on the exact SwingRiser model, serial number, and roller shaft assembly. Inspect the complete roller area before ordering only the shaft.
- Heavy-duty rollers - may be included in some kits, but verify package contents.
- Bearings - commonly serviced with roller shaft repairs when worn or noisy.
- Cover plates - may be part of certain upgrade or shaft kit configurations.
- Spacers, washers, clips, and retaining hardware - verify whether these are included or sold separately.
- MX001220 1 inch roller upgrade shaft kit - related upgrade part, not automatically interchangeable with MX001221-P.
- MX001221 shaft kit with heavy-duty rollers and bearings - related listing, verify relationship to MX001221-P.
Technician Note
When replacing a roller shaft on a SwingRiser, inspect more than the shaft itself. Look for worn bearings, flat-spotted rollers, damaged cover plates, loose retaining hardware, bent mounting points, and metal wear around the shaft support area. A new shaft installed into worn bearings or a damaged mounting location may still allow noise, uneven travel, or premature shaft wear.
Common symptoms that may lead a technician to inspect this part include noisy gate movement, roller wobble, uneven lift action, binding during travel, visible shaft wear, bearing noise, loose roller hardware, or abnormal wear near the SwingRiser roller assembly. Similar symptoms can also be caused by gate alignment problems, structural damage, hydraulic movement issues, worn rollers, or improper prior repairs.
Before Ordering, Confirm
- The original part number is MX001221-P.
- The operator is a HySecurity SwingRiser model that lists this roller shaft part.
- The operator model and serial number match the parts diagram being used.
- The shaft size required is 1 inch, not 5/8 inch or another size.
- The repair requires MX001221-P and not MX001221, MX001220, or another related roller shaft kit.
- The package includes the parts you expect, such as shaft only or shaft with rollers and bearings.
- The existing rollers, bearings, cover plates, spacers, and retaining hardware are inspected for wear.
- The gate is not binding or out of alignment, which can damage a new roller shaft assembly.
Installation and Service Notes
- Secure the gate and operator before servicing the SwingRiser roller shaft area.
- Do not work around an unsupported gate leaf or loaded lift mechanism.
- Inspect the old shaft for scoring, bending, uneven wear, or bearing damage.
- Check the bearings and rollers before reusing them with a new shaft.
- Do not force an incorrect shaft size into the assembly.
- Replace worn retaining hardware, spacers, or mounting components where required.
- After service, verify smooth roller movement, proper gate travel, and safe operator operation.
Professional Advisory
SwingRiser operators are heavy-duty hydraulic gate systems with large moving parts and load-bearing assemblies. A qualified gate technician is recommended for roller shaft repairs, hydraulic movement problems, heavy gate handling, travel setup, structural alignment issues, or unknown prior modifications. Do not bypass safety devices, limit controls, hydraulic protections, or entrapment protection devices to test operation.
Product Questions & Answers
Is HySecurity MX001221-P used on SwingRiser operators?
Yes. MX001221-P is commonly listed as a 1 inch heavy-duty roller shaft for select SwingRiser applications. Fitment should be confirmed by operator model, serial number, and parts diagram before ordering.
Is MX001221-P the same as MX001221?
They appear closely related, but they should not be treated as automatically identical. MX001221 is commonly shown as a shaft kit with heavy-duty rollers and bearings, while MX001221-P may refer to a packaged service part. Verify the current package and parts diagram before substituting.
Is MX001221-P the same as MX001220?
No. MX001220 is commonly described as a 1 inch heavy-duty roller upgrade shaft kit for SwingRiser. It may be related to the same roller area, but it is not automatically the same part as MX001221-P.
Does this part include rollers and bearings?
Package contents should be verified before ordering. Some related listings describe MX001221 as a shaft kit with heavy-duty rollers and bearings, but the MX001221-P listing may need confirmation for included parts.
Can I use this shaft to replace a 5/8 inch roller shaft?
Only if the correct HySecurity upgrade kit or parts diagram confirms the conversion. A 1 inch heavy-duty roller shaft should not be substituted for a 5/8 inch shaft without confirming the full roller, bearing, cover plate, and hardware requirements.
What symptoms can point to a worn SwingRiser roller shaft?
Possible symptoms include noisy travel, roller wobble, uneven lifting, binding, visible shaft wear, bearing noise, or loose roller hardware. Similar symptoms can also come from worn bearings, damaged rollers, gate misalignment, or structural wear.
Should a technician replace this roller shaft?
A qualified gate technician is recommended. SwingRiser roller shaft service involves a heavy hydraulic gate operator mechanism, and the gate must be safely supported before repair work is performed.
