HySecurity MX4265, Target Magnet, SwingSmart 535

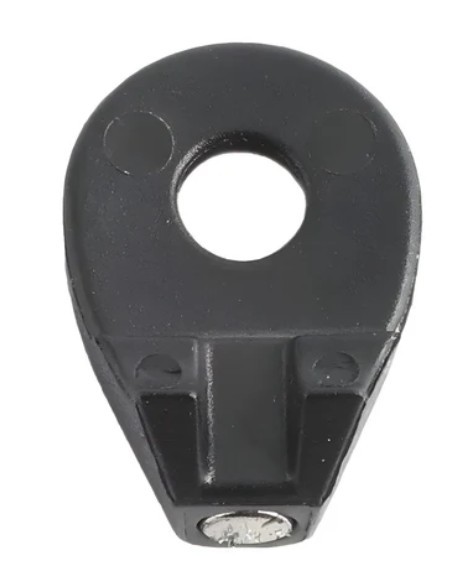

HySecurity MX4265 is a target magnet used on select HySecurity SwingSmart CNX swing gate operator applications. Current listings describe MX4265 as a plastic magnet used to trip the open and close sensors, with mounting at the taper clamp hub.
Important note: the provided product description references SwingSmart 535, but the strongest current part-number matches identify MX4265 for SwingSmart CNX, including SwingSmart CNX 20 applications. Because target magnet fitment depends on sensor location, hub style, operator generation, and parts-diagram confirmation, verify the operator model, serial number, taper clamp hub arrangement, and HySecurity parts diagram before ordering.
What This Target Magnet Does
The target magnet provides the magnetic target used by the operator's open and close sensing system. As the operator moves through its travel, the magnet passes the target sensor area so the control system can detect the proper position reference where the system is designed to use it.
A missing, damaged, misaligned, or incorrectly mounted target magnet can contribute to limit learning problems, open or close sensor errors, inconsistent position detection, or failure of the operator to recognize travel correctly. Similar symptoms can also be caused by sensor failure, wiring issues, controller faults, loose hub hardware, incorrect setup, damaged drive components, or physical gate movement problems.
Compatible With
Use HySecurity MX4265 only where the operator parts diagram, original installed magnet, or HySecurity documentation confirms this part number.
- Select HySecurity SwingSmart CNX applications where MX4265 is listed as the target magnet.
- Select HySecurity SwingSmart CNX 20 swing gate operator applications where the parts diagram confirms MX4265.
- Repairs where the original target magnet is marked, listed, or cross-referenced as HySecurity MX4265.
- Applications where the magnet style, taper clamp hub mounting, and open/close sensor arrangement match the original installation.
- SwingSmart 535 applications only where the operator parts diagram specifically lists MX4265.
Important Compatibility Warning
Do not order MX4265 based only on the words "target magnet" or "SwingSmart." Current listings identify MX4265 primarily for SwingSmart CNX applications, while the provided description references SwingSmart 535. SwingSmart CNX, SwingSmart 535, SwingSmart DC, and other HySecurity swing operators may use different sensing parts, magnet positions, hub components, or setup procedures.
This part should not be confused with the target sensor itself. The magnet and the sensor work together, but they are not the same part. If the operator is showing a target, limit, or travel-related fault, verify whether the issue is the magnet, sensor, wiring, controller setup, or mechanical position before ordering.
Similar Parts That Are Not Automatically Interchangeable
- Target sensor assembly - detects the magnet, but is not the same as the MX4265 target magnet.
- Taper clamp hub - mounting location for the magnet, but not the magnet itself.
- Limit switch or limit sensor parts - related to position control but not the same as this target magnet.
- Reset switch kits - separate stop/reset circuit parts and not related to the target magnet function.
- Controller boards or SmartCNX control boards - may report target or limit faults, but are not the magnet.
- Target magnets used on SlideSmart or other chain-driven operators - not automatically interchangeable with MX4265.
- Magnets from other SwingSmart generations - may look similar but should not be used unless the parts diagram confirms the same part number.
Not Intended For
- SlideSmart, SlideDriver, StrongArm, HydraSwing, HydraLift, HydraWedge, SwingRiser, or WedgeSmart operators unless the parts diagram specifically lists MX4265.
- SwingSmart 535 applications unless the parts diagram specifically confirms MX4265.
- Target sensor replacement.
- Open sensor or close sensor replacement.
- Limit switch, reset switch, controller, gearbox, motor, or cover replacement.
- Repairs where the actual problem is sensor wiring, controller setup, drive movement, gate binding, or incorrect target alignment.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX4265 |
| Product Type | Target magnet |
| Common Description | Target magnet for SwingSmart CNX open and close sensor activation |
| Common Application | Select HySecurity SwingSmart CNX swing gate operator applications |
| Material / Construction | Plastic body with integrated magnet, based on current listing descriptions |
| Mounting Location | Taper clamp hub where specified by the operator parts diagram |
| Electrical Rating | Not applicable - passive magnet, not a powered electrical component |
| Sensor Function | Used to trip or activate open and close sensors where the system is designed for this target |
| Package Contents | Verify current package contents before ordering; mounting screw or hardware may vary by package |
Also Known As / Related Part Numbers
- MX4265
- HySecurity MX4265
- Nice HySecurity MX4265
- HYS-MX4265
- HYS-mx4265
- HySecurity target magnet
- HySecurity SwingSmart CNX target magnet
- SwingSmart CNX target magnet
- Target Magnet for SwingSmart CNX Gate Operators
- Target magnet for open and close sensors
- Target magnet for taper clamp hub
- SwingSmart 535 target magnet - verify by parts diagram before using this wording on the live page
Related Parts and Accessories
The correct related parts depend on the operator model, sensor arrangement, hub style, and the reason the target magnet is being replaced. Inspect the full sensing area before ordering only the magnet.
- Target sensor or open/close sensor - detects the magnet; not the same as MX4265.
- Taper clamp hub - mounting location for the target magnet; separate mechanical component.
- Mounting screw or fastener - verify whether included with the magnet package.
- Controller or SmartCNX board - may report target/limit faults but should not be replaced before checking the magnet and sensor.
- Wire harness and sensor wiring - inspect if the target is installed but not detected.
- Gearbox, motor, and drive components - inspect if travel position problems are caused by mechanical movement rather than magnet detection.
Technician Note
Before replacing MX4265, inspect the existing magnet location, taper clamp hub, sensor face, mounting screw, and wiring to the open/close sensor circuit. A target fault or position detection issue may be caused by a missing magnet, weak or damaged magnet, incorrect mounting position, loose hub hardware, dirty sensor face, damaged sensor, wiring fault, or controller setup issue.
If the operator is a SwingSmart 535, verify MX4265 directly against the SwingSmart 535 parts diagram before ordering. Current part-number matches point strongest to SwingSmart CNX, so the model-family label should be checked carefully.
Before Ordering, Confirm
- The required part number is MX4265.
- The operator is a HySecurity SwingSmart CNX model, or the parts diagram specifically lists MX4265 for the installed operator.
- If the operator is a SwingSmart 535, the current parts diagram confirms MX4265 before ordering.
- The repair requires the target magnet, not the target sensor, open sensor, close sensor, controller, reset switch, or gearbox.
- The magnet mounts to the taper clamp hub on the installed operator.
- The sensor face, magnet alignment, hub position, and mounting screw condition have been inspected.
- The package includes any needed mounting hardware, or that hardware is ordered separately if required.
- The issue is not being caused by sensor wiring, controller setup, mechanical travel problems, or gate binding.
Installation and Service Notes
- Turn off and secure operator power before working near moving parts or sensor wiring.
- Install the target magnet only in the location specified by the HySecurity parts diagram or service procedure.
- Do not alter, bypass, or relocate sensors to avoid correcting a magnet alignment problem.
- Make sure the magnet is secured and cannot contact moving components during operation.
- Verify that the magnet passes the sensor at the correct point in travel.
- After installation, test open and close operation, sensor detection, limits, and all required safety devices.
- Do not bypass entrapment protection, reset circuits, limits, sensors, or controller protections to keep the operator running.
Professional Advisory
A qualified gate technician is recommended if the operator is not detecting the target magnet, will not learn limits, shows repeated target or position faults, has damaged sensor wiring, or has unknown prior modifications. Do not bypass photo eyes, safety edges, inherent entrapment protection, limit controls, reset circuits, target sensors, controller protections, or any required safety device during testing.
Product Questions & Answers
What is HySecurity MX4265?
HySecurity MX4265 is a target magnet used on select HySecurity SwingSmart CNX gate operator applications. It is commonly used to trip the open and close sensors.
The provided description references SwingSmart 535, but current part-number matches identify MX4265 for SwingSmart CNX. Use MX4265 on SwingSmart 535 only if the parts diagram for that operator specifically lists this part number.
Where does the MX4265 target magnet mount?
Current listings describe MX4265 as mounting to the taper clamp hub. Confirm the exact mounting location against the operator parts diagram before installation.
Is MX4265 the same as the target sensor?
No. MX4265 is the magnet that trips the open and close sensors. The target sensor is a separate part that detects the magnet.
Can a missing target magnet cause limit or position problems?
Yes. A missing, damaged, loose, or misaligned target magnet can contribute to target detection, limit learning, or position-related problems. Sensor wiring, controller setup, and mechanical travel should also be checked.
Does MX4265 include mounting hardware?
Package contents should be verified before ordering. Some target magnets may use a mounting screw, but included hardware can vary by package.
Should a technician install or align this target magnet?
A qualified gate technician is recommended if the operator is not detecting the magnet, will not learn limits, has sensor wiring issues, or has unknown prior modifications.
