HySecurity MX4329-03, SENSOR, HE W/ HARNESS, 700L

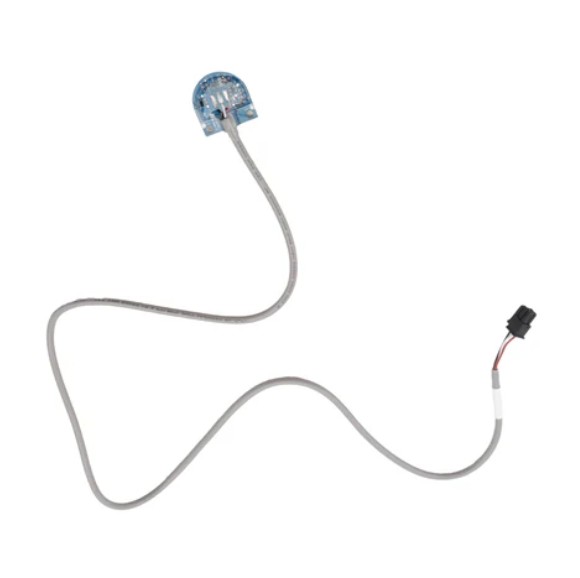

HySecurity MX4329-03 is a Hall effect sensor with harness for select HySecurity SwingSmart CNX / 700L gate operator applications. Current listings identify this part as "SENSOR, HE W/ HARNESS, CNX 700" and "Hall Effect Sensor w/ Harness."
A Hall effect sensor is used for magnetic position detection in the operator system. It works with the proper magnetic target and controller input so the operator can monitor position or travel reference where the system is designed for it. Because sensor fitment depends on operator generation, harness style, sensor location, and magnet arrangement, MX4329-03 should be ordered only where the HySecurity parts diagram confirms this part number.
What This Hall Effect Sensor Does
The Hall effect sensor detects a magnetic field from the correct target magnet as the operator moves through its travel. This position feedback helps the control system recognize movement or target reference points used during setup and normal operation.
A failed, damaged, misaligned, disconnected, or incorrect Hall effect sensor can contribute to target detection problems, position feedback issues, travel setup problems, limit-learning errors, or inconsistent gate movement. Similar symptoms can also be caused by a missing or damaged target magnet, incorrect magnet alignment, harness damage, loose connectors, controller input issues, incorrect setup, gearbox problems, arm movement issues, or gate binding.
Compatible With
Use HySecurity MX4329-03 only where the operator parts diagram, original sensor label, or HySecurity documentation confirms this part number.
- Select HySecurity SwingSmart CNX applications where MX4329-03 is listed as the Hall effect sensor with harness.
- Select HySecurity CNX 700 / 700L applications where the parts diagram confirms MX4329-03.
- Repairs where the original sensor and harness are marked, listed, or cross-referenced as HySecurity MX4329-03.
- Applications where the sensor mounting location, harness connector, target magnet, and controller input match the original installation.
- Position feedback or target sensing repairs where diagnosis confirms the Hall effect sensor assembly is the failed part.
Important Compatibility Warning
Do not order MX4329-03 based only on the words "Hall effect sensor" or "sensor with harness." HySecurity operators can use different target sensors, Hall effect sensors, magnet targets, harness lengths, and controller connections depending on model and generation.
The user-provided description references 700L, while current listings also use CNX 700 and SwingSmart CNX wording. Verify the exact operator model, serial number, parts diagram, harness connector, and sensor location before ordering.
Similar Parts That Are Not Automatically Interchangeable
- mx4265-target-magnet-swingsmart-cnx.html">HySecurity MX4265 target magnet - works with the sensing system but is not the Hall effect sensor.
- Target sensor assemblies from other SwingSmart generations - may not use the same harness or mounting style.
- Limit switches - separate position-control parts and not the same as this Hall effect sensor.
- Reset switch kits - separate stop/reset circuit parts and not related to the Hall effect sensing function.
- Controller boards or SmartCNX controllers - may report sensor or target faults but are not the sensor assembly.
- Harness-only wiring repairs - not the same as replacing the sensor and harness assembly unless confirmed by parts diagram.
- External monitored entrapment protection sensors - safety devices, not the same as this internal Hall effect position sensor.
Not Intended For
- SlideSmart, SlideDriver, StrongArm, HydraSwing, HydraLift, HydraWedge, SwingRiser, or WedgeSmart operators unless the parts diagram specifically lists MX4329-03.
- SwingSmart DC, SwingSmart 535, or other SwingSmart generations unless the parts diagram specifically lists MX4329-03.
- Target magnet replacement.
- Controller or SmartCNX board replacement.
- Limit switch or reset switch replacement.
- Motor, gearbox, power supply, or cover assembly repairs.
- External photo eye, safety edge, or monitored entrapment sensor replacement.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX4329-03 |
| Product Type | Hall effect sensor with harness |
| Common Description | Sensor, HE w/ harness, CNX 700 / 700L |
| Sensor Type | Hall effect / magnetic field detection sensor |
| Common Application | Select SwingSmart CNX / 700L applications where listed by parts diagram |
| Harness | Included sensor harness, based on current listing descriptions |
| Function | Provides magnetic position feedback where specified by the operator design |
| Related Target | Requires correct target magnet and alignment; target magnet is separate unless stated |
| Package Contents | Verify current package contents before ordering; mounting hardware or target magnet may be separate unless stated |
Also Known As / Related Part Numbers
- MX4329-03
- HySecurity MX4329-03
- Nice HySecurity MX4329-03
- HYS-MX4329-03
- HYS-mx4329-03
- MX4329-03-5128
- HySecurity Hall effect sensor with harness
- HySecurity HE sensor with harness
- HySecurity sensor, HE w/ harness, 700L
- HySecurity sensor, HE w/ harness, CNX 700
- Target / Hall-Effect Sensor w/Harness
- Hall Effect Sensor w/ Harness for SwingSmart CNX
- 700L Hall Effect Sensor w/ Harness
- MX4265 - related target magnet; not the same part
Related Parts and Accessories
The correct related parts depend on the operator model, sensing system, magnet target, and reason for replacement. Inspect the full target/sensor area before ordering only the Hall effect sensor.
- MX4265 target magnet - related magnetic target, not the same as the sensor.
- Sensor mounting hardware - verify whether included or reused from the original installation.
- Wire harness routing clips or ties - inspect if the harness was damaged by movement or abrasion.
- Controller or SmartCNX board - may report sensor/target faults but should not be replaced before checking the sensor and magnet.
- Gearbox, arm, and drive components - inspect if position faults are caused by mechanical movement issues.
- External photo eyes and safety edges - separate required safety devices, not the same as this Hall effect position sensor.
Technician Note
Before replacing MX4329-03, inspect the target magnet, sensor face, harness connector, wiring route, sensor mounting location, and controller input. A Hall effect sensor fault can be caused by a missing magnet, cracked magnet, incorrect magnet spacing, loose sensor bracket, damaged harness, corroded connector, controller setup issue, or mechanical travel problem.
If the operator is showing a target, position, or learn-limit issue, do not assume the sensor is the only failed part. Verify that the magnet passes the sensor correctly, the harness is not pinched or cut, the controller input is reading correctly, and the gate is moving smoothly through the expected travel.
Before Ordering, Confirm
- The required part number is MX4329-03.
- The operator parts diagram lists MX4329-03 for the installed operator.
- The operator is a compatible SwingSmart CNX / 700L application where the parts diagram confirms fitment.
- The repair requires the Hall effect sensor with harness, not the target magnet, controller, limit switch, reset switch, or harness-only repair.
- The harness connector, cable length, mounting location, and sensor orientation match the original installation.
- The target magnet is present, properly mounted, and aligned with the sensor.
- The issue is not being caused by mechanical travel problems, controller setup, damaged wiring, or gate binding.
- The package includes the expected sensor and harness, and any mounting hardware requirements are understood.
Installation and Service Notes
- Turn off and secure operator power before servicing the sensor or harness.
- Do not pinch, cut, stretch, or route the harness where moving parts can damage it.
- Install the sensor only in the location and orientation specified by the parts diagram or service procedure.
- Confirm that the target magnet passes the sensor at the correct point in travel.
- Do not bypass target sensing, limits, reset circuits, or controller protections to keep the operator running.
- After installation, verify sensor detection, travel setup, limit learning, normal operation, and all required safety devices.
- If the operator will not learn limits after replacement, inspect the magnet target, wiring, controller input, and mechanical movement before replacing additional parts.
Professional Advisory
A qualified gate technician is recommended if the operator is not detecting the Hall effect sensor, will not learn limits, has target or position faults, has damaged wiring, or has unknown prior modifications. Do not bypass photo eyes, safety edges, inherent entrapment protection, target sensing, limit controls, reset circuits, controller protections, or any required safety device during testing.
Product Questions & Answers
What is HySecurity MX4329-03?
HySecurity MX4329-03 is a Hall effect sensor with harness for select HySecurity SwingSmart CNX / 700L gate operator applications.
What does a Hall effect sensor do in this operator?
The Hall effect sensor detects the magnetic field from the correct target magnet and provides position feedback to the operator control system where this sensing method is used.
Does MX4329-03 include the harness?
Yes. Current listings identify MX4329-03 as a Hall effect sensor with harness. Verify current package contents before ordering, especially if mounting hardware is also needed.
Is MX4329-03 the same as the target magnet?
No. MX4329-03 is the sensor with harness. The target magnet is a separate magnetic target that the sensor detects.
What operators use MX4329-03?
Current listings associate MX4329-03 with SwingSmart CNX / CNX 700 / 700L applications. Use it only where the operator parts diagram confirms this part number.
Can a bad Hall effect sensor cause limit learning or position problems?
Yes. A failed, damaged, disconnected, or misaligned Hall effect sensor can contribute to target detection, limit-learning, or position feedback problems. The target magnet, harness, controller input, and mechanical travel should also be checked.
Should a technician install this sensor?
A qualified gate technician is recommended if the operator will not detect the sensor, will not learn limits, has damaged wiring, or has unknown prior modifications.
