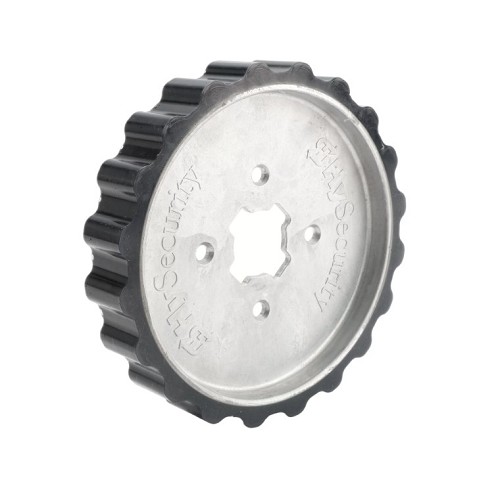

HySecurity MX5352, XtremeDrive Wheel, Replacement, 8 inch with lug nuts
The HySecurity MX5352 is an 8-inch XtremeDrive replacement wheel for select HySecurity and Nice HySecurity SlideDriver operators equipped with the XtremeDrive rack and wheel system. It is commonly listed as XtremeDrive Wheel, Replacement, 8 inch with lug nuts.
The XtremeDrive system uses a rack-mounted traction design instead of relying only on a conventional friction drive wheel against the drive rail. HySecurity describes the XtremeDrive rack and wheel system as a heavy-duty traction system for difficult-to-move, large, heavy, or stiff gates. The XtremeDrive wheel is made from an engineered polymer material and does not require lubrication like a chain-driven system.
MX5352 is the 8-inch replacement wheel-only kit. HySecuritys XtremeDrive technical bulletin lists the kit contents as a new wheel and four new lug nuts. This part is intended for operators that already have the correct XtremeDrive hub and rack setup in place. It is not the full conversion kit unless the current supplier package specifically states otherwise.
What This Replacement Wheel Does
The MX5352 replacement wheel engages with the XtremeDrive rack system to help move the gate through the SlideDriver operator drive assembly. When the XtremeDrive wheel is worn, damaged, cracked, rounded, slipping, or missing lug hardware, the gate may move poorly, lose traction, chatter, stall under load, or fail to move consistently.
Replacing the wheel can restore proper traction when the wheel is the worn component, but it will not correct a damaged rack, loose hub, worn shaft key, bad clamping bolt, weak hydraulic drive system, misaligned gate, dragging gate, worn rollers, or a gate that is oversized or binding.
Compatible With
The HySecurity MX5352 is intended for select HySecurity / Nice HySecurity SlideDriver operators that use the 8-inch XtremeDrive wheel and rack system. Compatibility depends on the operator model, wheel diameter, XtremeDrive hub, drive rail/rack setup, shaft condition, hub hardware, and current HySecurity parts documentation.
- Select HySecurity SlideDriver operators equipped with the 8-inch XtremeDrive wheel system
- Select HySecurity XtremeDrive rack and wheel systems where MX5352 is listed as the replacement wheel
- Existing XtremeDrive 8-inch wheel installations where only the wheel and lug nuts are being replaced
- Applications where the original replacement wheel is marked, listed, or cross-referenced as MX5352
Do not assume MX5352 fits every SlideDriver operator. Standard SlideDriver drive wheels, 6-inch XtremeDrive wheels, conversion kits, hub kits, and rack components are different parts and should be matched by the installed drive system.
MX5352 vs. Related XtremeDrive Parts
HySecurity lists several related XtremeDrive wheel and conversion references. These parts should not be treated as interchangeable.
- MX5352: XtremeDrive replacement wheel, 8 inch, with four lug nuts.
- MX5351: XtremeDrive replacement wheel, 6 inch, with four lug nuts.
- MX5350: XtremeDrive wheel conversion kit, 8 inch.
- mx5349-6-inch-xtremedrive-wheel-hub-kit.html">MX5349: XtremeDrive wheel conversion kit, 6 inch.
- MX4993: Lug nuts only kit for 6-inch and 8-inch XtremeDrive wheel assemblies.
If the operator already has the correct 8-inch XtremeDrive hub installed, MX5352 may be the correct replacement wheel. If the operator is being converted from a standard wheel to XtremeDrive, the repair may require the full 8-inch conversion kit instead of the wheel-only kit.
Wheel-Only Kit vs. Conversion Kit
MX5352 is the 8-inch wheel-only replacement kit. It is intended for service where the existing XtremeDrive hub, shaft key, clamping bolt, hub bolts, and rack system are still correct and usable.
If the operator does not already have the XtremeDrive hub and rack system installed, or if the hub hardware is worn or damaged, verify whether the repair requires the 8-inch conversion kit, hub hardware, rack components, or related service parts instead of the wheel-only kit.
Not Intended For
- Universal SlideDriver drive wheel replacement
- 6-inch XtremeDrive wheel applications that require MX5351
- New 8-inch XtremeDrive conversions that require MX5350
- New 6-inch XtremeDrive conversions that require mx5349-6-inch-xtremedrive-wheel-hub-kit.html">MX5349
- Replacing the XtremeDrive rack unless the rack is ordered separately
- Replacing the wheel hub, shaft key, clamping bolt, hub bolts, or drive rail hardware unless those parts are separately included or ordered
- Correcting gate movement problems caused by gate drag, worn rollers, misalignment, hydraulic pressure issues, bad drive motor, loose hub, or damaged rack without diagnosis
Important Compatibility Warning
MX5352 should be selected by wheel diameter and XtremeDrive system configuration. An 8-inch XtremeDrive wheel is not the same as a 6-inch XtremeDrive wheel or a standard SlideDriver drive wheel.
If the wheel failed because the gate is dragging, the rack is misaligned, the hub is loose, the shaft key is damaged, or the gate hardware is worn, the new wheel may wear quickly. Inspect the full drive system before returning the operator to service.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX5352 |
| Product Type | XtremeDrive replacement wheel |
| Common Description | XtremeDrive Wheel, Replacement, 8 inch with lug nuts |
| Wheel Size | 8 inch |
| Drive System | HySecurity XtremeDrive rack and wheel system |
| Material Reference | Engineered polymer XtremeDrive wheel as described by HySecurity XtremeDrive documentation |
| Common Included Items | New 8-inch XtremeDrive wheel and four lug nuts |
| Related Lug Nut Kit | MX4993 lug nuts only kit for 6-inch and 8-inch XtremeDrive wheel assemblies |
| Related 6-Inch Wheel | MX5351 is the related 6-inch replacement wheel with lug nuts |
| Related Conversion Kit | MX5350 is the related 8-inch XtremeDrive wheel conversion kit |
| Installation Note | HySecurity technical bulletin references tightening XtremeDrive lug nuts to approximately 18 to 23 foot-pounds; service should follow the current HySecurity instructions |
| Not Included Unless Listed | Wheel hub, hub hardware, shaft key, clamping bolt, hub bolts, rack, drive rail, motor shaft hardware, and full conversion kit parts unless separately listed |
Also Known As / Related Part Numbers
- MX5352
- HySecurity MX5352
- Nice HySecurity MX5352
- HySecurity XtremeDrive Wheel, Replacement, 8 inch with lug nuts
- HySecurity XtremeDrive 8-inch replacement wheel
- HySecurity 8-inch XtremeDrive wheel
- HySecurity XtremeDrive wheel with lug nuts
- HySecurity SlideDriver XtremeDrive wheel
- HySecurity engineered polymer XtremeDrive wheel
- HYS-MX5352, related distributor SKU format
- MX5351, related 6-inch XtremeDrive replacement wheel with lug nuts, not the same part
- MX5350, related 8-inch XtremeDrive wheel conversion kit, not the same part
- mx5349-6-inch-xtremedrive-wheel-hub-kit.html">MX5349, related 6-inch XtremeDrive wheel conversion kit, not the same part
- MX4993, related XtremeDrive lug nuts only kit
Related Parts and Accessories
- MX5351-XtremeDrive-Wheel-Replacement-6-inch-with-lug-nuts_p_11090.html">HySecurity MX5351 6-inch XtremeDrive replacement wheel with lug nuts
- HySecurity MX5350 8-inch XtremeDrive wheel conversion kit where the full conversion hardware is required
- mx5349-6-inch-xtremedrive-wheel-hub-kit.html">mx5349-6-inch-xtremedrive-wheel-hub-kit.html">HySecurity mx5349-6-inch-xtremedrive-wheel-hub-kit.html">MX5349 6-inch XtremeDrive wheel conversion kit where the smaller conversion kit is required
- HySecurity MX4993 lug nuts only kit where only the lug nuts are being replaced
- XtremeDrive rack components where the rack is worn, damaged, loose, or misaligned
- Wheel hub and hub hardware where the hub, bolts, shaft key, or clamping bolt are worn or damaged
- Drive rail and gate hardware components where poor gate movement is causing wheel wear
Technician Note
Before replacing the XtremeDrive wheel, inspect the rack engagement, wheel hub, hub bolts, lug nuts, motor shaft, shaft key, clamping bolt, drive rail alignment, and gate movement. A new wheel can wear quickly if the rack is misaligned, the hub is loose, or the gate is dragging.
If only the lug nuts are damaged or missing, verify whether the MX4993 lug nuts only kit is the better repair. If the operator does not already have the XtremeDrive system installed, verify whether the MX5350 8-inch conversion kit is required instead of the MX5352 wheel-only kit.
Before Ordering, Confirm
- Confirm the needed HySecurity part number is MX5352.
- Confirm the existing part is an 8-inch XtremeDrive replacement wheel.
- Confirm the operator uses the XtremeDrive rack and wheel system.
- Confirm the operator does not require the 6-inch wheel MX5351.
- Confirm the repair does not require the 8-inch conversion kit MX5350 instead of the wheel-only kit.
- Confirm the XtremeDrive rack, wheel hub, hub hardware, shaft key, clamping bolt, and hub bolts are in serviceable condition.
- Confirm the gate rolls properly and is not dragging, binding, sagging, misaligned, or oversized for the operator.
- Confirm whether wheel hub, hub hardware, rack parts, shaft key, clamping bolt, threadlocker, or instructions are included or must be ordered separately.
Installation and Service Notes
Disable the operator and secure the gate before servicing the drive wheel. Compare the replacement wheel to the original before installation, including wheel size, hub fit, lug nut fit, and rack engagement. HySecuritys XtremeDrive technical bulletin references tightening the wheel lug nuts to approximately 18 to 23 foot-pounds; always follow the current HySecurity service instructions for the operator being repaired.
After installation, verify that the wheel tracks correctly on the XtremeDrive rack, the hub is secure, the gate moves smoothly, and there is no rubbing, slipping, chatter, or abnormal wear. Test the operator through full travel and confirm all safety devices operate correctly before returning the gate to service.
Professional Advisory
XtremeDrive wheel replacement involves moving gate parts, pinch points, drive-wheel engagement, heavy gate loads, and operator drive components. A qualified HySecurity gate technician should handle the repair if the rack is damaged, the hub is loose, the wheel has failed repeatedly, the gate is difficult to move, or the operator drive system has unknown prior repairs.
Do not bypass covers, guards, limits, monitored entrapment protection, photo eyes, safety edges, drive protections, or controller safeguards to force the operator to run. The XtremeDrive system and gate hardware should be repaired correctly and fully tested before the gate is returned to service.
Product Questions & Answers
What is the HySecurity MX5352 used for?
The HySecurity MX5352 is an 8-inch XtremeDrive replacement wheel with four lug nuts for select HySecurity SlideDriver operators using the XtremeDrive rack and wheel system.
What comes with MX5352?
HySecuritys XtremeDrive wheel-only kit reference lists MX5352 as including one new 8-inch wheel and four new lug nuts.
Is MX5352 the same as MX5351?
No. MX5352 is the 8-inch XtremeDrive replacement wheel. MX5351 is the related 6-inch XtremeDrive replacement wheel.
Is MX5352 the full XtremeDrive conversion kit?
No. MX5352 is the 8-inch wheel-only replacement kit with lug nuts. The related 8-inch XtremeDrive conversion kit is MX5350.
Does the XtremeDrive wheel need lubrication?
The XtremeDrive rack and wheel system is described as not requiring lubrication like a chain-driven system. Keep the wheel and rack clean and inspect for wear, damage, and proper engagement.
What should I check before replacing the wheel?
Check the XtremeDrive rack, wheel hub, hub bolts, lug nuts, shaft key, clamping bolt, motor shaft, drive rail alignment, and gate movement before replacing the wheel.
