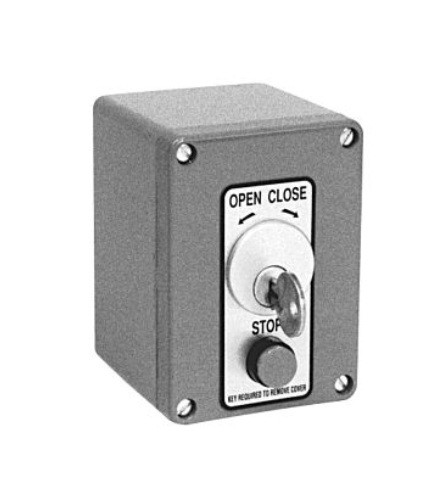

LiftMaster 02410U NEMA 4/12 Outdoor Key Switch with Stop - U-Change-It Cylinder
The LiftMaster 02410U is a NEMA 4/12 outdoor key switch station for commercial and industrial door operator control. It is designed for applications where keyed operation and a separate Stop button are required.
The U-Change-It cylinder version is commonly selected when the site uses that cylinder format or wants a key switch station supplied for that keying style instead of a customer-supplied cylinder configuration.
What This Part Does
This station sends Open, Close, and Stop commands to a compatible commercial operator control circuit. It helps restrict door operation to authorized users while keeping the control station accessible at the door, dock, or service area.
The enclosure and key switch design make it suitable for tougher environments than a standard indoor wall station, but proper wiring and operator safety testing are still required after installation.
Compatible With
The 02410U is commonly used with LiftMaster commercial and industrial door operators that accept 3-button Open/Close/Stop station wiring and require a U-Change-It key cylinder style.
Common Compatible Applications
- Select LiftMaster commercial trolley operators
- Select LiftMaster commercial jackshaft operators
- Select LiftMaster commercial hoist operators
- Select LiftMaster industrial door operators with external control station inputs
- Outdoor commercial door locations requiring keyed operation and a Stop button
Important Compatibility Notes
- This station is not a radio receiver and does not add wireless control.
- The operator must support Open, Close, and Stop control station inputs.
- Confirm U-Change-It cylinder requirements before ordering.
- Not all key switch stations use the same cylinder or enclosure style.
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Outdoor Key Switch Control Station |
| Part Number | 02410U |
| Application | Commercial and industrial door operator control |
| Mounting | Outdoor surface mount |
| Enclosure Rating | NEMA 4/12 |
| Control Functions | Open, Close, and Stop |
| Cylinder Style | U-Change-It |
| Compatible Operator Type | Select LiftMaster commercial and industrial door operators with 3-button station inputs |
| Notes | Confirm cylinder style and control wiring before ordering. |
Also Known As / Related Part Numbers
These numbers and search terms are commonly associated with this item. Related numbers should be confirmed against the operator, receiver, or parts diagram before treating them as direct replacements.
- 02410U
- 02-410U
- LiftMaster 02410U
- U-Change-It key switch station
- NEMA 4/12 key switch with Stop
- Open Close Stop key control station
Technician Note
Use the operator wiring diagram to confirm the correct Open, Close, Common, and Stop connections before wiring this station. Commercial operators can vary by control board generation and control circuit layout.
Do not substitute this model for 02410C unless the cylinder style is correct for the job. The enclosure and function may look similar, but the keying/cylinder setup is the main ordering difference.
Before Ordering, Confirm
- The site requires the U-Change-It cylinder version.
- The operator supports external Open, Close, and Stop station wiring.
- The station will be mounted in an outdoor or industrial surface-mount location.
- The user needs keyed control rather than a standard push-button wall station.
- The door or gate will remain in clear view while the station is used.
Professional Advisory
Commercial door control wiring should be performed with power disconnected and according to the operator manual. After installation, test Open, Close, Stop, reversing devices, photo eyes, and sensing edges before returning the door to normal service.
Important Ordering Warnings
- Do not confuse 02410U with 02410C.
- Do not use this station to bypass a failed wall station, control board, or safety device.
- Confirm control voltage and wiring terminals before installation.
- A key switch station must not be installed where the door or gate cannot be seen during operation.
Questions & Answers
What cylinder style does the 02410U use?
The 02410U is the U-Change-It cylinder version. It should be selected when that cylinder style matches the site requirements.
Is the 02410U suitable for outdoor mounting?
Yes. It uses a NEMA 4/12 surface-mount enclosure for outdoor or industrial commercial door control locations.
Does the 02410U provide Open, Close, and Stop?
Yes. It provides keyed Open/Close operation with a separate Stop button when connected to a compatible commercial operator control circuit.
Can this replace a 02410C key switch?
Only if the cylinder style and site keying requirements match. The 02410C and 02410U are similar control stations but use different cylinder configurations.
Who should install this station?
A qualified commercial door technician should wire and test the station, especially when connecting it to operator control circuits and safety systems.
