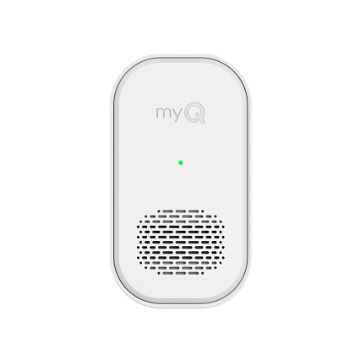

LiftMaster MYQW11AXXW Wireless Chime Compatibility and Setup Details
The LiftMaster myQ MYQW11AXXW is an indoor plug-in wireless chime that provides audible and visual notifications from select compatible myQ video access devices. It is useful when a phone is muted, charging, in another room, or not close enough for the user to hear a mobile notification.
The chime plugs directly into an indoor wall outlet and connects to a 2.4 GHz Wi-Fi network. Initial setup is completed through the myQ app using Bluetooth. No traditional doorbell wiring, separate speaker wiring, batteries, or mounting hardware are required for the chime itself.
What the MYQW11AXXW Does
Once paired with a compatible myQ device, the MYQW11AXXW plays a selected tone and can flash its LED when the connected device generates an alert. Tone, volume, LED behavior, and temporary Snooze settings are managed through the myQ app.
Multiple chimes can be added to different rooms or zones. This can improve alert coverage in larger homes, multi-level homes, detached work areas with indoor Wi-Fi coverage, or locations where the connected phone is not always nearby.
Confirmed Compatible myQ Devices
- myQ Video Doorbell
- myQ Smart Garage Video Keypad
- myQ Secure View 3-in-1 Video Lock
- LiftMaster myQ MYQL90AXXB Secure View 3-in-1 Smart Lock family, subject to current app and firmware support
Compatibility requires a supported myQ device, current myQ app, myQ account, internet connection, and adequate 2.4 GHz Wi-Fi coverage. Verify the exact connected-device model before ordering.
Products Not Automatically Confirmed Compatible
- Older myQ cameras and video accessories
- Standard myQ garage door openers without a compatible video alert device
- Traditional wired doorbell buttons without a compatible myQ device
- Third-party video doorbells and smart locks
- Apple HomeKit, Amazon Alexa, Google Home, or other third-party alert devices unless separately supported
- Commercial access-control notification systems
- Gate operator radio receivers and remote-control systems
Do not assume compatibility based only on the myQ name. Confirm the source device model and current myQ app support before purchasing the chime.
Audible and Visual Alert Options
- Selectable chime-tone options
- Adjustable volume levels
- Published audio output of 77 dB at 1 meter
- Visual LED notification during configured alerts
- Customizable LED behavior through the myQ app
- Temporary Snooze setting for silencing alerts
- Support for multiple chimes in different rooms or zones
The chime can be configured to play a tone, flash its LED, or provide the alert behavior available through the current myQ app. Available settings may change with app or firmware updates.
Wi-Fi and App Requirements
The MYQW11AXXW connects to a 2.4 GHz Wi-Fi network only. It is not documented for direct connection to a 5 GHz-only network. A dual-band router may be usable when its 2.4 GHz network is enabled and properly configured.
Initial setup uses Bluetooth to connect the chime to the myQ app. The app then guides the user through Wi-Fi connection, device pairing, tone selection, volume adjustment, and LED configuration.
A strong Wi-Fi signal is required at the wall outlet where the chime will be installed. Weak signal, network isolation, changed Wi-Fi credentials, router replacement, or unsupported security settings can prevent setup or cause intermittent operation.
Features and Specifications
| Specification | Details |
| Brand | LiftMaster myQ |
| Model Number | MYQW11AXXW |
| Product Type | Indoor plug-in wireless chime |
| Primary Function | Audible and visual alerts from compatible myQ devices |
| Wi-Fi Connectivity | 2.4 GHz Wi-Fi only |
| Setup Connection | Bluetooth setup through the myQ app |
| Power Input | 100-240 VAC, 50/60 Hz, 1A |
| U.S. Installation Power | Plug directly into a standard 120V AC wall outlet as directed by the U.S. manual |
| Mounting Style | Direct wall-outlet plug-in |
| Battery Required | No |
| Traditional Doorbell Wiring Required | No |
| Audio Output | 77 dB at 1 meter |
| Volume | Adjustable through the myQ app |
| Chime Tones | Multiple selectable tone options |
| Visual Indicator | Multi-color status and alert LED |
| Snooze Function | Temporary alert silencing through the myQ app |
| Multiple Chime Support | Yes, multiple chimes may be added for separate rooms or zones |
| Operating Temperature | 32 F to 113 F (0 C to 45 C) |
| Installation Environment | Indoor use only |
| Color | White |
| Reset Control | Side-mounted setup and factory-reset button |
| Warranty | 1-year limited warranty, subject to current manufacturer terms |
LED Indicator Guide
| LED Condition | Meaning |
| Solid White | Device is starting |
| Blinking Blue | Ready for pairing |
| Solid Blue | Bluetooth connected |
| Alternating Blue and Green | Connecting to Wi-Fi |
| Blinking Green | Connecting to the myQ app |
| Solid Green | Successfully connected to the myQ app |
| Blinking Magenta | Firmware update in progress |
| Pulsing Blue | Chime alert or tone is active when enabled |
| Solid Red | Factory reset |
| No Light | Power is off or the LED has been disabled in the app |
Initial Setup
- Install the current myQ app on a compatible mobile device.
- Confirm that a 2.4 GHz Wi-Fi network is available at the outlet.
- Scan the QR code on the rear of the chime.
- If needed, open Device Management in the myQ app and select Add New Device, Accessory, and Chime.
- Plug the chime directly into an indoor wall outlet.
- Wait for the LED to blink blue, indicating that it is ready to pair.
- Follow the app instructions to connect Wi-Fi and pair the desired myQ device.
- Select the preferred tone, volume, LED behavior, and other available settings.
- Trigger the connected device and verify both audible and visual alerts.
Wi-Fi Reset and Factory Reset
To update the Wi-Fi connection, press and hold the side button until the LED becomes solid blue, then release it to enter setup mode. The myQ app can then be used to enter the current Wi-Fi credentials.
A factory reset removes saved settings and returns the chime to an unconfigured state. Press and hold the reset button until the LED becomes solid red, then release it. The chime must be set up and paired again after the reset.
Common Troubleshooting Checks
- If there is no sound, verify that the volume is not muted in the myQ app.
- Check that the Snooze setting has not been enabled.
- Confirm that the chime is fully inserted into the wall outlet.
- Verify that the outlet has power.
- Check whether the LED status light has been disabled in the app.
- If Wi-Fi setup fails, move the chime closer to the router and try again.
- If the LED continually alternates blue and green, unplug the chime for 10 seconds and reconnect it.
- Re-enter Wi-Fi credentials after replacing the router or changing the network name or password.
- Confirm that the paired myQ doorbell, keypad, or lock is online and generating alerts.
Important Indoor Electrical Warning
The MYQW11AXXW is intended for indoor use only. Plug it directly into a suitable wall outlet. Do not use the chime with an extension cord, power strip, damaged outlet, loose receptacle, or location exposed to water or excessive moisture.
Do not install it outdoors, inside an unconditioned gate-operator cabinet, in a wet garage location, or where irrigation, condensation, or rain may reach the device. The published minimum operating temperature is 32 F.
Package Contents
- One LiftMaster myQ MYQW11AXXW plug-in wireless chime
The compatible myQ Video Doorbell, Smart Garage Video Keypad, Secure View 3-in-1 Smart Lock, mobile device, Wi-Fi router, internet service, and myQ account are not included. Printed documentation or package inserts may vary by production revision.
Similar Products That Are Not Automatically Interchangeable
- Traditional wired mechanical doorbell chimes
- Traditional wired digital doorbell chimes
- Third-party Wi-Fi or Bluetooth chimes
- Garage door opener warning buzzers
- Gate operator audible alarms
- Access-control annunciators
- Plug-in receivers for driveway-alert systems
The MYQW11AXXW receives alerts through the compatible myQ ecosystem. It is not a universal dry-contact chime, wired doorbell transformer accessory, gate alarm, or radio receiver.
Also Known As and Related Products
- MYQW11AXXW
- LiftMaster myQ Chime
- myQ Wireless Chime
- myQ Plug-In Chime
- myQ Video Doorbell Chime
- myQ Smart Garage Video Keypad Chime
- myQ Secure View 3-in-1 Smart Lock Chime
Before Ordering Checklist
- Confirm the part number is MYQW11AXXW.
- Verify that the source device is listed as compatible with the myQ Chime.
- Confirm that the home has an active myQ account and compatible mobile device.
- Verify that 2.4 GHz Wi-Fi is enabled.
- Check Wi-Fi signal strength at the intended wall outlet.
- Confirm that an indoor wall outlet is available.
- Do not plan to install the chime outdoors or in a wet location.
- Determine whether more than one chime is needed for separate rooms or floors.
- Do not assume the chime will connect directly to a standard wired doorbell button.
- Confirm current app and firmware compatibility before pairing older myQ devices.
Technician Note
A chime that does not sound is not always defective. First verify the app volume, Snooze setting, source-device alert configuration, Wi-Fi connection, outlet power, and paired-device status.
If the chime works near the router but not at the intended outlet, the problem is likely Wi-Fi coverage rather than the chime speaker. Relocate the chime or improve the 2.4 GHz network signal before replacing the accessory.
Professional Advisory
Do not open or modify the chime housing. Stop using the device if the plug, housing, outlet connection, or internal electronics appear damaged or become unusually hot.
A loose, damaged, discolored, sparking, or overheating wall outlet should be inspected by a qualified electrician. The chime should not be used to conceal or continue using an unsafe receptacle.
Product Questions and Answers
Which devices are compatible with the LiftMaster MYQW11AXXW myQ Chime?
LiftMaster confirms compatibility with the myQ Video Doorbell, myQ Smart Garage Video Keypad, and Secure View 3-in-1 Video Lock. Verify the exact source-device model and current myQ app support before ordering.
Does the MYQW11AXXW require traditional doorbell wiring?
No. The chime plugs directly into an indoor wall outlet and receives alerts wirelessly through the compatible myQ system. It does not connect to traditional doorbell wiring.
Does the myQ Chime work with 5 GHz Wi-Fi?
The MYQW11AXXW requires a 2.4 GHz Wi-Fi network. A dual-band router may be used when its 2.4 GHz network is enabled and available at the chime location.
Can the chime tone and volume be adjusted?
Yes. The myQ app provides selectable tone options, adjustable volume, LED behavior settings, and a temporary Snooze function.
Can multiple MYQW11AXXW chimes be used in one home?
Yes. Multiple chimes can be added to provide audible and visual alerts in different rooms, floors, or zones, provided each location has suitable outlet power and Wi-Fi coverage.
Can the LiftMaster myQ Chime be installed outdoors?
No. The MYQW11AXXW is for indoor use only and has a published operating range of 32 F to 113 F. Do not install it where it can be exposed to rain, irrigation, condensation, or excessive moisture.
What does an alternating blue and green LED mean?
An alternating blue and green LED indicates that the chime is connecting to Wi-Fi. If the pattern continues, unplug the chime for 10 seconds, reconnect it, and verify the Wi-Fi settings and signal strength.
What is included with the MYQW11AXXW?
The standalone product is one MYQW11AXXW plug-in myQ Chime. A compatible doorbell, video keypad, smart lock, mobile device, Wi-Fi router, and internet service are not included.
