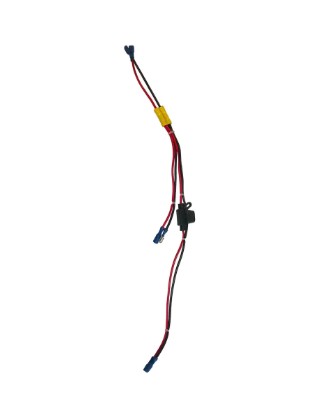

Mighty Mule RP1014 MM571W and MM572W Battery Harness Service Details
The Mighty Mule RP1014 is an internal replacement battery harness designed for the MM571 and MM572 automatic swing gate operator families. Current operator models are commonly identified as the MM571W single-gate opener and MM572W dual-gate opener.
The harness carries battery power between the operator's 12V battery system and the control board. It replaces an original harness with damaged insulation, corroded terminals, loose connections, overheated wiring, or other physical damage that can interrupt power to the operator.
Confirmed Operator Compatibility
- Mighty Mule MM571 operator family
- Mighty Mule MM572 operator family
- Mighty Mule MM571W single swing gate operator
- Mighty Mule MM572W dual swing gate operator
Compatibility with other Mighty Mule operators should not be assumed. Verify the complete model number and compare the original harness before ordering.
What the RP1014 Battery Harness Does
- Connects the 12V battery system to the operator control board
- Provides the positive and negative battery power path
- Routes from the battery enclosure into the control box
- Supports the original MM571W and MM572W battery configuration
- Replaces damaged or unreliable original battery wiring
Important Compatibility Warning
The RP1014 is specifically identified for the MM571 and MM572 operator families. It is not a universal battery cable for every Mighty Mule gate opener.
Do not confuse the RP1014 internal harness with the RP1013 external battery harness used with select MM272, MM371, and MM372 operators. The harness length, routing, terminal arrangement, connectors, and supported battery configuration may differ.
Do not select a harness based only on wire color. Compare the operator model, original harness, control-board connections, battery terminals, cable routing, and enclosure arrangement.
Features and Specifications
| Specification | Details |
| Brand | Mighty Mule |
| Part Number | RP1014 |
| Product Type | Internal battery wiring harness |
| Confirmed Operator Families | MM571 and MM572 |
| Current Model References | MM571W and MM572W |
| System Application | 12VDC gate operator battery system |
| Battery Polarity | Red to positive and black to negative |
| Installation Location | Routes between the battery enclosure and control board |
| Package Contents | One RP1014 battery harness |
| Related Battery | FM150 12V 7Ah battery - sold separately unless otherwise stated |
| Related Harness | RP1013 external harness for different operator applications |
Package Contents
- One Mighty Mule RP1014 internal battery harness
The standard listing does not identify a battery, battery enclosure, control board, transformer, solar panel, fuse, mounting hardware, or replacement control box as included.
RP1014 Compared With the RP1013 Harness
The RP1014 is the internal battery harness specified for the MM571 and MM572 operator families. The RP1013 is listed as an external battery harness for select MM272, MM371, and MM372 operators.
These parts should not be substituted based on appearance. Differences may include harness length, battery arrangement, wire routing, terminals, connectors, and control-box installation.
Similar Parts That Are Not Automatically Interchangeable
- Mighty Mule RP1013 external battery harness
- Battery cables from MM271 or MM272 operator systems
- Harnesses from MM371W or MM372W control boxes
- Older GTO and Mighty Mule FM-series battery cables
- Generic automotive or lawn tractor battery cables
- Aftermarket harnesses with different wire gauge or terminal spacing
- Control-board wiring harnesses that do not connect directly to the battery
Symptoms of a Possible Battery Harness Problem
- The control board does not power on with a charged battery
- The operator works intermittently when the battery wires are moved
- The charge indicator reports that the battery is disconnected
- The operator clicks but the arm does not move
- Battery terminals or harness connections show corrosion
- Wire insulation is cut, melted, brittle, or damaged
- A terminal becomes warm or shows signs of overheating
- The fuse opens after the battery is connected
These symptoms do not automatically confirm a failed harness. Similar problems can be caused by a discharged battery, blown fuse, damaged control board, incorrect polarity, failed charging source, loose terminal, or operator-arm problem.
Related Parts and Service Checks
Before replacing the harness, inspect the complete power system:
- FM150 or installed 12V battery condition
- Battery terminal condition and polarity
- Control-board BAT+ and BAT- connections
- Control-board fuses
- RP1010 19V power supply or approved solar charging source
- Charging-source wiring and polarity
- Battery enclosure for water, corrosion, insects, or physical damage
- Control board for burned terminals or surge damage
Technician Note
Mighty Mule installation documentation specifically warns against splicing power wires or modifying the battery harness. Replace a damaged harness with the correct assembly instead of joining wires with temporary connectors.
Connect the red lead to the positive battery terminal and the black lead to the negative battery terminal. Reversed polarity can open a fuse or damage the control board. Secure the harness so it cannot be pinched by the control-box cover or pulled against sharp metal edges.
Before Ordering Checklist
- Confirm that the operator is an MM571, MM571W, MM572, or MM572W.
- Compare the original harness with part number RP1014.
- Inspect the control-board and battery terminal connections.
- Check the required cable routing between the battery box and control box.
- Determine whether the existing battery terminals are damaged.
- Confirm whether the harness or the battery itself has failed.
- Do not substitute the RP1013 external battery harness.
- Confirm whether the item is retail RP1014 or bulk-pack SR-RP1014.
Installation and Safety Notes
Turn the gate operator off and disconnect the transformer or solar charging source before servicing the battery circuit. Disconnect the battery before removing the original harness. Prevent tools or loose wires from contacting both battery terminals.
Route the replacement harness through the intended control-box access point. Maintain correct polarity and make sure each connection is tight without damaging the terminal. Do not splice, extend, shorten, or otherwise modify the battery harness.
After installation, inspect the fuse and verify that the control board recognizes the battery and charging source. Test the complete gate system and all required entrapment-protection devices before returning the operator to service.
If wiring is burned, polarity is unclear, the fuse repeatedly opens, or the battery charging circuit does not operate correctly, have the system inspected by a qualified gate or low-voltage technician.
Product Questions and Answers
Which Mighty Mule gate operators use the RP1014 battery harness?
The RP1014 is confirmed for the Mighty Mule MM571 and MM572 operator families, including the current MM571W single-gate and MM572W dual-gate models.
Is the RP1014 compatible with MM371W or MM372W operators?
No confirmed compatibility is listed for the MM371W or MM372W. Those operator families are commonly associated with the separate RP1013 external battery harness.
Does the RP1014 include a replacement battery?
No. The standard RP1014 package contains the internal battery harness only. The battery, battery enclosure, fuse, control board, and charging equipment are not included.
Is the RP1014 the same as the RP1013 battery harness?
No. RP1014 is the internal harness for the MM571 and MM572 families. RP1013 is an external harness for different Mighty Mule operator applications and should not be substituted automatically.
Can a damaged RP1014 harness be spliced or extended?
Mighty Mule warns against splicing power wires or modifying the battery harness. Replace a damaged harness with the correct assembly rather than making an improvised repair.
Will the RP1014 fix an operator that has no power?
It may correct an open, loose, corroded, or damaged battery connection. No-power symptoms can also be caused by a discharged battery, blown fuse, failed control board, reversed polarity, or charging-system fault.
How should the RP1014 connect to the battery?
The red harness lead connects to the positive battery terminal and the black lead connects to the negative terminal. Confirm polarity before powering the operator.
What should be checked if the battery harness becomes hot?
Turn the operator off and disconnect the charging source and battery. Check for loose terminals, corrosion, damaged wire, reversed polarity, a short circuit, or excessive current. Burned or overheated wiring should be inspected by a qualified technician.
