Miller Edge AW12A NEMA 4 Air-Wave Switch Technical Details

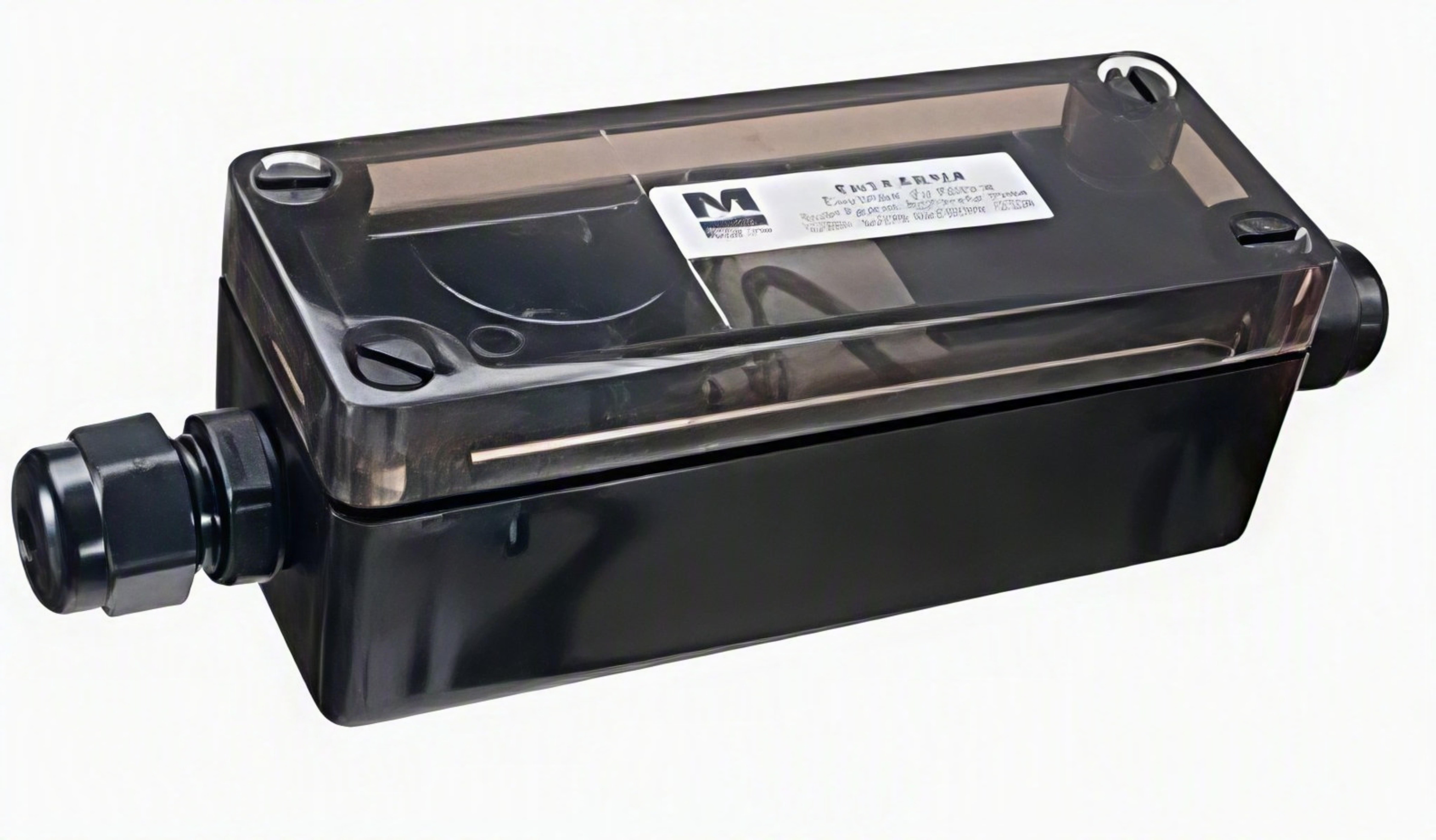

The Miller Edge AW12A is a non-monitored pneumatic Air-Wave switch installed in a NEMA 4 polycarbonate enclosure. It is commonly used with compatible Miller Edge Air-Wave sensing edges and treadles where compression of an air hose must be converted into an electrical control signal.
When the connected edge, treadle, or air hose is compressed, the resulting pressure wave travels to a diaphragm inside the AW12A. The diaphragm changes the electrical contact so a compatible commercial door, gate, or industrial control system can provide its programmed stop, reverse, open, close, light, or alarm response.
What the AW12A Switch Does
The AW12A serves as the interface between a pneumatic sensing element and the operator control circuit. The sensing edge or treadle creates an air-pressure pulse, and the enclosed AW10 switch converts that pressure into a momentary electrical contact.
The switch is factory configured for 2-wire normally open operation. It may be changed to normally closed operation by repositioning the internal air tube and readjusting sensitivity according to Miller Edge instructions.
Compatible With
- Miller Edge Air-Wave configured sensing edges up to 60 feet long
- Miller Edge Air-Wave configured treadles
- Select commercial door operators accepting a non-monitored contact input
- Select older gate operators accepting a non-monitored sensing-edge input
- Secondary entrapment-detection inputs where permitted by the operator manufacturer
- Control circuits that remain within the published AW12A contact rating
Common Application Environments
- Wet or condensation-prone locations requiring a properly installed NEMA 4 enclosure
- Refrigerated or cold-storage door applications
- Cold climates
- High-vibration equipment or door installations
- Applications where a compatible pneumatic sensing edge is preferred
Important Non-Monitored Compatibility Warning
The AW12A does not provide 10K resistance, pulsed monitoring, wireless supervision, or another monitored safety signal. It must not replace a monitored sensing edge when the operator requires supervised entrapment protection.
Current Miller Edge guidance generally associates non-monitored Air-Wave configurations with pre-August 2010 commercial door operators, pre-2016 gate operators, or secondary safety inputs. These dates are general selection guidelines and do not guarantee compatibility with a specific operator.
Verify the operator manufacturer, complete model number, production date, control-board part number, input function, required contact state, and current operator manual before ordering.
Normally Open and Normally Closed Operation
The AW12A ships from the factory as a 2-wire normally open switch. In this configuration, compression of the connected Air-Wave edge causes the contact to close momentarily.
Normally closed operation requires moving the internal clear air tube from the center coupling to the side elbow and readjusting sensitivity according to Miller Edge instructions. The contact function is not changed simply by moving wires to different terminals.
After any sensitivity or contact-configuration change, test the complete system repeatedly to confirm reliable activation without nuisance trips from normal door movement or vibration.
Comparison With Similar Miller Edge Switches
- AW12A: AW10 pressure switch installed in a NEMA 4 polycarbonate enclosure.
- AW10: Air-Wave switch mechanism without an external protective enclosure.
- AW14: AW10 switch installed in a smaller NEMA 1 ABS enclosure.
- AW14-RF-K10: Wireless Air-Wave transmitter/switch and receiver system. Wireless components are not included with AW12A.
- PS20A: Pneumatic switch with a different pressure-switch design and hose arrangement.
Similar Parts That Are Not Automatically Interchangeable
- Monitored 10K sensing-edge terminations
- Pulsed monitored sensing-edge modules
- Wireless edge transmitters and receivers
- Pneumatic switches requiring a different hose size or pressure range
- AW14 installations using a NEMA 1 ABS enclosure
- Complete AW14K-series Air-Wave hose kits
- Direct motor or line-voltage switching devices
Features and Specifications
| Specification | Details |
| Brand | Miller Edge |
| Part Number | AW12A |
| Product Type | Air-Wave pressure switch in protective enclosure |
| Internal Switch | Miller Edge AW10 |
| Detection Technology | Pneumatic pressure |
| Monitoring Type | Non-monitored |
| Factory Configuration | 2-wire normally open |
| Available Contact Operation | Normally open or field-configured normally closed |
| Separate Supply Power | Not required for the mechanical switch mechanism |
| Maximum Contact Load | 0.5 amp at 220 VAC or 1 amp at 48 VDC |
| Terminal Type | 0.187-inch quick-connect tabs |
| Maximum Pneumatic Pressure | 3 PSI |
| Maximum Switch Frequency | 25 operations per second |
| Adjustable Sensitivity | 0.078 to 19.7 inches water column |
| Maximum Supported Edge Length | 60 feet |
| Operating Temperature | -49 F to +180 F |
| Mechanical Life | Minimum 1,000,000 operations |
| Enclosure Material | Polycarbonate |
| Enclosure Rating | NEMA 4 |
| Approximate Dimensions | 1-13/16 inches wide x 6-3/4 inches high x 1-3/4 inches deep with fittings |
| Approximate Weight | 4.5 ounces |
| Mounting | Integrated screw tabs |
| Manufacturer Warranty | 2 years, subject to current Miller Edge warranty terms |
Package Contents
- One Miller Edge AW12A Air-Wave switch assembly
- AW10 pressure switch installed in a NEMA 4 polycarbonate enclosure
The standalone AW12A should not be represented as a complete sensing-edge kit. Gum rubber hose, sensing-edge extrusion, end plugs, hose adapters, coil cords, junction boxes, retracting reels, wireless equipment, and operator interface hardware are sold separately unless specifically included by the seller.
Related Parts and Air-Wave Components
- RAH-375, RAH-500, and RAH-750 gum rubber air hose
- P-50, P-50H, P-75, and P-75H hose plugs
- 218-27-18 barbed elbow connector
- JB-02 junction box
- C182-series coil cords
- Compatible Miller Edge Air-Wave sensing-edge profiles
- Compatible Miller Edge Air-Wave treadles
Technician Note
The NEMA 4 enclosure provides greater environmental protection than the AW14 NEMA 1 enclosure, but the completed installation depends on proper mounting, sealed fittings, protected tubing, and suitable field wiring. A damaged enclosure, loose fitting, or unsealed entry can reduce environmental protection.
The sensing hose and all pneumatic connections must remain airtight. A split hose, loose plug, blocked tube, leaking fitting, incorrect sensitivity setting, or excessive vibration can cause missed activations or nuisance reversals.
The AW12A contact is intended to signal a compatible operator control input. Do not connect it directly to a motor or another load exceeding the published contact rating.
Before Ordering Checklist
- Record the operator manufacturer, model number, manufacture date, and control-board number.
- Confirm that the operator permits a non-monitored Air-Wave input.
- Determine whether normally open or normally closed operation is required.
- Verify that the control circuit remains within the AW12A contact rating.
- Confirm that a NEMA 4 polycarbonate enclosure is appropriate for the mounting location.
- Identify the required sensing-edge profile, air hose, plugs, connectors, and wiring accessories.
- Determine whether a coil cord, retracting reel, junction box, or wireless connection is required.
- Confirm that all required monitored entrapment-protection devices remain installed and operational.
Installation and Safety Advisory
Installation, sensitivity adjustment, contact conversion, wiring, and testing must follow the current Miller Edge instructions, operator manufacturer instructions, applicable electrical codes, and current door or gate safety requirements.
Never use the AW12A to bypass a monitored safety input or conceal a sensing-edge fault. Do not connect the switch directly to machinery or loads beyond its published contact rating.
A qualified commercial door, gate, low-voltage, or industrial-controls technician should complete the work when the contact type, operator input, enclosure installation, circuit voltage, or required safety response is unclear.
Product Questions & Answers
What is the Miller Edge AW12A?
The AW12A is an AW10 pneumatic Air-Wave switch installed in a NEMA 4 polycarbonate enclosure. It converts an air-pressure pulse from a compatible sensing edge or treadle into an electrical contact signal.
Is the AW12A a monitored sensing-edge switch?
No. The AW12A is non-monitored and does not provide 10K resistance, pulsed monitoring, wireless supervision, or another monitored safety signal.
Does the AW12A ship normally open or normally closed?
The AW12A is factory configured as a 2-wire normally open switch. It can be converted to normally closed operation by repositioning the internal air tube and readjusting sensitivity according to Miller Edge instructions.
What is the difference between AW12A and AW14?
Both use the AW10 pressure-switch mechanism. AW12A installs it in a NEMA 4 polycarbonate enclosure, while AW14 uses a smaller NEMA 1 ABS enclosure.
What sensing-edge length can the AW12A support?
Miller Edge specifies compatibility with Air-Wave configured sensing edges up to 60 feet. Hose condition, airtight connections, sensitivity adjustment, and the complete application must still be checked.
Does the AW12A include an Air-Wave sensing edge or rubber hose?
No. The standalone AW12A is the enclosed pressure-switch assembly. Hose, plugs, sensing-edge material, coil cords, junction boxes, and other installation components are separate.
Can the AW12A be connected directly to a door or gate motor?
No. The AW12A is intended to signal a compatible operator control input. Its contacts are limited to 0.5 amp at 220 VAC or 1 amp at 48 VDC, and an interface relay may be required for other loads.
What should be checked when an AW12A causes missed activations or nuisance reversals?
Check the sensing hose for leaks or blockage, verify all plugs and fittings, confirm the N.O. or N.C. configuration, inspect the wiring, and readjust sensitivity. Do not bypass the operator safety circuit during troubleshooting.
