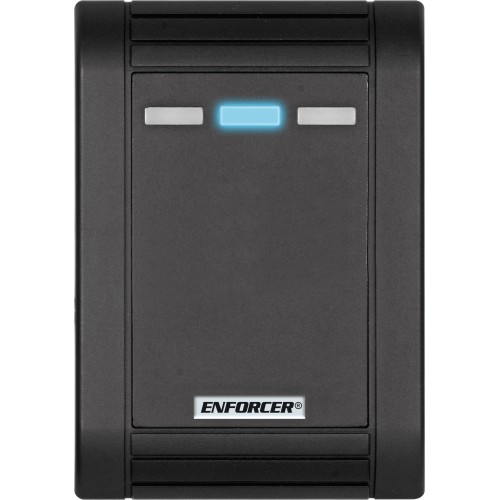

The PR-B1124-PQ is the reader-only style member of the SECO-LARM Bluetooth access controller family. It is used where authorized users will present compatible 125 kHz proximity credentials or use app-based access rather than entering codes on a keypad. Like the keypad versions, it is more than just a reader; it includes Bluetooth management and a relay output so it can operate a compatible low-voltage access point in many standalone designs. The cleaner reader face is helpful for office entries, amenity rooms, controlled interior/exterior doors, and pedestrian access points. Fitment depends on whether the job needs card/fob-only style access, whether Bluetooth administration is acceptable, and whether the lock or gate input can be controlled through the PR-B1124-PQ relay output.
This unit is best for card/fob or app access. Choose a keypad model instead when users need to enter PIN codes directly at the device.
Lock power, gate inputs, request-to-exit devices, and life-safety release requirements should be reviewed by a qualified access-control technician before installation.
No. It is a proximity reader style Bluetooth access controller. Use a SK-B series keypad model if PIN entry is required.
It is designed for EM 125 kHz proximity credentials, so cards and fobs must match that technology.
Yes, when the gate lock or operator has a compatible low-voltage access-control input and the system is wired correctly.
It should not be treated as a generic Wiegand reader for every panel. It is a Bluetooth access controller with its own relay output.
It is managed locally with the SECO-LARM SL Access app over Bluetooth range.
