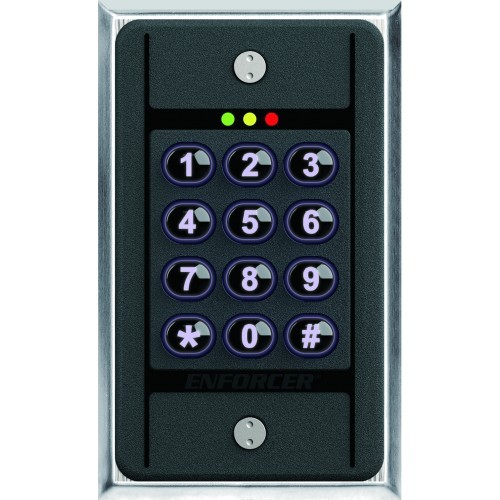

SECO-LARM SK-B111-PQ ENFORCER Bluetooth Indoor Single-Gang Keypad with Prox
The SK-B111-PQ combines a keypad, 125 kHz proximity reader, Bluetooth programming, and a relay output into one indoor single-gang access controller. This is useful for offices, interior secured rooms, equipment rooms, pedestrian entries, and protected gate-house locations where a standalone controller can directly operate a lock relay or control input. Instead of programming only from keypad sequences, the unit is managed through SECO-LARM SL Access app features while keeping data stored locally on the device. Fitment matters because SK-B111-PQ is the indoor format; if the keypad will be outdoors, exposed to weather, mounted on a mullion, or installed on a post, another model in the SECO-LARM Bluetooth family may be more appropriate.
Compatible With
- Low-voltage door access control applications using an electric strike, maglock, door release, or relay-controlled input within rating
- Gate operators with an appropriate low-voltage open or access input when wired through the correct relay terminals
- Request-to-exit buttons and door sensor inputs supported by the controller wiring
- SECO-LARM SL Access app administration within Bluetooth range
- EM 125 kHz proximity credentials such as compatible SECO-LARM PR-K1K1-AQ keyfobs and PR-K1S1-A cards when prox is used
- Not a cloud access system, not a Wiegand reader output for every third-party access panel unless specifically supported by the model
- Indoor protected locations requiring single-gang mounting
- Related outdoor alternatives: SK-B141-PQ single-gang weather-resistant keypad and SK-B241-PQ mullion keypad
Features and Specifications
| Manufacturer | SECO-LARM |
|---|
| Product Type | Bluetooth access controller keypad with prox |
|---|
| Part Number | SK-B111-PQ |
|---|
| Application | Indoor single-gang access control |
|---|
| Operating Voltage | 9-25 VDC |
|---|
| Output | Form C relay, 2.0A at 30 VDC |
|---|
| Proximity Technology | EM 125 kHz |
|---|
| Inputs | Egress input and door sensor input |
|---|
| Programming | SL Access app over Bluetooth |
|---|
| Mount Style | Indoor single-gang |
|---|
| Operating Temperature | -4 to 122 deg F |
|---|
Also Known As / Related Part Numbers
- SK-B111-PQ
- SKB111PQ
- SK-B111
- ENFORCER Bluetooth indoor keypad with prox
- SECO-LARM Bluetooth access controller indoor single-gang
- Related: SK-B141-PQ
- Related: SK-B241-PQ
- Related: PR-B1124-PQ
- Related credentials: PR-K1K1-AQ and PR-K1S1-A
Technician Note
Use this indoor model only where the device is protected from weather. For exterior pedestrian gate posts, storefront mullions, or exposed door frames, compare the IP-rated SECO-LARM Bluetooth controller models before ordering.
Before Ordering Checklist
- Confirm indoor single-gang mounting is correct.
- Confirm a 9-25 VDC power source is available.
- Confirm the lock or gate input is within the relay rating.
- Confirm EM 125 kHz credentials are being used if prox access is needed.
- Confirm the administrator will manage the unit with the SL Access app.
Professional Advisory
Access-control devices should be wired so egress, fire/life-safety, and required gate safety systems continue to operate correctly. Use a qualified low-voltage access-control technician for lock power, gate inputs, and code-sensitive installations.
Product Questions and Answers
Is the SK-B111-PQ for outdoor use?
No. It is the indoor single-gang Bluetooth keypad with proximity reader. Use an outdoor-rated model when the device will be exposed to weather.
Does it need a separate access-control panel?
In many standalone applications it can control the relay output directly, but the complete lock, power, and life-safety design must be verified.
What type of prox cards does it use?
It uses EM 125 kHz proximity credentials, such as compatible SECO-LARM cards or keyfobs.
Can it open a gate operator?
Yes, it may be used with a gate operator that accepts a low-voltage access-control input, as long as it is wired correctly and does not bypass safety devices.
Is programming cloud based?
No. SECO-LARM Bluetooth controllers are managed locally through the SL Access app within Bluetooth range.
