Transmitter Solutions TRALUN318DOPW1K-C Luna 318 MHz MicroCLIK Compatibility Details

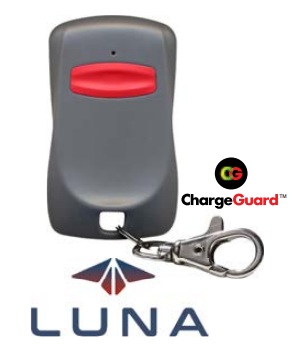

The Transmitter Solutions TRALUN318DOPW1K-C is a Luna programmable one-button keychain transmitter operating at 318 MHz. Transmitter Solutions documents this transmitter for programmable telephone entry, security, and access control systems using a compatible 318 MHz frequency receiver.
The transmitter uses a DoorKing MicroCLIK compatible protocol and is manufactured with a factory-set serial number. It must be programmed into the compatible system memory before use. This is not a DIP-switch transmitter.
What This Transmitter Does
The TRALUN318DOPW1K-C sends a factory-numbered 318 MHz wireless credential to a compatible receiver. The one-button W1K-C version provides Button A for the authorized receiver or access-control function assigned by the installed system.
The transmitter code, facility code, receiver programming, and access permissions must match the way the property or access control system is administered. Matching 318 MHz frequency alone does not guarantee compatibility.
All Verified Compatibility
- DoorKing MicroCLIK 8066-080 one-button transmitter applications.
- DoorKing MicroCLIK compatible 318 MHz radio applications using the supported credential protocol.
- Transmitter Solutions RECTSWIE318-D receiver.
- 318 MHz DoorKing transmitter applications identified by Transmitter Solutions.
- 318 MHz Monarch transmitter applications identified by Transmitter Solutions.
- 318 MHz Stingray transmitter applications identified by Transmitter Solutions.
- 318 MHz RCS transmitter applications identified by Transmitter Solutions.
- 318 MHz Chameleon transmitter applications identified by Transmitter Solutions.
- Programmable telephone entry systems using a compatible 318 MHz receiver and supported transmitter protocol.
- Security systems using a compatible 318 MHz receiver and supported transmitter protocol.
- Access control systems using a compatible 318 MHz receiver and supported transmitter protocol.
- 26-bit Wiegand access control systems when the transmitter is received through the documented RECTSWIE318-D receiver.
DoorKing MicroCLIK 8066-080 Compatibility
The current Transmitter Solutions product page specifically lists MicroCLIK 8066-080 compatibility for TRALUN318DOPW1K-C. Current DoorKing product reference documentation identifies 8066-080 as the one-button MicroCLIK transmitter.
This one-button relationship is important because DoorKing separately identifies 8067-080 as a two-button MicroCLIK transmitter and 8068-080 as a three-button MicroCLIK transmitter. Confirm the required button count and receiver system before ordering.
The Luna is a Transmitter Solutions product using a MicroCLIK compatible protocol. Do not assume it is the same packaged DoorKing product as 8066-080. The documented relationship is radio and credential compatibility for the applicable system.
RECTSWIE318-D Receiver and 26-Bit Wiegand Applications
The current Transmitter Solutions Luna manual specifically states that the RECTSWIE318-D receiver operates with the TRALUN318DOP transmitter family. The receiver provides a 26-bit Wiegand format output for access control equipment equipped to accept 26-bit Wiegand input.
The TRALUN318DOPW1K-C transmitter itself does not have a wired Wiegand connection. It sends its 318 MHz credential to the compatible receiver. The receiver provides the documented Wiegand interface to the access control panel.
Confirm that the access control system accepts 26-bit Wiegand and that the applicable facility code, transmitter serial number, user record, and access permissions are correctly configured.
Factory-Set Serial Number and Facility Code Requirements
Each TRALUN318DOP transmitter is manufactured and sold with a different factory-set serial number. The transmitter must be programmed into the receiving system memory before use.
For an HOA, gated community, apartment property, commercial site, storage facility, or other managed access system, verify the required facility code and transmitter-number arrangement before ordering additional remotes. The property administrator or access control provider may require transmitters from an assigned credential range.
A transmitter can have the correct 318 MHz frequency and still fail to operate if its credential information has not been authorized in the system.
Manufacturer Documentation Conflict on Code and Facility-Code Capacity
The current Transmitter Solutions Luna manual contains conflicting capacity figures. The general product description states that the transmitted code includes a 14-bit security code allowing up to 16,384 combinations and 6 bits of facility code allowing up to 64 facility codes.
The technical specification table in the same manual instead lists 65,536 combinations and 16 facility codes. The current model-specific cut sheet lists 16,384 combinations and 64 facility codes.
Because the official manufacturer documents conflict, verify the actual facility code and serial-number requirements for the installed access system. Do not order managed transmitter blocks based only on a published combination count.
ChargeGuard Battery Status Indicator
The TRALUN318DOPW1K-C includes the Transmitter Solutions ChargeGuard three-color battery-status circuit.
- Green LED - normal battery level and normal transmitter range.
- Orange LED - attention level with reduced remaining battery service and lower operating range expected.
- Red LED - low battery level; replace the battery.
The manufacturer troubleshooting information identifies reduced operating range as a reason to replace the transmitter battery. An illuminated ChargeGuard LED does not confirm that the transmitter is enrolled in the access system or that the receiver is compatible.
One-Button Luna Model
The current Luna family manual identifies three TRALUN318DOP button configurations:
The W1K-C suffix identifies the exact one-button model. Confirm the number of access functions required before changing to a two-button or four-button version.
Similar Parts Are Not Automatically Interchangeable
TRALUN318DOPW2K-C and TRALUN318DOPW4K-C belong to the same documented Luna MicroCLIK compatible family but provide two and four physical buttons. Do not substitute another button configuration without checking the receiver programming and required access functions.
Other Luna transmitters may also operate at 318 MHz while using a different protocol suffix or receiver family. Match the complete part number, not just the Luna housing and frequency.
The Luna family is available in combo transmitter versions with proximity credential support. Transmitter Solutions identifies combo configurations for HID, Mango, AWID, and Securakey protocols. Do not assume the standard TRALUN318DOPW1K-C includes a proximity coil or proximity credential.
318 MHz DIP-switch transmitters are not automatic replacements for this programmable MicroCLIK compatible transmitter. Fixed-code DIP-switch systems use a different coding and programming method.
Features and Specifications
| Feature | Specification |
| Brand | Transmitter Solutions |
| Product Family | Luna |
| Part Number | TRALUN318DOPW1K-C |
| Product Type | Programmable wireless keychain transmitter |
| Operating Frequency | 318 MHz |
| Number of Buttons | 1 |
| Button | Button A, red |
| Protocol | DoorKing MicroCLIK compatible |
| Programming Type | Programmable into compatible system memory |
| Transmitter Numbering | Factory-set serial number |
| Documented Receiver | RECTSWIE318-D |
| Receiver Output Format | 26-bit Wiegand through RECTSWIE318-D |
| DoorKing Compatibility Reference | MicroCLIK 8066-080 one-button transmitter application |
| Battery | 1 x 12V 23A or A23 battery |
| Documented Battery Life | 18 to 24 months |
| Battery Status Feature | ChargeGuard three-color LED |
| Code Combinations | Manufacturer documents conflict: 16,384 in the general description and model cut sheet; 65,536 in the manual specification table |
| Facility Codes | Manufacturer documents conflict: up to 64 in the general description and model cut sheet; 16 in the manual specification table |
| Operating Temperature | -20 F to 131 F (-20 C to 55 C) |
| Overall Dimensions | 2.51 x 1.52 x 0.58 inches |
| Weight | 1 oz. (20 g) |
| FCC ID | SU7318TRS8 |
| Warranty | 24 months from transmitter manufacturing date per manufacturer manual |
Also Known As and Related Product References
- TRALUN318DOPW1K-C - exact one-button Luna transmitter model.
- TRALUN318DOPWxK-C - manufacturer family designation covering one-, two-, and four-button versions.
- TRALUN318DOPW2K-C - related two-button Luna model.
- TRALUN318DOPW4K-C - related four-button Luna model.
- RECTSWIE318-D - manufacturer-documented receiver for this Luna transmitter family with 26-bit Wiegand output.
- DoorKing MicroCLIK 8066-080 - manufacturer-identified compatible one-button transmitter application.
- SU7318TRS8 - FCC ID documented in the Luna transmitter manual.
Technician Note
The biggest ordering mistake with this transmitter is matching only 318 MHz. The TRALUN318DOPW1K-C uses a MicroCLIK compatible credential protocol and a factory-set serial number. Check the receiver, facility code, and managed-system credential requirements before ordering. Also verify the W1K-C suffix because this is the one-button version. The W2K-C and W4K-C models are different button configurations.
Before Ordering Checklist
- Verify the exact part number TRALUN318DOPW1K-C.
- Confirm 318 MHz receiver operation.
- Confirm DoorKing MicroCLIK compatible protocol is required.
- Verify MicroCLIK 8066-080 compatibility when replacing that one-button transmitter application.
- Record the exact installed receiver model.
- For the documented Transmitter Solutions receiver application, verify RECTSWIE318-D.
- Confirm the required facility code with the property or access control administrator.
- Confirm the required transmitter serial-number or credential assignment.
- Confirm one-button operation is required.
- Do not substitute the W2K-C or W4K-C version solely because the housing looks similar.
- Do not substitute a 318 MHz DIP-switch transmitter.
- Do not assume the standard transmitter includes a proximity credential or proximity coil.
- Verify the exact combo transmitter model when HID, Mango, AWID, or Securakey proximity support is required.
- Confirm the access control panel accepts 26-bit Wiegand when using the RECTSWIE318-D receiver output.
Programming and Service Notes
The transmitter must be programmed into the memory of the compatible receiver or access control system. Use the enrollment instructions for the exact installed receiver, telephone entry system, or access control platform.
Do not attempt to program this transmitter by copying DIP-switch positions. Each transmitter has a factory-set serial number. Managed properties should add the transmitter through the authorized credential-management procedure for the site.
The manufacturer specifies one 12V 23A or A23 battery. Battery access is through the rear battery door after removing the fixing screw. Install the replacement battery with the polarity shown in the transmitter battery compartment.
If the LED illuminates but the system does not respond, verify that the transmitter has been programmed into system memory. If operating range is reduced, the manufacturer recommends replacing the transmitter battery. Receiver antenna, radio interference, or access control system faults may also require diagnosis.
Professional Advisory
Do not bypass photo eyes, monitored safety edges, entrapment protection, emergency access, door reversal systems, or operator safety circuits while troubleshooting a transmitter or receiver problem. If the receiver, Wiegand wiring, access control panel, or gate operator has an unclear electrical or safety-circuit fault, have the system inspected by a qualified gate or access control technician.
Product Questions and Answers
Is TRALUN318DOPW1K-C compatible with DoorKing MicroCLIK 8066-080 applications?
Yes. The current Transmitter Solutions product page specifically lists MicroCLIK 8066-080 compatibility for TRALUN318DOPW1K-C. Current DoorKing product reference documentation identifies 8066-080 as its one-button MicroCLIK transmitter. Verify the installed 318 MHz receiver and facility-code requirements before ordering.
Which Transmitter Solutions receiver is documented to work with TRALUN318DOPW1K-C?
The current Luna family manual specifically identifies the RECTSWIE318-D receiver as operating with the TRALUN318DOP transmitter family. That receiver provides a 26-bit Wiegand output for access control equipment equipped to accept 26-bit Wiegand input.
Can TRALUN318DOPW1K-C be used with DoorKing, Monarch, Stingray, RCS, or Chameleon 318 MHz applications?
Transmitter Solutions lists compatibility with 318 MHz DoorKing, Monarch, Stingray, RCS, and Chameleon transmitter applications. The installed receiver must still support the compatible transmitter protocol and credential format, so verify the receiver model and facility-code requirements before ordering.
Does TRALUN318DOPW1K-C use DIP switches?
No. The transmitter is programmable and is manufactured with a factory-set serial number. It must be enrolled into compatible system memory. Do not use DIP-switch programming instructions from a different 318 MHz transmitter family.
What battery does the TRALUN318DOPW1K-C use?
The manufacturer specifies one 12V 23A or A23 battery with a documented battery life of approximately 18 to 24 months. Reduced operating range is a manufacturer-listed reason to replace the transmitter battery.
Does the TRALUN318DOPW1K-C have ChargeGuard?
Yes. The transmitter includes a ChargeGuard three-color battery-status LED. Green indicates normal battery level, orange indicates an attention level with reduced remaining battery service, and red indicates a low battery that should be replaced.
Why do Transmitter Solutions documents list different code-combination and facility-code capacities?
The current Luna manual contains conflicting figures. Its general description and model cut sheet identify 16,384 code combinations and up to 64 facility codes, while the manual specification table lists 65,536 combinations and 16 facility codes. Verify the required facility code and transmitter credential range for the actual access system before ordering managed transmitter blocks.
Does TRALUN318DOPW1K-C include an HID, AWID, Mango, or Securakey proximity credential?
Do not assume the standard TRALUN318DOPW1K-C includes a proximity credential. Transmitter Solutions states that the Luna family is available in combo versions with a proximity coil for HID, Mango, AWID, or Securakey protocols. Verify the exact combo transmitter part number when proximity access is required.
