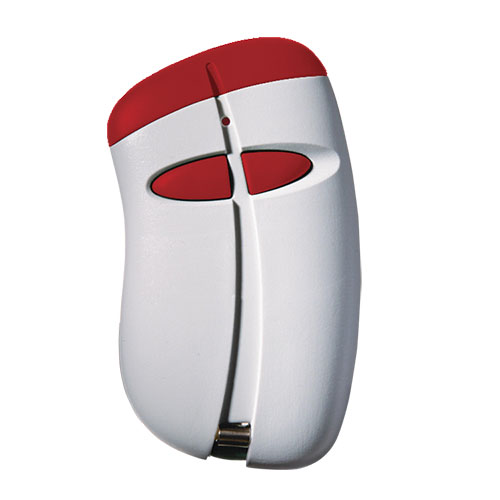

Transmitter Solutions 318DOPW2V Stingray 318 MHz MicroCLIK Compatibility Details
The Transmitter Solutions TRARAY318DOPW2V is the Gate Openers Unlimited catalog SKU for the Stingray transmitter identified by Transmitter Solutions as model 318DOPW2V. This is a programmable two-button visor transmitter operating at 318 MHz using a DoorKing MicroCLIK-compatible protocol.
Transmitter Solutions specifically identifies the 318DOPW2V as compatible with the DoorKing MicroCLIK 8067-080 two-button transmitter application. Current DoorKing product reference documentation also identifies 8067-080 as its two-button MicroCLIK transmitter.
What This Transmitter Does
The 318DOPW2V sends an individually numbered 318 MHz wireless credential to a compatible receiver. The transmitter provides two red buttons identified as Button A and Button B.
This is a programmable transmitter and does not use a DIP-switch code bank. Each transmitter is manufactured with a factory-set sequence number and facility code. The facility code and sequence number must be programmed into compatible system memory.
Two physical buttons do not automatically mean the installation controls two gates. MicroCLIK receiver programming can be configured to respond to specific transmitter buttons or button combinations, so verify the existing button functions before replacing a programmed transmitter.
All Verified Compatibility and Applications
- DoorKing MicroCLIK 8067-080 two-button transmitter applications.
- Compatible 318 MHz programmable telephone entry systems using the supported MicroCLIK-compatible protocol and transmitter credential format.
- Compatible 318 MHz security systems using the supported MicroCLIK-compatible protocol and transmitter credential format.
- Compatible 318 MHz access control systems using the supported MicroCLIK-compatible protocol and transmitter credential format.
- Compatible receiver systems capable of handling the manufacturer-documented 26-bit credential and the same 318 MHz MicroCLIK-compatible protocol.
DoorKing MicroCLIK 8067-080 Compatibility
The current Transmitter Solutions product page and exact model-specific cut sheet specifically identify DoorKing MicroCLIK 8067-080 compatibility for the Stingray 318DOPW2V.
Current DoorKing product reference documentation identifies 8067-080 as the two-button MicroCLIK transmitter. DoorKing separately identifies 8066-080 as the one-button MicroCLIK transmitter and 8068-080 as the three-button MicroCLIK transmitter.
The Stingray is a Transmitter Solutions product using a MicroCLIK-compatible protocol. It should not be described as the same physical or packaged product as the original DoorKing 8067-080. The verified relationship is compatibility with the documented two-button MicroCLIK transmitter application.
MicroCLIK Receiver Button Programming
DoorKing documents multiple button responses for two-button MicroCLIK transmitters. Depending on the receiver and its programming, the system may respond to Button 1, Button 2, or both buttons pressed together.
A receiver can also be configured so one receiver responds to one transmitter button while a second receiver responds to another button from the same multi-button transmitter.
Before replacing an existing two-button transmitter, record which button or button combination operates each authorized function. Do not assume Button A and Button B will automatically perform the same functions after a receiver or access control system has been reprogrammed.
Factory-Set Facility Code and Sequence Number
The Transmitter Solutions manual states that each Stingray 318DOPWxV transmitter is manufactured and sold with a different factory-set sequence number and facility code.
The transmitter facility code and sequence number must be programmed into compatible system memory. This credential method is different from copying DIP-switch positions from an older fixed-code transmitter.
For an HOA, gated community, apartment property, commercial facility, parking application, or other managed access system, verify the required facility code and transmitter-number arrangement before ordering additional transmitters.
A correct 318 MHz transmitter can still fail to operate if its facility code or individual sequence number has not been accepted and programmed into the receiving system.
26-Bit System Application Caution
The Transmitter Solutions manual describes the 318DOPWxV transmitter family for use with compatible receivers capable of receiving the documented 26-bit input and access control systems equipped with the same protocol.
The exact model cut sheet also identifies Wiegand 26-bit programmable telephone entry, anti-burglar, and access control applications.
Do not interpret this as universal compatibility with every access control panel that has a 26-bit Wiegand input. The installation also requires a compatible 318 MHz radio receiver that recognizes the MicroCLIK-compatible transmitter protocol. A Wiegand input alone does not provide 318 MHz radio compatibility.
318 MHz Range and Radio Performance
The manufacturer documents ASK modulation and a free-space range of 60 to 120 yards. Actual installed range can be lower because of receiver antenna location, metal gate operator cabinets, buildings, radio interference, and other site conditions.
If an existing transmitter suddenly operates only at close range, check the 23A battery and receiver antenna installation before assuming the transmitter model is incorrect.
Two-Button Stingray Configuration
The manufacturer manual identifies two Stingray 318DOP visor transmitter models:
- 318DOPW1V - one-button Stingray transmitter with red Button A.
- 318DOPW2V - two-button Stingray transmitter with red Buttons A and B.
The exact 318DOPW2V is the two-button version. Verify both current button functions before replacing an existing transmitter or changing to the one-button model.
Similar Parts Are Not Automatically Interchangeable
318DOPW1V is the related one-button Stingray visor transmitter. Transmitter Solutions identifies that model with DoorKing MicroCLIK 8066-080 compatibility. It is not the correct button configuration when the system requires the two-button 8067-080 application.
TRALUN318DOPW2K-C is a Luna 318 MHz two-button keychain transmitter using a DoorKing MicroCLIK-compatible protocol. It is a different transmitter family, housing style, battery system, and product model. Do not automatically treat the Luna and Stingray as the same packaged product even though both have documented MicroCLIK-compatible applications.
318LIP transmitters are Linear-compatible models. The DOP and LIP suffixes identify different transmitter protocol applications. Do not substitute a 318LIP model for the 318DOPW2V based only on 318 MHz frequency and two-button appearance.
318 MHz DIP-switch transmitters are not automatic replacements for the programmable 318DOPW2V. The Stingray uses a factory-set sequence number and facility code that must be programmed into compatible system memory.
Features and Specifications
| Feature | Specification |
| Brand | Transmitter Solutions |
| Product Family | Stingray |
| Catalog SKU | TRARAY318DOPW2V |
| Manufacturer Model | 318DOPW2V |
| Product Type | Programmable wireless visor transmitter |
| Operating Frequency | 318 MHz |
| Number of Buttons | 2 |
| Button Identification | Button A and Button B |
| Button Color | Red |
| Enclosure Color | Light gray per manufacturer manual |
| Mounting Style | Visor transmitter |
| Protocol | DoorKing MicroCLIK compatible |
| Programming Type | Programmable into compatible system memory |
| Transmitter Numbering | Factory-set sequence number and facility code |
| Code Combinations | 16,384 |
| Facility Codes | 64 |
| Modulation | AM / ASK |
| Rated ERP | 50 to 100 mW per manufacturer manual |
| Battery | 1 x 12V type 23A alkaline battery |
| Documented Battery Life | 12 to 18 months |
| Current Consumption | 20 mA |
| Documented Free-Space Range | 60 to 120 yards |
| Operating Temperature | -4 F to 131 F (-20 C to 55 C) |
| Overall Dimensions | 3.26 x 1.88 x 0.62 inches |
| Weight | 1 oz. (20 g) |
| Verified DoorKing Application | MicroCLIK 8067-080 two-button transmitter application |
| FCC ID | Manufacturer 318DOPWxV manual lists SU7318LIPWV |
| Warranty | 60 months from transmitter manufacturing date per manufacturer manual |
FCC ID Documentation Note
The official Transmitter Solutions 318DOPWxV manual prints FCC ID SU7318LIPWV. The FCC identifier contains "LIP" even though the manual is specifically titled for the 318DOPW1V and 318DOPW2V transmitter family.
The model-specific 318DOPW2V cut sheet does not provide an FCC ID. Because the manufacturer's own manual uses this identifier, do not alter or infer a different FCC ID from the DOP model suffix. Verify the label on the actual transmitter when an FCC identifier is required for service records.
Also Known As and Related Product References
- TRARAY318DOPW2V - Gate Openers Unlimited catalog SKU.
- 318DOPW2V - Transmitter Solutions manufacturer model.
- Stingray 318DOPW2V.
- DoorKing MicroCLIK 8067-080 - manufacturer-verified compatible two-button transmitter application.
- 318DOPW1V - related one-button Stingray transmitter documented for MicroCLIK 8066-080 compatibility.
- TRALUN318DOPW2K-C - separate Luna two-button MicroCLIK-compatible keychain transmitter family.
Package and Battery Check
The manufacturer specifies one 12V type 23A alkaline battery as the transmitter power source and identifies the product as a visor transmitter. Current public manufacturer documentation does not clearly list every retail package component or specifically confirm a new battery or separate visor accessory in every package. Confirm current package contents when those items are specifically required.
Technician Note
The biggest ordering mistake with the 318DOPW2V is matching only "318 MHz" and "2 button." Check the DOP suffix and MicroCLIK protocol. The Stingray is specifically documented for the DoorKing MicroCLIK 8067-080 two-button application. A Linear-compatible 318LIP transmitter or an older 318 MHz DIP-switch remote is not an automatic replacement. Also record whether the existing system uses Button A, Button B, or a two-button combination before changing transmitters.
Before Ordering Checklist
- Verify the exact manufacturer model 318DOPW2V.
- Confirm the Gate Openers Unlimited catalog SKU TRARAY318DOPW2V.
- Confirm the installed receiver operates at 318 MHz.
- Confirm the receiver supports the DoorKing MicroCLIK-compatible transmitter protocol.
- Verify MicroCLIK 8067-080 compatibility when replacing that two-button transmitter application.
- Record the exact installed receiver or access control system model.
- Confirm the required facility code.
- Confirm the factory-set sequence-number or credential requirements.
- Confirm two physical transmitter buttons are required.
- Record the current function of Button A and Button B.
- Check whether the existing receiver uses a simultaneous two-button response.
- Do not use DIP-switch programming instructions.
- Do not substitute a Linear-compatible 318LIP transmitter for the DOP model.
- Do not assume the Luna DOP keychain model is the same physical or packaged product as the Stingray visor model.
- Confirm current package contents when battery or visor accessory inclusion is important.
Programming and Service Notes
The transmitter facility code and factory-set sequence number must be programmed into compatible system memory. Use the enrollment procedure for the exact installed receiver, telephone entry system, or access control platform.
Do not attempt to program the 318DOPW2V by copying DIP-switch positions. The transmitter does not use a DIP-switch code bank.
The manufacturer specifies one 12V type 23A alkaline battery. Battery access is through the sliding battery door. Install the battery with the polarity shown in the transmitter enclosure. The red LED should illuminate when either transmitter button is pressed.
If the transmitter LED does not illuminate, the manufacturer troubleshooting information directs the user to replace the transmitter battery. If the LED is on but the system does not receive the signal, verify that the transmitter is programmed into the system. Reduced operating range is also a manufacturer-listed reason to replace the battery.
Professional Advisory
Do not bypass photo eyes, monitored safety edges, entrapment protection, emergency access, fire access, door reversal systems, or operator safety circuits while troubleshooting a transmitter or receiver problem. Unclear receiver wiring, Wiegand interfaces, operator inputs, or access control electrical faults should be inspected by a qualified gate, garage door, or access control technician.
Product Questions and Answers
Is TRARAY318DOPW2V the same transmitter model as 318DOPW2V?
TRARAY318DOPW2V is the Gate Openers Unlimited catalog SKU, while Transmitter Solutions identifies the Stingray transmitter itself as model 318DOPW2V. Verify the exact 318 MHz model and installed receiver before ordering.
Is the Stingray 318DOPW2V compatible with DoorKing MicroCLIK 8067-080?
Yes. The current Transmitter Solutions product page and exact 318DOPW2V cut sheet specifically identify DoorKing MicroCLIK 8067-080 compatibility. Current DoorKing reference documentation identifies 8067-080 as its two-button MicroCLIK transmitter.
Does the TRARAY318DOPW2V use DIP switches?
No. The 318DOPW2V is a programmable transmitter with a factory-set facility code and sequence number. That credential information must be programmed into compatible system memory.
Can Button A and Button B operate different MicroCLIK receiver functions?
Compatible MicroCLIK receiver programming can respond to individual buttons and, on applicable receiver models, specific button combinations. Record the existing Button A, Button B, and any simultaneous two-button functions before replacing or reprogramming the transmitter.
Can the 318DOPW2V work with any access panel that accepts 26-bit Wiegand?
No universal compatibility should be assumed. Manufacturer documentation describes 26-bit programmable system applications, but the installation also requires a compatible 318 MHz radio receiver that recognizes the MicroCLIK-compatible transmitter protocol. A Wiegand input alone does not provide 318 MHz radio compatibility.
What battery and range are documented for the Stingray 318DOPW2V?
The manufacturer specifies one 12V type 23A alkaline battery with documented battery life of approximately 12 to 18 months. The cut sheet and manual list a free-space range of 60 to 120 yards, although actual range can be reduced by antenna placement, structures, and radio interference.
Is TRALUN318DOPW2K-C the same transmitter as the Stingray 318DOPW2V?
No. Both are Transmitter Solutions two-button 318 MHz transmitter models using a MicroCLIK-compatible protocol, but the Luna is a keychain transmitter and the Stingray is a visor transmitter. They are separate product families with different housings and battery systems, so verify the exact replacement model and package requirements.
What should I check if the 318DOPW2V LED lights but the gate does not respond?
Verify that the transmitter facility code and sequence number are programmed into the compatible system and confirm the receiver uses the correct 318 MHz MicroCLIK-compatible format. If enrollment and compatibility are correct, receiver antenna, interference, wiring, or access control system problems may require diagnosis by a qualified technician.
