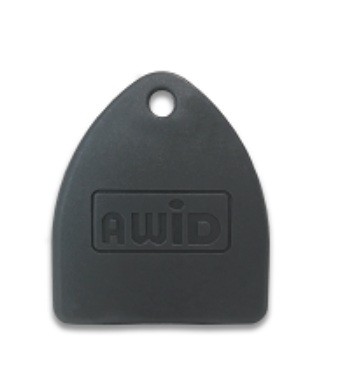

AWID KT-G-0 Proximity Key Tag Fob with AWID Logo - 50 Pack
The AWID KT-G-0 is a key-ring style proximity credential used on AWID 125 kHz access-control systems. It gives residents, employees, service vendors, or staff a small credential that can be carried with keys instead of a full card badge. In the field, this style of fob is often used at pedestrian gates, lobby doors, pool gates, equipment rooms, parking office doors, and other controlled entries where the reader is already tied into an access-control panel.
This is not a universal key fob for every proximity system. The important fitment details are the reader technology, credential format, facility/site code, and card number sequence. AWID proximity credentials are commonly associated with AWID Prox-Linc 125 kHz readers, and they must be ordered/programmed to match the existing site database. A fob that looks identical can still fail if it is encoded in the wrong format or numbering range.
Compatible With
Use with select AWID 125 kHz proximity systems when the reader and access-control panel are programmed for the same credential format.
- AWID 125 kHz Prox-Linc proximity reader systems
- Select AWID SR-2400, MM-6800, SP-6820, KP-6840 and similar AWID low-frequency proximity reader installations when ordered in the correct format
- Access-control panels that accept Wiegand output from compatible AWID proximity readers
- Pedestrian gates, card-reader doors, pool gates, community entries, employee entrances and amenity doors using AWID proximity credentials
- Existing AWID credential populations where facility code, site code, bit format and numbering range are matched
Features & Specifications
| Manufacturer | AWID |
|---|
| Product Type | Proximity key tag / key fob credential |
|---|
| Part Number | KT-G-0 |
|---|
| Common Full Part Number | KT-AWID-G-0 |
|---|
| Pack Size | 50 credentials |
|---|
| Technology | 125 kHz AWID proximity / Prox-Linc style credential |
|---|
| Application | Key-ring access credential for AWID-compatible access control systems |
|---|
| Power | Passive credential, no battery required |
|---|
| Typical Use | Pedestrian access, gated communities, building doors, amenity areas and staff access |
|---|
| Important Note | Format, facility code and numbering must match the existing site |
|---|
Also Known As / Related Part Numbers
These numbers are commonly searched with this AWID key tag family. Verify the programmed format and facility code before treating any number as an exact replacement.
- KT-G-0
- KT-AWID-G-0
- AWI-KT-AWID-G-0
- KT AWID G 0
- KT-AWID-G
- AWID Prox-Linc KT
- AWID key tag fob
- AWID 125 kHz key fob
Technician Note
When a new fob will not read, the issue is often not the fob housing. Check that the reader is an AWID low-frequency proximity reader and that the credential batch was ordered with the correct format, facility code, and starting number for the access-control database.
Before Ordering Checklist
- Confirm the existing credential technology is AWID 125 kHz proximity, not AWID UHF, HID, MIFARE, or another format.
- Match the facility/site code and card number sequence used by the access-control software.
- Verify that the reader can read AWID Prox-Linc style credentials.
- Confirm the order quantity and any programming requirements before submitting the batch.
- For managed properties, coordinate with the property manager or access-control vendor before distributing new fobs.
Important Ordering Warnings
AWID proximity key tags and AWID UHF key tags are not the same technology. Do not substitute KT-G-0 for KT-UHF-0-0 or other UHF credentials unless the reader system is changed and the credential format is confirmed.
Professional Advisory
For new reader wiring, panel programming, access-control database changes, or uncertain site conditions, use a qualified access-control or gate technician. Do not bypass security controls or safety equipment to make a credential or reader appear to work.
Product Questions & Answers
Is the AWID KT-G-0 a UHF gate tag?
No. KT-G-0 is used as an AWID 125 kHz proximity key tag. AWID UHF systems use different credentials such as KT-UHF-0-0, CS-UHF-0-0, or GR-UHF-0-0.
Will this fob work with any AWID reader?
It may be used with select AWID low-frequency proximity readers when the credential format and site coding match. It is not a universal replacement for every AWID reader or every access-control system.
Why does the facility code matter?
The access-control panel usually checks the credential format, facility code, and card number. A fob can physically read at the reader but still be rejected if the programming does not match the site.
Can this be used for pool gates or outdoor entry points?
Yes, it is commonly used for pool gates and outdoor pedestrian entries when paired with a compatible AWID proximity reader and properly managed access-control system.
What should I compare before reordering?
Compare the existing part number, reader technology, facility code, bit format, number range, and any property-management programming requirements before ordering a new 50 pack.
