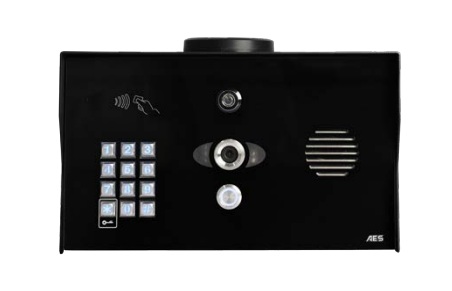

AES OPYN-PRO-IP-PBK-US, 1 button Opyn Pro IP Powder Coat Pedestal Callbox with Keypad and Prox 125k Reader. (Horizontal Surface Mount)
The AES OPYN-PRO-IP-PBK-US is a 1-button Opyn Pro IP video callbox with keypad, built-in 125 kHz proximity reader, powder-coated finish, and pedestal-mounted configuration. It is designed for properties that need a professional video entry station with visitor calling, app-based access control, keypad entry, proximity credential access, and IP/LAN or Wi-Fi connectivity.
This model is the powder-coated pedestal-mounted version in the Opyn Pro IP range. It should be matched to installations where the entry station will be installed in a pedestal-style configuration for vehicle gate, driveway, commercial entry, residential entry, or managed access use.
This is the complete Opyn Pro IP callbox model identified by part number OPYN-PRO-IP-PBK-US. It should not be confused with shell-only replacement parts, indoor OPYN monitors, OPYN Multi systems, separate router accessories, replacement PCBs, power supplies, credentials, or mounting accessories sold separately.
What This Callbox Does
The OPYN-PRO-IP-PBK-US provides a single-call-button video entry station for compatible gate, door, and controlled-entry applications. Visitors can press the call button to reach an authorized user, while approved users can manage access through supported Opyn app functions, keypad codes, proximity credentials, and relay outputs where configured.
- 1-button Opyn Pro video callbox
- IP version for LAN, Ethernet, or Wi-Fi based installations where supported
- Powder-coated pedestal-mounted configuration
- Integrated keypad for code entry where configured
- Built-in 125 kHz proximity reader according to supplied title and current product listing
- 2 relay outputs commonly listed for Opyn Pro models
- Night vision and LED luminance commonly listed for Opyn Pro models
- Voice control integration with Alexa / Google where configured and supported
- LAN and Wi-Fi connectivity options where supported by the installed configuration
- Used for residential, commercial, gated entry, and managed access applications
Common Opyn Pro Features
Feature availability depends on the installed model, app setup, firmware, network connection, power method, credential setup, and administrator configuration. Always verify the current AES documentation and supplied unit before final installation.
- Video calling from the entry point
- Opyn app management where configured
- Single call button visitor operation
- Keypad code access
- 125 kHz proximity credential access where compatible credentials are enrolled
- 2 relay control for compatible gate, door, or lock release applications
- Night vision support
- LED luminance for night-time visibility
- LAN and Wi-Fi support where available and configured
- Voice control integration where configured and supported
Compatible With
The AES OPYN-PRO-IP-PBK-US is intended for compatible Opyn Pro installations where a 1-button IP powder-coated pedestal-mounted video callbox with keypad and 125 kHz prox reader is required. It should be used only where the site layout, network path, relay wiring, power method, and access control requirements support this specific model.
- Residential gate entry applications requiring a 1-button video callbox
- Commercial gate or door entry applications requiring Opyn Pro IP connectivity
- Driveway and vehicle gate applications where a pedestal-style callbox is preferred
- Controlled-entry locations where powder-coated steel construction is preferred
- Sites using a suitable LAN, Ethernet, or Wi-Fi network connection
- Applications requiring keypad entry and compatible 125 kHz prox credential access
- Gate, door, or lock release applications where relay wiring is properly designed and confirmed
Important Compatibility Warning
Do not order this model by appearance alone. Opyn Pro models vary by network type, mounting style, shell configuration, finish, region, keypad/prox configuration, and accessory package. The OPYN-PRO-IP-PBK-US should be matched by exact part number, powder-coated pedestal requirement, IP requirement, and installed system design.
- Confirm the exact part number is OPYN-PRO-IP-PBK-US.
- Confirm the project requires the IP version, not the 4G cellular version.
- Confirm the project requires the powder-coated PBK pedestal version.
- Confirm the project does not require the stainless steel PSK pedestal version.
- Confirm the project does not require a flush-mount FBK version.
- Confirm the supplied title's "Horizontal Surface Mount" wording does not conflict with the required pedestal configuration.
- Confirm LAN, Ethernet, Wi-Fi, router, firewall, and internet requirements before installation.
- Confirm the required credential technology is 125 kHz proximity.
- Confirm the power method, relay wiring, gate operator input, door hardware, and fail-safe or fail-secure behavior.
- Confirm whether 24V DC, 48V DC, PoE, or another approved power method will be used with the supplied unit.
- Confirm this is not being ordered instead of a shell assembly, replacement board, monitor, router accessory, power supply, or OPYN Multi system.
OPYN-PRO-IP-PBK-US Compared With Similar AES Models
| AES Model | General Use | Important Difference |
| OPYN-PRO-IP-PBK-US | 1-button Opyn Pro IP powder-coated pedestal video callbox | This page item; IP version with powder-coated pedestal configuration |
| OPYN-PRO-4G-PBK-US | 1-button Opyn Pro 4G powder-coated pedestal video callbox | Same powder-coated pedestal family, but 4G cellular instead of IP/LAN or Wi-Fi based operation |
| OPYN-PRO-IP-PSK-US | 1-button Opyn Pro IP stainless steel pedestal video callbox | Same IP family, but stainless steel pedestal instead of powder-coated pedestal |
| OPYN-PRO-4G-PSK-US | 1-button Opyn Pro 4G stainless steel pedestal video callbox | 4G cellular and stainless steel pedestal; different network and finish configuration |
| OPYN-PRO-IP-FBK-US | 1-button Opyn Pro IP flush-mount video callbox | Same IP family, but flush-mount instead of pedestal-mount |
| OPYN-MULTI models | Multi-resident touchscreen entry systems | Different product family for multi-resident directory applications; not the same as this 1-button Opyn Pro model |
| OPYN-MON-US / OPYN-MON-10-US | Indoor touchscreen monitors | Indoor monitor accessories; not the outdoor / entry-side callbox |
Similar Parts That Are Not Automatically Interchangeable
- OPYN-PRO-4G-PBK-US: Related 4G powder-coated pedestal Opyn Pro callbox. It should not be substituted where the IP model is required.
- OPYN-PRO-IP-PSK-US: Related IP stainless steel pedestal Opyn Pro callbox. It should not be substituted where powder-coated PBK finish is required.
- OPYN-PRO-4G-PSK-US: Related 4G stainless steel pedestal Opyn Pro callbox. It differs in both network method and finish configuration.
- OPYN-PRO-IP-FBK-US: Related IP flush-mount Opyn Pro callbox. It should not be substituted where pedestal mounting is required.
- OPYN Pro shell assemblies: Shell assemblies are replacement housings only and do not replace the complete OPYN-PRO-IP-PBK-US callbox.
- OPYN-PRO-MAIN-PCB and OPYN-PRO-CAM-KIT: Replacement electronics kits for service work. They are not complete callbox assemblies.
- OPYN-MULTI systems: OPYN-MULTI is for multi-resident touchscreen directory applications and should not be treated as the same product family as this 1-button Opyn Pro callbox.
- 125 kHz credentials: Prox cards and tags are user credentials only. They do not include the reader, callbox, app setup, or access programming.
Not Intended For
- Replacing an OPYN-MULTI multi-resident video callbox
- Replacing a standard Opyn 4G or IP callbox
- Replacing an OPYN indoor monitor
- Replacing only an OPYN Pro shell assembly
- Replacing only the main PCB, camera PCB, keypad, prox reader, router, antenna, or power supply
- Use where a 4G cellular model is required instead of an IP model
- Use where a stainless steel PSK pedestal version is required instead of powder-coated PBK
- Use where a flush-mount FBK model is required instead of pedestal mount
- Installing without confirming network connection, power, relay wiring, and app setup
- Bypassing access control authorization, emergency access, fire access, monitored gate safety devices, or operator safety circuits
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | AES / AES Global |
| Part Number | OPYN-PRO-IP-PBK-US |
| Product Family | Opyn Pro / OPYN-PRO |
| Product Type | 1-button video callbox / video intercom / telephone entry system |
| Network Type | IP, LAN, Ethernet, and Wi-Fi capable according to current listing language |
| Mount Style | Pedestal mount according to current product data |
| Finish / Material | Powder-coated steel according to current product listing |
| Call Button | 1 button |
| Keypad | Included according to supplied title and current product listing |
| Proximity Reader | 125 kHz prox reader included according to supplied title and current product listing |
| Relays | 2 relays commonly listed for Opyn Pro models |
| Relay Load | 3A, 30V DC / 250V AC appears in current supplier specifications; verify before wiring loads |
| Night Vision | Listed for Opyn Pro models |
| LED Luminance | Night-time LED luminance commonly listed for Opyn Pro models |
| Voice Integration | Alexa / Google voice control integration appears in current Opyn Pro listings; verify active setup requirements |
| LAN / Wi-Fi | LAN and Wi-Fi are commonly listed for Opyn Pro; verify network setup on the supplied unit |
| Power Note | 24V DC / 48V DC and 48V PoE references appear in current product data; verify supplied power method before installation |
| SD Card Compatibility | Up to 128GB appears in current supplier specifications; verify supported card type before use |
| User Capacity | Unlimited users are commonly listed where supported by the active configuration and app setup |
Also Known As / Related Part Numbers
- AES OPYN-PRO-IP-PBK-US
- OPYN-PRO-IP-PBK-US
- OPYNPROIPPBKUS
- AES Opyn Pro IP Powder-Coated Pedestal Callbox
- AES Opyn Pro IP Video Callbox with Keypad
- AES Opyn Pro IP Callbox with 125 kHz Prox Reader
- AES 1-Button Opyn Pro IP Video Callbox
- AES Opyn Pro Powder-Coated IP Video Intercom
- AES Opyn Pro PBK IP Callbox
- OPYN-PRO-4G-PBK-US - related 4G powder-coated pedestal version, not the same IP model
- OPYN-PRO-IP-PSK-US - related IP stainless steel pedestal version, not the same powder-coated version
- OPYN-PRO-4G-PSK-US - related 4G stainless steel pedestal version, not the same IP powder-coated model
- OPYN-PRO-IP-FBK-US - related IP flush-mount version, not the same pedestal model
- OPYN-PRO-IP-PBK-SH - related shell assembly only if available; verify before treating as a complete callbox
Related Parts and Accessories
- AES PROXCARD-125K-AES where compatible 125 kHz card-style credentials are required
- AES AES-PROX-TAG where compatible 125 kHz keyring-style prox tags are required
- AES OPYN-MON-US 7-inch Android touchscreen monitor where a compatible indoor monitor is needed
- AES OPYN-MON-10-US 10-inch Android touchscreen monitor where a larger compatible indoor monitor is required
- AES CAT6BC-2M or CAT6BC-10M patch cables where Ethernet patching is required during setup or network connection
- AES IL-POE-PSU-US where a compatible PoE installation requires the correct PoE injector
- AES WIFIA-2-KIT or WIFIA-10-KIT where a compatible Wi-Fi antenna accessory is required
- Network switches, routers, surge protection, conduit, cable glands, low-voltage power accessories, relay wiring, and mounting hardware where required by site conditions
Technician Note
The most important field checks for this model are mounting style, finish, and network path. OPYN-PRO-IP-PBK-US should be treated as the powder-coated pedestal-mounted IP version. If the site needs the 4G cellular powder-coated pedestal model, verify OPYN-PRO-4G-PBK-US instead. If the site needs stainless steel finish, verify the PSK version. If the site needs flush mount, verify the FBK version.
An IP Opyn Pro installation depends on a reliable network path at the final mounted location. Before installation, confirm LAN cable route, full-copper Ethernet cable quality, switch/router access, Wi-Fi signal if used, IP addressing, firewall/router settings, PoE or DC power method, and internet availability if app/cloud features will be used.
Before Ordering, Confirm
- Confirm the exact part number is OPYN-PRO-IP-PBK-US.
- Confirm the project requires the IP version.
- Confirm the project requires the powder-coated PBK pedestal configuration.
- Confirm the site does not require OPYN-PRO-4G-PBK-US cellular/4G instead.
- Confirm the site does not require OPYN-PRO-IP-PSK-US stainless steel pedestal instead.
- Confirm the site does not require OPYN-PRO-IP-FBK-US flush mount instead.
- Confirm the supplied title's "Horizontal Surface Mount" wording does not conflict with the actual required mount style.
- Confirm LAN, Ethernet, Wi-Fi, router, firewall, IP addressing, and internet requirements.
- Confirm whether LAN, Wi-Fi, or another approved network method will be used as the primary connection method.
- Confirm power supply, 24V DC / 48V DC or 48V PoE requirements, surge protection, and cable routing.
- Confirm relay wiring, gate operator input type, door hardware requirements, and fail-safe or fail-secure behavior.
- Confirm 125 kHz credential requirements before ordering prox cards or prox tags.
- Confirm app setup, administrator access, user management, keypad code setup, and credential enrollment requirements.
- Confirm local code, fire access, emergency access, and UL 325 gate safety requirements before connecting to an automated gate.
Installation and Service Notes
- Confirm the network path at the final mounted location before installation.
- Confirm the pedestal mounting location, height, approach angle, vehicle reach, pedestrian reach, conduit path, and service clearance before drilling or pouring concrete.
- Confirm power method and voltage before connecting the unit.
- Use proper sealing, weather protection, conduit, surge protection, and cable strain relief for outdoor installations.
- Keep low-voltage communication and relay wiring separated from high-voltage gate operator wiring where practical.
- Use full copper Ethernet cable for network and PoE connections where required.
- Confirm LAN, Wi-Fi, app connection, IP settings, and router/firewall settings before final turnover.
- Program keypad codes, prox credentials, app users, and access permissions only through authorized administrative access.
- Test calling, video, audio, keypad entry, prox credential access, relay output, app notifications, and any voice integration features used on the site.
- Confirm that emergency access, fire access, monitored photo eyes, safety edges, loop functions, and operator safety inputs still work after the system is connected.
Professional Advisory
Opyn Pro installation, IP network setup, app configuration, credential enrollment, relay wiring, gate operator integration, and low-voltage troubleshooting should be handled by a qualified gate access, low-voltage, network, or access control technician. Do not use Opyn Pro programming, relay wiring, credential setup, keypad access, app control, or voice integration to bypass monitored photo eyes, safety edges, emergency access equipment, fire access equipment, authorized access rules, or gate operator safety circuits.
Product Questions & Answers
What is the AES OPYN-PRO-IP-PBK-US?
The AES OPYN-PRO-IP-PBK-US is a 1-button Opyn Pro IP video callbox with keypad, 125 kHz prox reader, powder-coated finish, and pedestal-mounted configuration.
Is this the powder-coated pedestal Opyn Pro model?
Yes. OPYN-PRO-IP-PBK-US should be treated as the powder-coated pedestal version. Verify the mount and finish carefully because similar Opyn Pro models are available in stainless steel, 4G, and flush-mount configurations.
Does this model include a 4G router?
No. OPYN-PRO-IP-PBK-US is the IP version. If the site requires cellular internet through a 4G router, verify the OPYN-PRO-4G-PBK-US model instead.
No. OPYN-PRO-4G-PBK-US is the related 4G powder-coated pedestal model. OPYN-PRO-IP-PBK-US is the IP powder-coated pedestal model.
No. OPYN-PRO-IP-PSK-US is the related IP stainless steel pedestal version. OPYN-PRO-IP-PBK-US is the powder-coated pedestal version.
What credential type does this model use?
The supplied title and current listing identify this model with a 125 kHz proximity reader. Confirm the required credential type before ordering AES 125 kHz prox cards or prox tags.
Does this callbox include an indoor monitor?
No. Indoor OPYN monitors such as OPYN-MON-US and OPYN-MON-10-US are separate accessories unless your actual package specifically states otherwise.
Can this callbox control a gate or door?
It can be connected to compatible gate, door, or lock release circuits where the relay wiring is properly designed and confirmed. Do not connect it in a way that bypasses required gate safety, emergency access, or fire access equipment.
