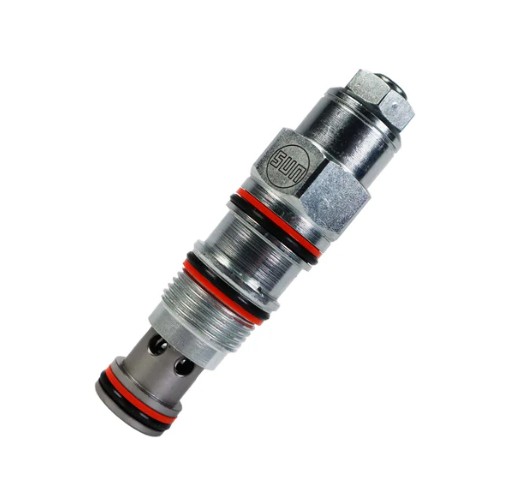

HySecurity MX000657, VALVE, COUNTERBALANCE, 3:1
The HySecurity MX000657 is a replacement 3:1 counterbalance / brake valve for select HySecurity and Nice HySecurity hydraulic gate operator systems. It is commonly listed as VALVE, COUNTERBALANCE, 3:1 and also appears in HySecurity parts documentation as Valve, Brake.
This valve is used in compatible hydraulic circuits where controlled motion, load holding, or braking behavior is required. In a hydraulic gate operator, counterbalance and brake valves help manage hydraulic flow and pressure so the operator can control movement instead of allowing the gate, arm, or hydraulic mechanism to coast, drift, drop, or move unpredictably.
MX000657 should be matched by HySecurity part number, operator model, hydraulic manifold, valve cavity, pilot ratio, pressure range, and parts diagram. Do not order by the words counterbalance valve alone. HySecurity uses different brake valves, relief valves, directional valves, check valves, valve coils, manifolds, and pump pack assemblies depending on operator family and hydraulic configuration.
What This Counterbalance Valve Does
The MX000657 counterbalance valve helps control hydraulic movement in the compatible operator circuit. A 3:1 counterbalance valve uses pilot pressure to help open the valve in a controlled way while still providing load-holding and braking support in the hydraulic system.
If the counterbalance valve is leaking, sticking, contaminated, misadjusted, installed in the wrong cavity, or matched to the wrong hydraulic system, the operator may coast, creep, stop poorly, move unevenly, chatter, jerk, or show inconsistent hydraulic braking behavior. Those symptoms can also be caused by contaminated hydraulic fluid, a bad brake manifold, relief valve issues, worn hydraulic motors, leaking hoses, weak pump output, incorrect pressure settings, poor gate movement, or controller-related problems.
Compatible With
The HySecurity MX000657 is intended for select HySecurity / Nice HySecurity hydraulic operator applications where this 3:1 counterbalance / brake valve is specified. Compatibility depends on the exact operator model, hydraulic manifold, valve cavity, pilot ratio, pressure setting, pump pack layout, and current HySecurity parts documentation.
- Select HySecurity StrongArm M30 Standard Model applications where MX000657 is listed as the brake valve
- Select HySecurity StrongArm M50 Standard Model applications where MX000657 is listed as the brake valve
- Select StrongArm hydraulic pump pack or manifold applications where the parts diagram lists MX000657
- Select HySecurity hydraulic braking or load-control circuits where MX000657 is specified by the parts diagram
- Operator repairs where the original valve is marked, listed, or cross-referenced as MX000657
Do not assume MX000657 fits every HySecurity hydraulic operator. Similar HySecurity hydraulic systems may use different brake valves, counterbalance valves, relief valves, check valves, directional valves, pilot ratios, pressure settings, or manifold cavity designs.
MX000657 vs. Related Hydraulic Valves
HySecurity hydraulic systems use several valve types that may look similar but perform different jobs. MX000657 should not be substituted for another valve unless the parts diagram confirms it.
- MX000657: 3:1 counterbalance / brake valve.
- MX000174: Related 3000 PSI relief valve reference used in select HySecurity hydraulic systems, not the same part.
- MX000171: Related check valve reference used in select HySecurity hydraulic systems, not the same part.
- MX001257: Related directional valve with manual function, not the same part.
- MX000184: Related 24VDC directional valve coil, not the same part.
Brake valves, relief valves, check valves, directional valves, and coils are not interchangeable just because they are located in the same hydraulic system. Match the part number, valve function, cavity, pilot ratio, and operator documentation before ordering.
Related Brake Manifold Notes
MX000657 may be encountered during brake manifold or hydraulic stopping-system service. It should be kept separate from complete brake manifold kits.
- MX000137: Braking manifold assembly / brake kit commonly associated with select SlideDriver 30F and 40 applications.
- MX000143: Braking manifold assembly / brake kit commonly associated with select SlideDriver 50VF2/3, 80, and 200 applications.
- MX000657: Individual counterbalance / brake valve used where the parts diagram specifies this valve.
If the repair requires the complete brake manifold assembly, ordering the individual valve may not provide all of the needed seals, fittings, sockets, valves, or hardware.
Not Intended For
- Universal hydraulic valve replacement
- Replacing a relief valve, check valve, directional valve, solenoid coil, or manual release valve
- Replacing complete brake manifold kits such as MX000137 or MX000143 unless the individual valve is specifically required
- Replacing the pump pack, hydraulic motor, hose kit, reservoir, or controller board
- Correcting poor stopping caused by gate drag, worn drive wheels, low fluid, contaminated fluid, leaking hoses, weak pump output, or incorrect limit setup without diagnosis
- Changing pressure settings or hydraulic braking behavior without the current HySecurity service procedure
- Opening or removing a hydraulic valve from a pressurized circuit
Important Compatibility Warning
MX000657 should be selected by HySecurity part number and hydraulic circuit location, not by appearance alone. The valve cavity, pilot ratio, pressure setting, adjustment type, and hydraulic function must match the original valve.
If the operator is coasting, drifting, dropping, stopping hard, or moving unevenly, do not assume the counterbalance valve is the only failed component. Check the full hydraulic system, including the gate hardware, pump output, brake manifold, relief valve, check valve, directional valve, hoses, quick disconnects, hydraulic motor, fluid condition, and controller commands.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX000657 |
| Product Type | Counterbalance / brake valve |
| Common Description | VALVE, COUNTERBALANCE, 3:1 |
| Alternate Description | Valve, Brake |
| Pilot Ratio | 3:1 counterbalance valve ratio as listed |
| System Area | Hydraulic brake, load-control, pump pack, or manifold circuit depending on operator model |
| Primary Function | Helps control hydraulic load holding, braking, and controlled movement in compatible circuits |
| Documented Operator Reference | StrongArm M30/M50 Standard Models where HySecurity documentation lists MX000657 as Valve, Brake |
| Related Valve References | MX000174 relief valve, MX000171 check valve, MX001257 directional valve, and MX000184 valve coil are related hydraulic parts, not substitutes |
| Included Items | Counterbalance / brake valve only unless the current supplier package specifically includes seals, O-rings, adjustment cap, fittings, instructions, or manifold hardware |
| Not Included Unless Listed | Brake manifold, pump pack, hydraulic fluid, hoses, quick disconnects, relief valve, check valve, directional valve, valve coil, hydraulic motor, and operator hardware unless separately listed |
Also Known As / Related Part Numbers
- MX000657
- HySecurity MX000657
- Nice HySecurity MX000657
- HySecurity VALVE, COUNTERBALANCE, 3:1
- HySecurity Valve, Brake
- HySecurity 3:1 counterbalance valve
- HySecurity brake valve
- HySecurity hydraulic brake valve
- HySecurity load control valve
- HySecurity counterbalance brake valve
- HySecurity StrongArm brake valve
- HySecurity StrongArm M30 brake valve
- HySecurity StrongArm M50 brake valve
- HYS-MX000657, related distributor SKU format
- MX000137, related SlideDriver braking manifold assembly / brake kit, not the same part
- MX000143, related SlideDriver braking manifold assembly / brake kit, not the same part
- MX000174, related 3000 PSI relief valve, not the same part
- MX000171, related check valve, not the same part
- MX001257, related directional valve with manual function, not the same part
- MX000184, related directional valve coil, not the same part
Related Parts and Accessories
- HySecurity MX000174 relief valve where pressure relief service is required
- HySecurity MX000171 check valve where the endhead main check valve is the failed component
- mx001257-2-position-manual-directional-valve-cartridge.html">HySecurity MX001257 directional valve with manual function where directional hydraulic control is being serviced
- HySecurity MX000184 24VDC directional valve coil where coil failure is the issue
- mx000137-braking-manifold-assembly-slidedriver.html">HySecurity MX000137 braking manifold assembly for select SlideDriver 30F and 40 applications where the complete manifold kit is required
- mx000143-braking-manifold-assembly-slidedriver-50vf-80-200.html">HySecurity MX000143 braking manifold assembly for select SlideDriver 50VF2/3, 80, and 200 applications where the complete manifold kit is required
- Hydraulic fluid specified by the current HySecurity operator manual
- Hydraulic pressure gauge kit where brake or pressure behavior needs to be tested during diagnosis
- Hoses, quick disconnects, seals, fittings, and manifold parts where leakage or contamination is present
Technician Note
Counterbalance and brake valve issues should be diagnosed with the full hydraulic circuit in mind. A gate or arm that creeps, coasts, stops hard, or moves unevenly may have a valve issue, but it may also have low fluid, contaminated fluid, a leaking hose, a worn hydraulic motor, a bad check valve, incorrect relief behavior, a weak pump pack, or mechanical drag.
Do not adjust or replace a counterbalance valve without confirming the valve cavity, pilot ratio, and system pressure requirements. Incorrect valve selection or adjustment can cause unsafe movement, poor braking, heat buildup, equipment damage, or unreliable gate operation.
Before Ordering, Confirm
- Confirm the needed HySecurity part number is MX000657.
- Confirm the existing part is described as VALVE, COUNTERBALANCE, 3:1 or Valve, Brake.
- Confirm the operator model and serial number.
- Confirm the operator parts diagram lists MX000657 for the valve location.
- Confirm the valve cavity, pilot ratio, pressure range, adjustment style, and hydraulic function match the original valve.
- Confirm the repair does not require a complete braking manifold assembly such as MX000137 or MX000143 instead.
- Confirm the issue is not caused by a relief valve, check valve, directional valve, valve coil, hose leak, hydraulic motor, pump pack, or mechanical gate problem.
- Confirm whether seals, O-rings, adjustment cap, fittings, instructions, or manifold hardware are included or must be ordered separately.
Installation and Service Notes
Hydraulic valve service should be performed with the operator disabled, the gate or arm secured, and the hydraulic system handled according to the current HySecurity service procedure. Do not remove hydraulic valves from a pressurized circuit.
Keep the valve and manifold area clean during service. Dirt or metal particles inside a counterbalance valve or manifold can cause sticking, leakage, chatter, poor braking, or inconsistent movement. After replacement, test the operator through full movement and confirm controlled motion, proper stopping, leak-free operation, and working safety devices.
Professional Advisory
Counterbalance valve service can affect how a hydraulic gate operator holds and controls a load. A qualified HySecurity gate technician should handle this repair if the operator is drifting, dropping, coasting, stopping hard, leaking, or showing repeated hydraulic pressure problems.
Do not bypass brake valves, pressure controls, covers, guards, limits, monitored entrapment protection, photo eyes, safety edges, disconnects, or controller protections during hydraulic service. The operator should be fully tested after repair to confirm safe and predictable movement.
Product Questions & Answers
What is the HySecurity MX000657 used for?
The HySecurity MX000657 is a 3:1 counterbalance / brake valve used in select HySecurity hydraulic gate operator systems where the parts diagram lists this valve.
What does 3:1 mean on MX000657?
The 3:1 reference is the counterbalance valve pilot ratio. It is part of the valves hydraulic control behavior and should match the original valve specified by HySecurity.
What operators use MX000657?
HySecurity documentation lists MX000657 as a brake valve for StrongArm M30/M50 Standard Models. Other fitment should be verified by the operator parts diagram before ordering.
Is MX000657 the same as MX000174?
No. MX000657 is a counterbalance / brake valve. MX000174 is a related relief valve reference used in select HySecurity hydraulic systems. They are not interchangeable.
Is MX000657 included with a brake manifold kit?
It may be related to brake manifold service, but do not assume it is included with or replaces a complete brake manifold kit. Check whether the repair needs the individual valve or a full braking manifold assembly.
Can I adjust this counterbalance valve myself?
Counterbalance valve adjustment affects hydraulic braking and load control. It should be handled by a qualified HySecurity technician using the correct service procedure and pressure testing equipment.
