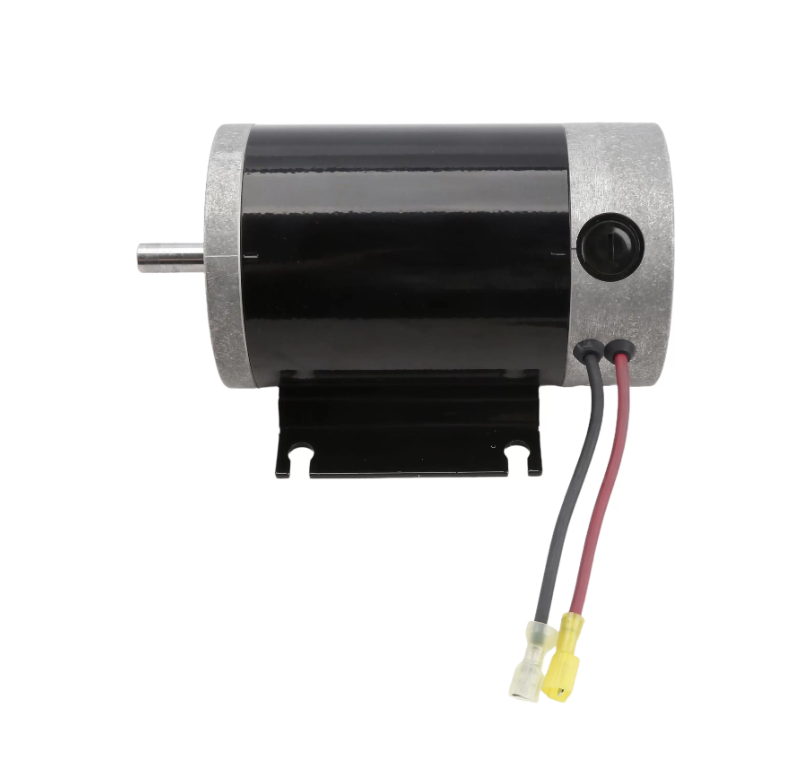

HySecurity MX001395 24VDC Motor Details
The HySecurity MX001395 is a replacement 24VDC electric motor used on HySecurity SwingSmart DC gate operators. Official HySecurity SwingSmart DC parts documentation lists MX001395 as Motor, Electric, 24VDC for SwingSmart DC models. Public distributor listings commonly describe this motor as a 24VDC, 350W, approximately 2700 RPM replacement motor for SwingSmart DC systems.
This motor is part of the SwingSmart DC drive system. The operator uses a 24VDC motor, motor pulley, drive belt, gearbox pulley, gearbox, taper clamp assembly, and gate arm hardware to move the swing gate. When the motor is weak, worn, burned, contaminated, or no longer running correctly, the operator may show symptoms such as weak gate movement, intermittent travel, motor stall, no motor output, excessive noise, arcing, overheating, or failure to move the gate under load.
The MX001395 motor should be matched by HySecurity part number and the correct SwingSmart DC parts diagram. This is not a complete gate operator, gearbox, control board, pulley kit, belt, arm assembly, battery, charger, or full drive assembly. It is a motor replacement component and should be installed only after confirming that the motor is the failed part and not a symptom of a gate, battery, charger, controller, belt, pulley, gearbox, or arm-geometry issue.
Compatible With
The HySecurity MX001395 electric motor is commonly associated with the following operator and service applications:
- HySecurity SwingSmart DC gate operators
- Nice HySecurity SwingSmart DC operator assemblies
- SwingSmart DC models where the parts diagram calls for MX001395
- SwingSmart DC motor replacement applications
- SwingSmart DC drive-system repairs involving the 24VDC motor and belt-drive assembly
- Replacement of an original HySecurity SwingSmart DC 24VDC motor identified as MX001395
Not Intended For
- HySecurity SlideSmart, SlideDriver, StrongArm, StrongArmPark, HydraSwing, HydraWedge, HydraLift, WedgeSmart, SwingRiser, or barrier operators unless the correct parts diagram specifically calls for MX001395.
- Replacing the SwingSmart DC gearbox, gearbox pulley, motor pulley, drive belt, taper clamp assembly, gate arm assembly, controller, battery, charger, or complete operator.
- Correcting a gate that is dragging, binding, sagging, hitting stops incorrectly, or overloading the operator.
- Universal motor replacement where voltage, wattage, RPM, shaft fit, pulley fit, mounting pattern, wiring, and control-board compatibility have not been verified.
- Fixing low-battery, charger, control board, limit switch, belt slip, pulley wear, gearbox, or arm-geometry problems unless those components are also diagnosed.
- Use on a different SwingSmart generation unless MX001395 is confirmed in the correct parts diagram.
Important Ordering Warnings
- Confirm the exact HySecurity part number before ordering. This listing is for MX001395.
- Official HySecurity parts documentation lists MX001395 as Motor, Electric, 24VDC for SwingSmart DC models.
- Public listings commonly describe MX001395 as a 24VDC, 350W, approximately 2700 RPM motor for SwingSmart DC systems.
- Do not confuse the motor with the gearbox, commonly listed separately as MX002005.
- Do not confuse the motor with the motor pulley, commonly listed separately as MX001403.
- Do not confuse the motor with the drive belt, commonly listed separately as MX001744.
- If the motor failed because the gate was binding, batteries were weak, the gearbox was damaged, or the drive system was misaligned, replacing only the motor may lead to repeat failure.
- Disconnect all power sources before servicing internal drive or electrical components.
Features & Specifications
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX001395 |
| Product Type | Electric Motor / Replacement Drive Motor |
| Common Description | Motor, Electric, 24VDC / 24VDC 350W 2700RPM Motor |
| Voltage | 24VDC |
| Power Rating | 350W, commonly shown in public distributor listings |
| Speed | Approximately 2700 RPM, commonly shown in public distributor listings |
| Compatible Operator Family | HySecurity SwingSmart DC, where MX001395 is shown in the parts diagram |
| Operator Type | Swing gate operator |
| Drive System Application | Motor power source for the SwingSmart DC belt, pulley, gearbox, and gate arm drive assembly |
| Operator Gearbox Reference | SwingSmart DC product information describes the operator drive as a 24VDC motor driving a 600:1 gearbox |
| Included Items | Replacement motor only, unless otherwise stated by the product listing |
| Related Gearbox | MX002005 SwingSmart DC gearbox is a related separate part, not included unless stated |
| Related Belt | MX001744 drive belt is a related separate part, not included unless stated |
| Related Motor Pulley | MX001403 24T motor pulley is a related separate part, not included unless stated |
| Important Notes | Verify operator model, parts diagram, motor condition, pulley condition, belt condition, gearbox condition, battery voltage, charger operation, and gate movement before ordering. |
Also Known As / Related Part Numbers
- HySecurity MX001395
- Nice HySecurity MX001395
- MX001395
- HySecurity Motor, Electric, 24VDC
- Motor, Electric, 24VDC
- HySecurity 24VDC Motor
- HySecurity 24VDC 350W Motor
- HySecurity 24VDC 350W 2700RPM Motor
- SwingSmart DC 24VDC Motor
- SwingSmart DC Replacement Motor
- Replacement Motor for SwingSmart DC Gate Operator
- Motor for HySecurity SwingSmart DC Systems
- MX002005 - related SwingSmart DC gearbox, not the motor
- MX001403 - related motor pulley, 24T, 9mm, not the motor
- MX001404 - related gearbox pulley, 36T, 15mm, not the motor
- MX001744 - related SwingSmart DC drive belt, not the motor
- MX001920 - related 24VDC motor brush kit, not the complete motor
- MX001743 - related taper clamp assembly, not the motor
Common Related Items
Depending on why the motor is being replaced, the following related components may also need to be inspected:
- Drive belt
- Motor pulley
- Gearbox pulley
- SwingSmart DC gearbox
- Motor brush kit
- Motor wiring and connectors
- Smart DC controller board
- Batteries and charger circuit
- Taper clamp assembly
- Gate arm assembly
- Limit switches and limit plate hardware
- Gate hinges, posts, stops, and arm geometry
Technician Note
A SwingSmart DC motor failure should be diagnosed as part of the full drive and power system. Before replacing the motor, check battery voltage under load, charger operation, control board motor output, motor wiring, drive belt, motor pulley, gearbox pulley, gearbox condition, taper clamp setting, and mechanical gate movement. A weak battery, bad charger, damaged gearbox, worn belt, seized gate, or binding arm can create symptoms that look like a failed motor.
If the motor is noisy, weak, hot, arcing, or intermittent, inspect the motor brushes and commutator condition as well. HySecurity MX001920 is commonly listed as the related 24VDC motor brush kit. If the motor has burned windings, heavy internal damage, seized bearings, water intrusion, or severe shaft damage, replacing the complete motor may be more appropriate than replacing brushes only.
Before Ordering, Confirm
- The required replacement part number is HySecurity MX001395.
- The operator is a compatible HySecurity SwingSmart DC model.
- The parts diagram calls for Motor, Electric, 24VDC - MX001395.
- The motor is the failed component and not only a symptom of battery, charger, controller, belt, pulley, gearbox, or gate problems.
- The motor pulley is not worn, cracked, loose, or damaged.
- The drive belt and gearbox pulley are not worn, misaligned, or damaged.
- The gearbox turns properly and is not the actual cause of the issue.
- The battery system and charger are operating correctly.
- The gate swings freely and does not bind, drag, hit the stop hard, or overload the operator.
- You are ordering the replacement motor only, not a complete gearbox, drive assembly, or operator.
Professional Advisory
Motor replacement involves internal electrical and drive components. Disconnect all power sources before service, including AC power, DC battery power, and any connected solar charging circuit. A swing gate can move unexpectedly if power remains connected or if the gate is under load.
After replacing the motor, check motor wiring, belt tracking, pulley alignment, gearbox operation, taper clamp adjustment, gate arm travel, limits, stops, and all required safety devices before returning the operator to service. If the motor failed from low voltage, mechanical binding, water intrusion, overload, or poor arm geometry, the underlying problem should be corrected by a qualified gate technician.
Product Questions & Answers
What is the HySecurity MX001395 used for?
The HySecurity MX001395 is a replacement 24VDC electric motor used on SwingSmart DC gate operators.
Which operator does MX001395 fit?
Official HySecurity SwingSmart DC parts documentation lists MX001395 as Motor, Electric, 24VDC for SwingSmart DC models. Always verify the parts diagram before ordering.
What are the common motor specs for MX001395?
Public distributor listings commonly describe MX001395 as a 24VDC, 350W motor with an approximate speed of 2700 RPM.
Is this the same as the gearbox?
No. MX001395 is the electric motor. The SwingSmart DC gearbox is a separate part, commonly listed as MX002005.
Is the pulley included with this motor?
The motor pulley should be verified against your stocked listing. The related SwingSmart DC motor pulley is commonly listed separately as MX001403.
Can worn brushes cause motor problems?
Yes. Worn or contaminated motor brushes can cause weak operation, intermittent movement, arcing, noise, or motor stall symptoms. The related brush kit is commonly listed as MX001920.
What should I inspect before replacing the motor?
Inspect the batteries, charger, control board output, motor wiring, drive belt, pulleys, gearbox, taper clamp assembly, gate arm hardware, limits, mechanical stops, and overall gate movement before replacing the motor.
