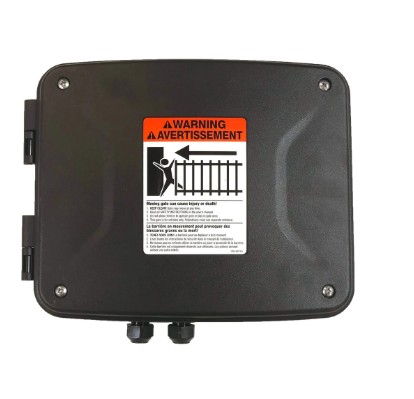

Mighty Mule RP1005 MM37x and MM57x Empty Control Box Details
The Mighty Mule RP1005 is an empty replacement control-box enclosure for select Mighty Mule automatic swing gate operators. It is intended to replace an original enclosure that is cracked, physically damaged, corroded, or no longer providing suitable protection for the operator control components.
The RP1005 arrives without internal electrical components. Existing compatible parts may need to be transferred from the old enclosure, or the required replacement components must be ordered separately.
Confirmed Mighty Mule Compatibility
- Mighty Mule MM371W single swing gate operator
- Mighty Mule MM372W dual swing gate operator
- Mighty Mule MM571W single swing gate operator
- Mighty Mule MM572W dual swing gate operator
The manufacturer also shortens these model-family references to MM371, MM372, MM571, and MM572 in some replacement-parts listings. Confirm the complete model number from the operator label before ordering.
What the RP1005 Control Box Does
- Provides a replacement enclosure for compatible operator controls
- Houses the properly matched control board and related components
- Replaces an enclosure with cracks, broken mounting points, or physical damage
- Allows usable original components to be transferred when they remain serviceable
- Supports compatible single and dual swing gate operator configurations
Important Empty-Enclosure Warning
The RP1005 is not a complete operating control box. Mighty Mule states that it does not include internal components. Installing the empty enclosure alone will not restore operation to a gate with a failed control board, damaged wiring, bad power supply, discharged battery, defective alarm, or other electrical problem.
Do not assume that the logic board, alarm, antenna, battery harness, power supply, fuses, strain-relief connectors, cable glands, mounting hardware, or internal wiring are included. Confirm the physical package contents before installation.
Features and Specifications
| Specification | Details |
| Brand | Mighty Mule |
| Part Number | RP1005 |
| Product Type | Empty replacement gate operator control box |
| Confirmed Models | MM371W, MM372W, MM571W, and MM572W |
| Operator Type | Automatic swing gate operators |
| Gate Configuration | Compatible single and dual operator systems |
| Supplied Condition | Empty enclosure without internal electrical components |
| Logic Board Included | No |
| Audible Alarm Included | No |
| Antenna Included | Not identified as included |
| Electrical Rating | Not applicable to the empty enclosure; transferred components retain their original ratings |
| Related Loaded Assembly | RP1004 loaded control box |
| Related Logic Board | RP1007 replacement logic board |
Package Contents
- One Mighty Mule RP1005 empty control-box enclosure as supplied
The manufacturer does not identify any internal control components as included. Confirm whether enclosure screws, mounting fasteners, cable-entry fittings, seals, brackets, or other loose hardware are present in the physical package before advertising them.
RP1005 Compared With the RP1004 Loaded Control Box
The RP1005 is the empty enclosure. It is intended for installations where the existing compatible control components are still usable or where the internal parts will be purchased separately.
The RP1004 is the related loaded control-box assembly. Current manufacturer information states that the RP1004 includes the control board, audible alarm, and strain-relief connectors.
Choose the RP1005 when only the enclosure requires replacement. Consider the RP1004 when the enclosure and major internal control components require replacement together.
Related Components Sold Separately
- RP1007 logic board for compatible MM37x and MM57x operators
- RP1008 318 MHz replacement antenna
- RP1009 audible alarm assembly
- RP1010 compatible power supply
- RP1013 external battery harness for select MM371W and MM372W systems
- RP1014 internal battery harness for MM571W and MM572W systems
- FM150 replacement battery for applicable operator configurations
- RP1004 loaded control-box assembly
Compatibility and required components vary by operator model and battery arrangement. Verify each part separately before ordering.
Similar Parts That Are Not Automatically Interchangeable
- RP1004 loaded control box with internal components
- Control boxes for MM271 or MM272 operators
- Enclosures from older FM-series or GTO operator generations
- Battery-only enclosures that do not house the control board
- Generic electrical enclosures without the correct internal mounting points
- Boxes with different cable-entry locations or mounting patterns
- Control boxes for slide gate operators or commercial operators
When an Empty Control Box Is Appropriate
- The original enclosure is cracked or broken.
- The cover no longer closes or secures correctly.
- Mounting points have failed while the internal electronics remain usable.
- The enclosure was damaged by impact, weather exposure, animals, or landscaping equipment.
- The existing compatible control board and wiring can be safely transferred.
An empty enclosure is not the proper repair when the logic board, connectors, wiring, alarm, battery circuit, or charging system has also failed.
Technician Note
Photograph the original control box before removing any parts. Label the operator-arm wiring, battery connections, accessory inputs, safety-device wiring, power-supply leads, antenna connection, and alarm plug before transferring components.
Inspect each reused component for corrosion, burned terminals, cracked connectors, damaged insulation, insect contamination, and water exposure. Installing damaged electronics into a new enclosure can cause continued faults or damage additional parts.
Before Ordering Checklist
- Confirm the operator is an MM371W, MM372W, MM571W, or MM572W.
- Verify that only the enclosure requires replacement.
- Compare the original box shape, mounting arrangement, and cable entries.
- Check whether the existing RP1007 logic board is still serviceable.
- Inspect the alarm, antenna, battery harness, and power wiring.
- Determine whether strain-relief connectors or cable fittings must be reused or ordered.
- Confirm whether mounting screws or hardware are included with the supplied box.
- Choose the RP1004 instead when a loaded control box is required.
Installation and Service Notes
Turn the gate operator off and disconnect the power supply, solar input, and battery before opening the original control box. Prevent loose conductors or tools from contacting battery terminals or control-board connections.
Transfer only compatible, undamaged components. Maintain the original wire routing, connector orientation, grounding arrangement, cable strain relief, and separation between power, motor, accessory, and safety-device wiring.
Do not drill unnecessary holes or leave unused openings that can allow water, insects, or debris into the enclosure. Do not pinch wires between the enclosure and cover.
After assembly, test the operator limits, remote controls, automatic-close function, obstruction response, audible alarm, photo eyes, sensing edges, and other required entrapment-protection devices. Unclear wiring or damaged safety circuits should be handled by a qualified gate or low-voltage technician.
Product Questions and Answers
Which Mighty Mule operators are compatible with the RP1005 control box?
The RP1005 is confirmed for the MM371W, MM372W, MM571W, and MM572W automatic swing gate operators.
Does the RP1005 include the logic board?
No. The RP1005 is an empty enclosure and does not include the logic board or other internal electrical components.
What is the difference between the RP1005 and RP1004?
The RP1005 is an empty control box. The related RP1004 is a loaded control box that the manufacturer identifies as including the control board, audible alarm, and strain-relief connectors.
Can I transfer the components from my original control box into the RP1005?
Compatible components may be transferred when they are undamaged and properly matched to the operator. Inspect the board, wiring, connectors, alarm, antenna, and battery circuit before reuse.
Does the RP1005 include an antenna, alarm, or battery harness?
No internal components should be assumed included. The antenna, audible alarm, battery harness, power supply, battery, and other electrical parts are separate unless the specific package states otherwise.
Does the RP1005 have a published NEMA or IP weather rating?
No exact NEMA or IP rating was identified in the current manufacturer information. Install the enclosure as intended and make sure all covers, cable entries, and seals are properly secured.
Will replacing the RP1005 fix a gate opener that has no power?
Not by itself. An empty enclosure will not repair a failed battery, power supply, fuse, wiring harness, logic board, or charging circuit.
What should I verify before ordering the RP1005?
Confirm the operator model, enclosure shape, mounting arrangement, cable-entry locations, condition of the existing components, and whether an empty or loaded control box is required.
