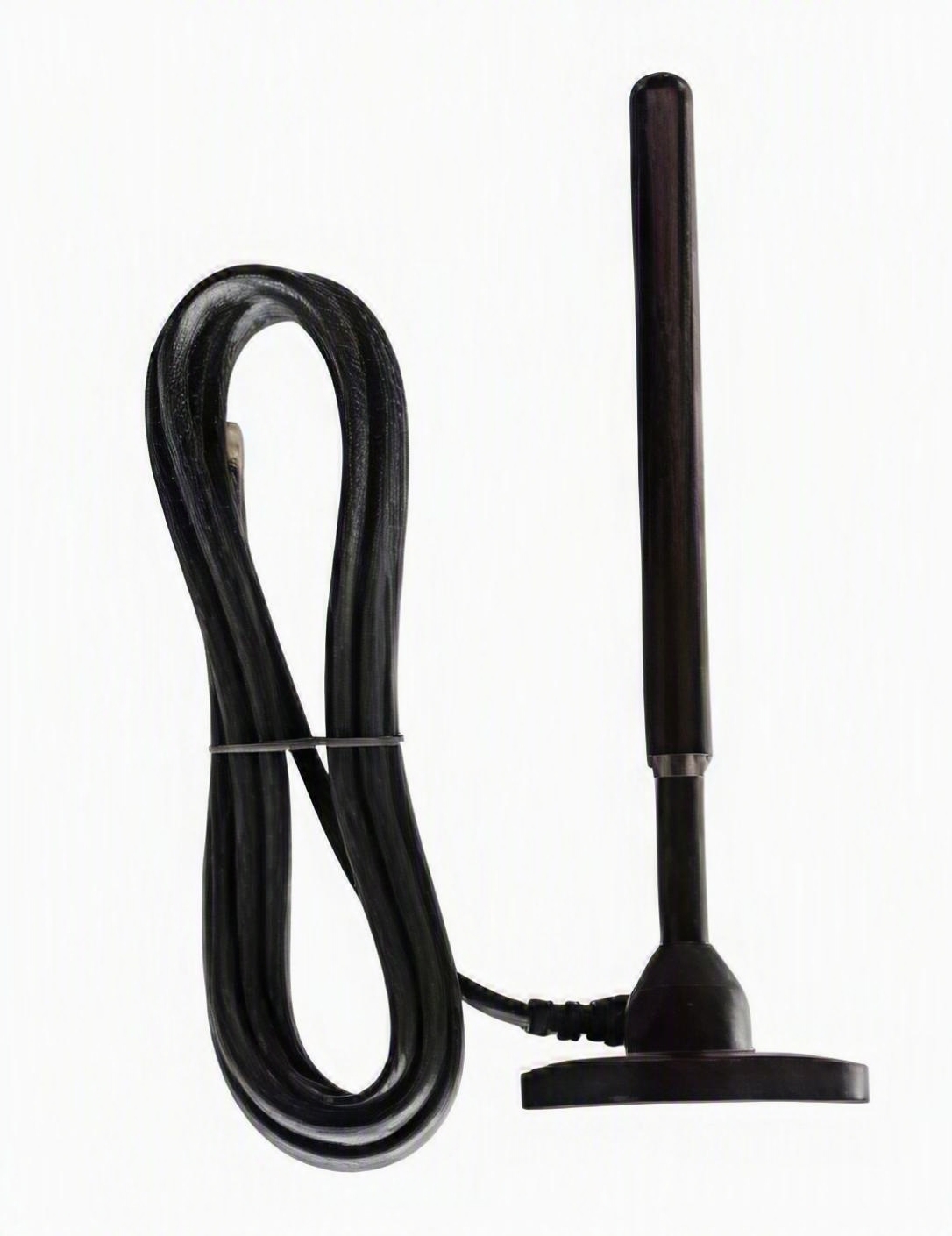

AES ANT-30, High Gain Antenna Magnetic Mounting - 433Mhz - 30 dbi
The AES ANT-30 is a 433 MHz high gain magnetic mount antenna rated at 30 dBi for select AES wireless access control, e-Loop, and e-Trans applications. It is used when a compatible AES receiver or transceiver needs improved wireless communication range compared with a standard or lower-gain antenna.
This antenna is commonly associated with AES long-range wireless setups, including certain e-Loop, e-Trans, remote transmitter, and wireless trigger layouts where the receiving device is designed to accept an external antenna. It can be useful on larger properties, longer driveway entrances, gate sites with difficult receiver placement, or installations where the standard antenna does not provide reliable signal performance.
The ANT-30 should be ordered by exact AES part number, frequency, connector style, and system compatibility. Do not select this antenna by gain rating alone, because receiver compatibility, cable losses, antenna location, mounting surface, connector type, and line-of-sight conditions all affect final range.
What This Antenna Does
The ANT-30 helps improve wireless signal performance on compatible AES 433 MHz systems by providing a higher-gain external antenna option. In the correct installation, it may help improve communication between compatible AES transmitters, receivers, transceivers, e-Loop devices, remotes, or wireless relay equipment.
This antenna does not create a wireless system by itself. It must be connected to a compatible AES receiver, transceiver, or wireless device that supports the ANT-30 antenna connection. The final system performance depends on the installed AES equipment, antenna placement, cable condition, receiver programming, radio interference, surrounding structures, and site layout.
Compatible With
Use the AES ANT-30 only where the AES documentation, product label, receiver/transceiver manual, or supplier cross-reference confirms compatibility. Compatibility can vary by AES wireless product family, antenna connector, frequency, receiver generation, cable length, and mounting location.
- Select AES 433 MHz wireless systems where ANT-30 is listed or supported
- Select AES e-Loop and e-Trans receiver / transceiver applications requiring a long-range external antenna
- Select AES long-range transmitter kits where ANT-30 is supplied or specified
- Installations where the existing standard antenna does not provide reliable communication and the receiver supports an external high-gain antenna
- Gate access, driveway, and property entrance applications where radio range is limited by distance or site layout
- Repairs or upgrades where the original antenna is marked, listed, or cross-referenced as ANT-30
- Applications where the antenna connector, cable routing, magnetic base location, and 433 MHz frequency match the installed AES device
Important Compatibility Warning
Do not assume the AES ANT-30 works with every AES product, every 433 MHz receiver, or every gate operator radio system. The connected device must support the correct antenna frequency, connector type, and external antenna use.
A high-gain antenna does not guarantee a specific range in every installation. Range can be reduced by metal gate posts, steel enclosures, block walls, concrete, underground placement, trees, hills, nearby electronics, poor grounding, cable damage, low receiver power, and radio interference. Best results usually come from proper antenna placement, clean cable routing, correct receiver setup, and a clear signal path.
Similar AES Parts That Are Not Automatically Interchangeable
- AES ANT-30: 433 MHz high gain magnetic mount antenna rated 30 dBi for select AES long-range wireless applications.
- AES ANT-4: Related AES antenna reference used in some long-range kits; not the same as ANT-30 and not the same gain rating.
- AES ETRANS200: 200-code receiver / transceiver reference; not the same as an antenna.
- AES ETRANS50: Receiver / transceiver reference; not the same as an antenna.
- AES E-REMOTE: Handheld transmitter with lock/unlock function; not the same as ANT-30.
- AES E-TX: Key fob transmitter reference; not the same as ANT-30.
- AES E-TRIGGER: Wireless relay transmitter; not the same as the antenna.
- Generic 433 MHz antennas: Frequency alone does not confirm connector, gain, impedance, mounting, or AES system compatibility.
Not Intended For
- Use as a complete receiver, transmitter, transceiver, keypad, e-Loop detector, or gate control system by itself
- Replacement for an AES ETRANS receiver, E-REMOTE, E-TX, E-TRIGGER, e-Loop detector, or diagnostic accessory
- Use with non-compatible receivers or generic 433 MHz devices unless the connector, impedance, frequency, and antenna requirements are confirmed
- Use as a cellular antenna, Wi-Fi antenna, Bluetooth antenna, 315 MHz remote antenna, 868 MHz antenna, 915 MHz antenna, or LoRa antenna unless documentation confirms compatibility
- Correcting receiver programming, weak batteries, failed transmitters, damaged boards, or gate operator input problems by itself
- Bypassing receiver programming, access control permissions, gate safety devices, monitored photo eyes, safety edges, or required entrapment protection
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | AES / AES Global |
| Part Number | ANT-30 |
| Product Type | High gain magnetic mount antenna |
| Frequency | 433 MHz / AES 433 MHz wireless applications where supported |
| Gain Rating | 30 dBi listing reference; verify physical packaging and AES documentation for final specification |
| Mounting Style | Magnetic mount |
| Common Application | Long-range antenna upgrade for select AES e-Loop, e-Trans, and wireless receiver applications |
| Connector Note | Verify connector type before ordering; connector style can vary by receiver or antenna cable requirement |
| Cable Note | Confirm cable length, routing, and condition before installation; excessive cable length or damage can reduce performance |
| Range Note | Actual range depends on line of sight, receiver location, antenna height, site obstructions, interference, and connected AES equipment |
| Included Components | ANT-30 antenna assembly only unless the product listing or package states otherwise |
| Not Included | Receiver, transceiver, transmitter, e-Loop detector, keypad, power supply, mounting mast, adapter cable, gate operator, or complete wireless system unless specifically stated |
Also Known As / Related Part Numbers
- AES ANT-30
- ANT-30
- AES Global ANT-30
- Nice AES ANT-30
- AES Magnetic Long Range Antenna 30 dBi
- AES 433 MHz High Gain Antenna
- AES 433 MHz Magnetic Mount Antenna
- AES Long Range Antenna 30 dBi
- AES High Gain Magnetic Mount Antenna
- AES e-Loop Long Range Antenna
- AES e-Trans Long Range Antenna
- AES-ANT-30
- ANT30, possible search variation only; verify exact part number as ANT-30
- HYS-ANT-30, related distributor-style SKU format only; verify seller SKU before ordering
- ANT-4, related AES antenna reference; not the same as ANT-30
- ETRANS200, related AES receiver / transceiver reference; not the same as the antenna
- ETRANS50, related AES receiver / transceiver reference; not the same as the antenna
Related Parts and Accessories
- AES ANT-4, related long-range antenna used in some AES kits; verify before substituting for ANT-30
- AES ETRANS200, 200-code receiver / transceiver reference for compatible AES wireless systems
- AES ETRANS50, receiver / transceiver reference used with select AES e-Loop and transmitter applications
- AES E-REMOTE, handheld transmitter with lock/unlock function; not the same as ANT-30
- AES E-TX, key fob transmitter reference; not the same as ANT-30
- AES E-TRIGGER, wireless relay transmitter; not the same as ANT-30
- AES e-Loop detectors and accessories, where the antenna is part of a compatible AES wireless layout
- Antenna adapters or extension cables only where the connector type and signal loss are confirmed
Technician Note
If a wireless AES system has poor range, the antenna may help, but it is not the only part to check. Weak transmitter batteries, receiver location, antenna cable damage, incorrect receiver programming, metal enclosures, underground equipment placement, interference, and poor line of sight can all cause range problems.
For best results, mount the antenna as high and clear as the installation allows, away from heavy metal structures, electrical noise, and locations where the cable can be crushed or water-damaged. A magnetic base needs a proper metal mounting surface to sit securely and perform consistently.
Before Ordering, Confirm
- The required part number is ANT-30.
- The installed AES receiver or transceiver supports an external antenna.
- The system operates on the correct 433 MHz AES wireless frequency.
- The antenna connector matches the receiver or approved adapter cable.
- The magnetic base can be mounted on a suitable metal surface.
- The cable length and routing are suitable for the installation.
- The range issue is not caused by weak batteries, receiver power, antenna damage, radio interference, incorrect pairing, or gate operator input wiring.
- The package contents are confirmed, especially whether any adapters, brackets, extension cables, or instructions are included.
Installation and Service Notes
- Install the ANT-30 only on compatible AES equipment that supports this antenna.
- Disconnect power to the receiver or transceiver when required before changing antenna connections.
- Do not force the antenna connector into a mismatched port or adapter.
- Route the antenna cable away from moving gate parts, sharp edges, water collection points, and high-voltage wiring.
- Keep the magnetic base secure and positioned where vibration, wind, or gate movement will not dislodge it.
- Test range from the actual transmitter location before finalizing the antenna location.
- After installation, test wireless communication, receiver activation, relay response, and normal gate or access control operation.
- Do not bypass monitored gate safety inputs, photo eyes, safety edges, emergency access equipment, access permissions, or required entrapment protection during testing.
Professional Advisory
A qualified gate, access control, or low-voltage technician should install or service the AES ANT-30 when the system controls a gate operator, magnetic lock, electric strike, door controller, fire access system, or monitored safety circuit. Poor wireless range should be diagnosed carefully before replacing parts. Do not bypass receiver programming, access control permissions, gate safety devices, or entrapment protection to make a wireless system operate.
Product Questions & Answers
What is the AES ANT-30 used for?
The AES ANT-30 is used as a 433 MHz high gain magnetic mount antenna for select AES e-Loop, e-Trans, and compatible wireless receiver applications.
Does the AES ANT-30 include the receiver or transceiver?
No. ANT-30 is the antenna only unless the product listing specifically states otherwise. The receiver, transceiver, transmitter, e-Loop detector, keypad, and gate operator are separate items.
Is AES ANT-30 rated at 30 dBi?
Yes. ANT-30 is commonly listed as a magnetic long range antenna rated at 30 dBi. Verify the physical packaging and AES documentation before using the gain rating for final system design.
Will the AES ANT-30 work with every 433 MHz receiver?
No. Frequency alone does not confirm compatibility. The receiver or transceiver must support the antenna connector, frequency, impedance, and external antenna requirements.
Can the AES ANT-30 improve wireless range?
It may improve range on compatible AES systems, but results depend on antenna placement, line of sight, receiver location, cable condition, metal obstructions, interference, and the installed transmitter or transceiver.
Is AES ANT-30 the same as AES ANT-4?
No. ANT-30 and ANT-4 are related AES antenna references but should not be treated as the same part. Confirm the required antenna gain, kit contents, and receiver compatibility before substituting.
What should I check before ordering AES ANT-30?
Confirm the exact ANT-30 part number, 433 MHz AES system compatibility, receiver antenna port, connector type, cable length, mounting location, magnetic base surface, and whether the range issue is actually antenna-related.
