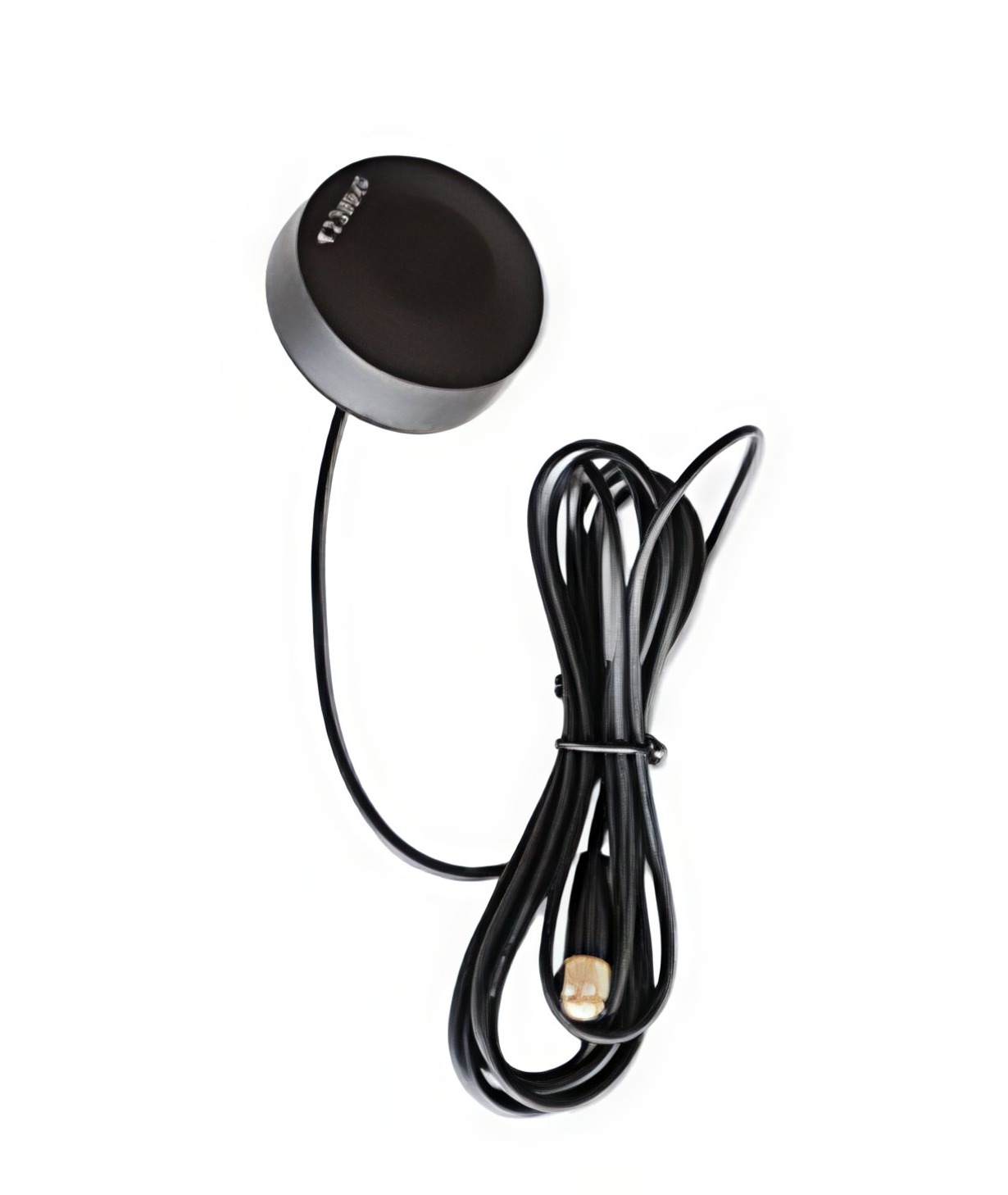

AES ANT-4, Puck Style External Antenna 433Mhz
The AES ANT-4 is a 433 MHz puck-style external antenna for select AES wireless access control, e-Loop, and e-Trans applications. It is commonly used when a compatible AES receiver, transceiver, or wireless system needs improved antenna placement or better signal performance than the standard antenna location provides.
This compact puck-style antenna is often associated with AES long-range wireless layouts, including certain e-Loop, e-Trans, E-TX transmitter, receiver, and transceiver applications where the installed device supports an external antenna connection.
The ANT-4 should be ordered by exact AES part number, frequency, connector style, cable requirement, and system compatibility. Do not select this antenna only by appearance, because frequency, connector type, cable length, gain rating, receiver compatibility, antenna location, and site conditions all affect final performance.
Important Gain Rating Verification
Public product references for AES ANT-4 show a possible gain-rating mismatch. Some distributor listings describe ANT-4 as a 4 dBi puck-style external antenna, while AES long-range kit literature shows ANT-4 listed as a 12 dBi antenna in certain ETRANS transmitter kits.
Before publishing a final gain rating on the live product page, verify the physical antenna label, AES packaging, supplier invoice, or current AES documentation. If the rating cannot be confirmed, describe the item as a 433 MHz puck-style external antenna rather than locking the page to 4 dBi or 12 dBi.
What This Antenna Does
The ANT-4 helps improve wireless communication on compatible AES 433 MHz systems by allowing the antenna to be positioned externally and more favorably than a receiver or transceiver mounted inside an enclosure, gate post, cabinet, or protected control area.
This antenna does not create a wireless system by itself. It must connect to a compatible AES receiver, transceiver, or wireless device that supports the ANT-4 antenna connection. Final signal performance depends on the installed AES equipment, antenna location, cable condition, receiver programming, transmitter condition, radio interference, and site layout.
Compatible With
Use the AES ANT-4 only where the AES documentation, product label, receiver/transceiver manual, or supplier cross-reference confirms compatibility. Compatibility can vary by AES wireless product family, antenna connector, cable type, receiver generation, and installation layout.
- Select AES 433 MHz wireless systems where ANT-4 is listed or supported
- Select AES e-Loop and e-Trans receiver / transceiver applications requiring an external puck-style antenna
- Select AES long-range gate opening kits where ANT-4 is supplied or specified
- Select ETRANS50, ETRANS100, and ETRANS200 transmitter kit applications where ANT-4 is included or listed by AES documentation
- Installations where the existing antenna location is limiting wireless performance and the receiver supports an external antenna
- Gate access, driveway, and property entrance applications where radio range depends on antenna placement and line-of-sight conditions
- Repairs or replacements where the original antenna is marked, listed, or cross-referenced as ANT-4
- Applications where the antenna connector, cable routing, mounting style, and 433 MHz frequency match the installed AES device
Important Compatibility Warning
Do not assume the AES ANT-4 works with every AES product, every 433 MHz receiver, or every gate operator radio system. The connected device must support the correct antenna frequency, connector type, impedance, and external antenna use.
An external antenna does not guarantee a specific range in every installation. Range can be reduced by metal gate posts, steel enclosures, concrete walls, underground placement, trees, hills, nearby electronics, poor antenna placement, damaged coax, low receiver power, weak transmitter batteries, and radio interference.
Similar AES Parts That Are Not Automatically Interchangeable
- AES ANT-4: 433 MHz puck-style external antenna for select AES wireless receiver, e-Loop, and e-Trans applications.
- AES ANT-30: Related AES high-gain magnetic mount antenna; not the same as the puck-style ANT-4.
- AES ETRANS50: Receiver / transceiver reference; not the same as an antenna.
- AES ETRANS100: 2-channel transceiver reference used in some long-range kits; not the same as an antenna.
- AES ETRANS200: 200-code LCD receiver / transceiver reference; not the same as an antenna.
- AES E-TX: 4-button key fob transmitter; not the same as ANT-4.
- AES E-REMOTE: 3-channel transmitter with lock/unlock function; not the same as ANT-4.
- AES E-TRIGGER: Wireless relay transmitter; not the same as the antenna.
- Generic 433 MHz antennas: Frequency alone does not confirm AES connector, gain, cable, impedance, mounting, or system compatibility.
Not Intended For
- Use as a complete receiver, transmitter, transceiver, keypad, e-Loop detector, or gate control system by itself
- Replacement for an AES ETRANS receiver, E-TX, E-REMOTE, E-TRIGGER, e-Loop detector, or diagnostic accessory
- Use as a cellular antenna, Wi-Fi antenna, Bluetooth antenna, 315 MHz remote antenna, 868 MHz antenna, 915 MHz antenna, or LoRa antenna unless documentation confirms compatibility
- Use with non-compatible receivers or generic 433 MHz devices unless connector, impedance, frequency, and antenna requirements are confirmed
- Correcting receiver programming, weak transmitter batteries, failed transmitters, damaged boards, or gate operator input problems by itself
- Bypassing receiver programming, access control permissions, gate safety devices, monitored photo eyes, safety edges, or required entrapment protection
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | AES / AES Global |
| Part Number | ANT-4 |
| Product Type | Puck-style external antenna |
| Frequency | 433 MHz / AES 433 MHz wireless applications where supported |
| Gain Rating | Public references show both 4 dBi and 12 dBi for ANT-4; verify physical packaging or AES documentation before publishing a final gain rating |
| Antenna Style | Puck style / low-profile external antenna |
| Cable Reference | Some listings reference a 6 ft cable; verify actual cable length before publishing final package details |
| Connection Reference | Coax connection where listed; verify connector type before ordering |
| Common Application | External antenna for select AES e-Loop, e-Trans, and compatible wireless receiver applications |
| Kit Reference | ANT-4 is referenced in select AES long-range ETRANS transmitter kits; verify kit contents before ordering separately |
| Range Note | Actual range depends on line of sight, receiver location, antenna height, site obstructions, cable condition, interference, and connected AES equipment |
| Included Components | ANT-4 antenna assembly only unless the product listing or package states otherwise |
| Not Included | Receiver, transceiver, transmitter, e-Loop detector, keypad, power supply, adapter cable, gate operator, or complete wireless system unless specifically stated |
Also Known As / Related Part Numbers
- AES ANT-4
- ANT-4
- AES Global ANT-4
- Nice AES ANT-4
- AES 433 MHz Puck Style External Antenna
- AES Puck Style External Antenna 433 MHz
- AES External Puck Antenna
- AES 433 MHz External Antenna
- AES e-Loop External Antenna
- AES e-Trans External Antenna
- AES Long Range Antenna for ETRANS Kits
- AES-ANT-4
- ANT4, possible search variation only; verify exact part number as ANT-4
- HYS-ANT-4, related distributor-style SKU format only; verify seller SKU before ordering
- ANT-30, related AES magnetic high-gain antenna; not the same as ANT-4
- ETRANS50, related AES receiver / transceiver reference; not the same as the antenna
- ETRANS100, related AES 2-channel transceiver reference; not the same as the antenna
- ETRANS200, related AES receiver / transceiver reference; not the same as the antenna
Related Parts and Accessories
- AES ANT-30, related high-gain magnetic mount antenna; verify before substituting for ANT-4
- AES ETRANS50, receiver / transceiver reference used with select AES e-Loop and transmitter applications
- AES ETRANS100, 2-channel transceiver reference used in select long-range gate opening kits
- AES ETRANS200, 200-code LCD receiver / transceiver reference for compatible AES wireless systems
- AES E-TX, 4-button key fob transmitter used in select AES wireless access kits
- AES E-REMOTE, handheld transmitter with lock/unlock function; not the same as ANT-4
- AES E-TRIGGER, wireless relay transmitter; not the same as ANT-4
- AES e-Loop detectors and accessories, where the antenna is part of a compatible AES wireless layout
- Antenna adapters or extension cables only where the connector type and signal loss are confirmed
Technician Note
If a wireless AES system has poor range, the antenna may help, but it is not the only part to check. Weak transmitter batteries, receiver location, antenna cable damage, incorrect receiver programming, metal enclosures, underground equipment placement, interference, and poor line of sight can all cause range problems.
For best results, mount the puck antenna where the receiver or transceiver can get the cleanest practical signal path. Avoid burying the antenna inside a metal enclosure, placing the cable where it can be crushed, or routing the coax alongside high-voltage wiring.
Before Ordering, Confirm
- The required part number is ANT-4.
- The installed AES receiver or transceiver supports an external antenna.
- The system operates on the correct 433 MHz AES wireless frequency.
- The antenna connector matches the receiver or approved adapter cable.
- The cable length and routing are suitable for the installation.
- The antenna style is correct for the desired mounting location.
- The final dBi rating is verified from the physical product or AES documentation if it will be shown on the live page.
- The range issue is not caused by weak batteries, receiver power, antenna damage, radio interference, incorrect pairing, or gate operator input wiring.
- The package contents are confirmed, especially whether any adapters, brackets, extension cables, gaskets, mounting hardware, or instructions are included.
Installation and Service Notes
- Install the ANT-4 only on compatible AES equipment that supports this antenna.
- Disconnect power to the receiver or transceiver when required before changing antenna connections.
- Do not force the antenna connector into a mismatched port or adapter.
- Route the antenna cable away from moving gate parts, sharp edges, water collection points, and high-voltage wiring.
- Keep the antenna positioned where the cable is protected and the signal path is as clear as practical.
- Test range from the actual transmitter or e-Loop location before finalizing the antenna location.
- After installation, test wireless communication, receiver activation, relay response, and normal gate or access control operation.
- Do not bypass monitored gate safety inputs, photo eyes, safety edges, emergency access equipment, access permissions, or required entrapment protection during testing.
Professional Advisory
A qualified gate, access control, or low-voltage technician should install or service the AES ANT-4 when the system controls a gate operator, magnetic lock, electric strike, door controller, fire access system, or monitored safety circuit. Poor wireless range should be diagnosed carefully before replacing parts. Do not bypass receiver programming, access control permissions, gate safety devices, or entrapment protection to make a wireless system operate.
Product Questions & Answers
What is the AES ANT-4 used for?
The AES ANT-4 is used as a 433 MHz puck-style external antenna for select AES e-Loop, e-Trans, and compatible wireless receiver or transceiver applications.
Does the AES ANT-4 include the receiver or transceiver?
No. ANT-4 is the antenna only unless the product listing specifically states otherwise. The receiver, transceiver, transmitter, e-Loop detector, keypad, and gate operator are separate items.
What frequency is the AES ANT-4 designed for?
The AES ANT-4 is listed for 433 MHz AES wireless applications. The connected receiver or transceiver must still be checked for antenna compatibility.
Is AES ANT-4 a 4 dBi or 12 dBi antenna?
Public references show both 4 dBi and 12 dBi wording for ANT-4. Verify the physical antenna packaging, AES label, or current AES documentation before publishing a final gain rating.
Can the AES ANT-4 improve wireless range?
It may improve range on compatible AES systems, but results depend on antenna placement, line of sight, receiver location, cable condition, site obstructions, interference, and the installed transmitter or transceiver.
Is AES ANT-4 the same as AES ANT-30?
No. ANT-4 is a puck-style external antenna, while ANT-30 is a related AES high-gain magnetic mount antenna. Confirm the required antenna style, gain, connector, and receiver compatibility before substituting.
What should I check before ordering AES ANT-4?
Confirm the exact ANT-4 part number, 433 MHz AES system compatibility, receiver antenna port, connector type, cable length, mounting location, gain rating, package contents, and whether the range issue is actually antenna-related.
