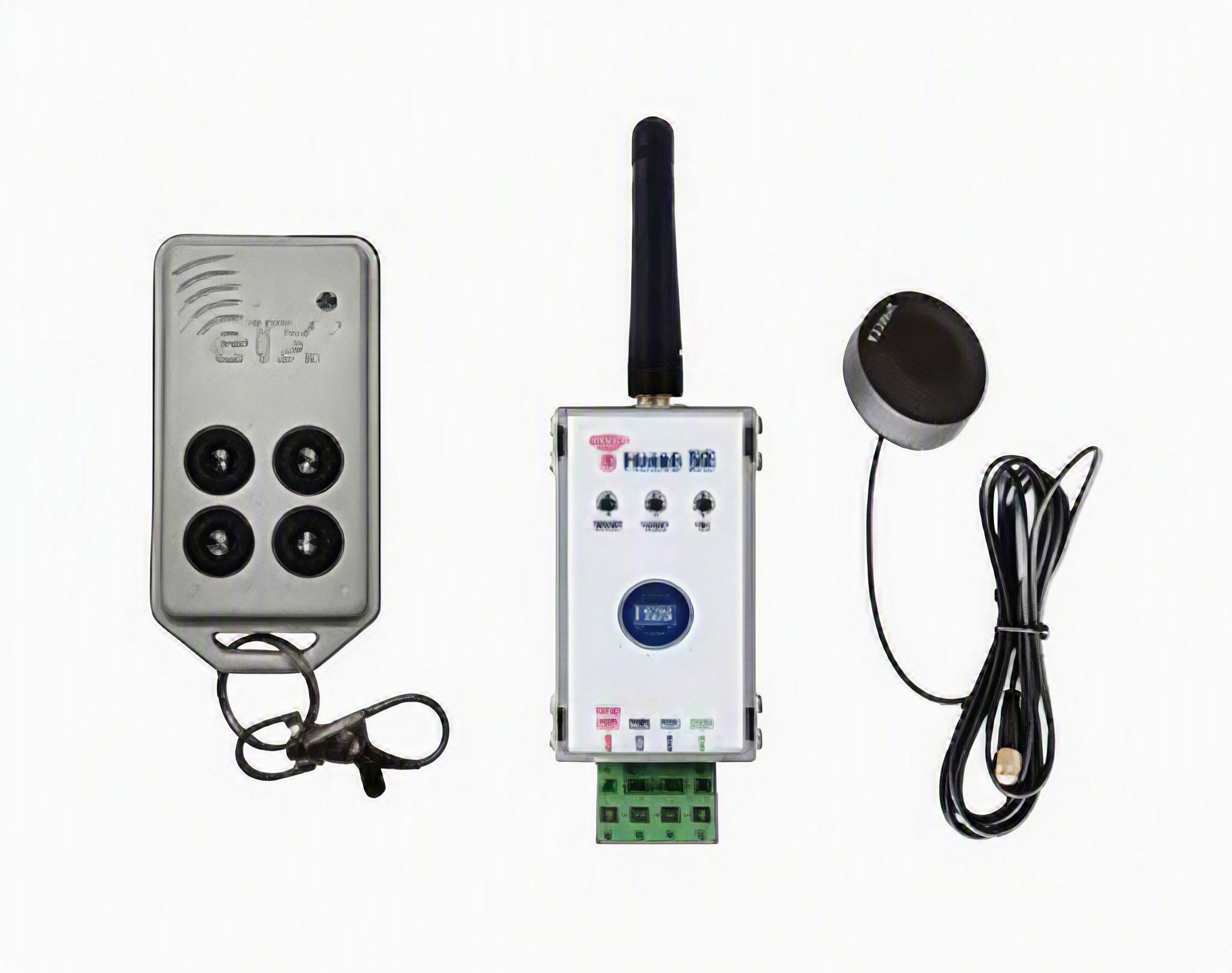

AES ETRANS50-TX-KIT, eLoop Remote Kit w/eTrans50 Transceiver - 1x Relay Output N/O Only - 4x Remotes
The AES ETRANS50-TX-KIT is a standard-range e-Loop remote kit for select AES wireless gate access and access control applications. It is commonly used where authorized users need handheld remote control using AES E-TX transmitter fobs and an ETRANS50 receiving transceiver.
In a proper installation, the E-TX fobs are programmed into the ETRANS50 transceiver. When an authorized remote button is pressed, the ETRANS50 provides one normally open relay output that can be wired to an approved low-voltage input on a gate operator, door controller, or access control device.
This kit should be ordered by exact part number, included components, relay requirement, wireless range requirement, and controlled equipment type. Do not choose this kit only because a site needs remotes. The transceiver model, antenna package, relay count, voltage input, receiver memory, and site conditions all need to match the job.
What This Remote Kit Does
The ETRANS50-TX-KIT provides a wireless remote-control setup for compatible AES gate and access control applications. The included E-TX fobs act as handheld transmitters, and the ETRANS50 transceiver acts as the receiving and relay-output side of the system.
The ETRANS50 is commonly used for single-relay applications. It provides one relay output with COM and N/O connections where supported by the installed transceiver. That relay output can be used with an approved open, radio, push-button, free-exit, or access control input, depending on the gate operator or access control equipment.
This kit does not make the gate safe by itself. Gate movement still depends on the gate operator, monitored photo eyes, safety edges, entrapment protection, access control wiring, emergency access equipment, and proper field testing.
Compatible With
Use the AES ETRANS50-TX-KIT only where the AES documentation, site design, operator input requirements, or supplier cross-reference confirms compatibility. Compatibility depends on the 433.39 MHz AES wireless platform, ETRANS50 relay output, E-TX fob programming, antenna placement, receiver power, and the controlled equipment.
- Select AES e-Loop and e-Trans remote access applications where ETRANS50-TX-KIT is listed as the required kit
- Gate operator input applications where the ETRANS50 relay output can be wired to an approved open, radio, push-button, free-exit, or access control input
- Single-relay applications where one normally open relay output is suitable for the required gate or access command
- Installations requiring four AES E-TX handheld transmitter fobs with a compatible ETRANS50 transceiver
- Standard-range remote-control applications where site conditions support reliable AES wireless operation
- Repairs or replacements where the original kit is marked, listed, or cross-referenced as ETRANS50-TX-KIT
- Applications where the site does not require the long-range ANT-30 LR kit, ETRANS100 two-channel kit, or ETRANS200 LCD transceiver kit
Important Compatibility Warning
The AES ETRANS50-TX-KIT is the standard ETRANS50 remote kit. It should not be confused with the ETRANS50-TX-LR-KIT, which is the long-range version commonly associated with the ANT-30 antenna. The standard kit is commonly associated with the ANT-4 antenna in AES kit references, but package contents should always be verified before publishing or ordering.
The ETRANS50 is the single-relay version. If the installation needs two relay outputs, an LCD transceiver, larger programming features, or a different receiver capacity, verify whether an ETRANS100 or ETRANS200 kit is required instead.
Range is site-dependent. Standard-range kit references may list up to approximately 350 meters line of sight, but actual range can be reduced by metal gate posts, steel cabinets, concrete walls, hills, trees, nearby electronics, low receiver power, damaged antenna cable, weak fob batteries, or poor antenna placement.
Similar AES Parts That Are Not Automatically Interchangeable
- AES ETRANS50-TX-KIT: Standard remote kit with ETRANS50 transceiver and four E-TX fobs; this is the kit described on this page.
- AES ETRANS50-TX-LR-KIT: Long-range version commonly associated with the ANT-30 antenna; not the same package as the standard kit.
- AES ETRANS50: Transceiver only; does not include the four E-TX fobs or antenna unless supplied as a kit.
- AES E-TX: Four-button transmitter fob; included in this kit where supplied as listed, but also sold or referenced separately.
- AES ANT-4: Antenna commonly associated with standard ETRANS transmitter kits; verify package contents before claiming it is included.
- AES ANT-30: High-gain antenna used with LR kit versions; not the same as the standard kit antenna.
- AES ETRANS100-TX-KIT: Related kit with ETRANS100 two-channel transceiver; not the same as the ETRANS50 kit.
- AES ETRANS200-TX-KIT: Related kit with ETRANS200 LCD transceiver; not the same as the ETRANS50 kit.
- AES E-REMOTE: 3-channel transmitter with lock/unlock function; not the same as the E-TX fobs in this kit.
- AES EKPD / EKPD-K: Wireless keypad items; not the same as this E-TX fob remote kit.
Not Intended For
- Use as a complete gate operator, door operator, keypad, intercom, or access control system by itself
- Replacement for an e-Loop vehicle detector, safety photo eye, safety edge, loop detector, or monitored entrapment device
- Use where two relay outputs are required unless the ETRANS50 single relay is confirmed suitable
- Use as the long-range LR kit unless the package includes the correct long-range antenna and SKU
- Direct switching of high-voltage circuits, lock power, motor wiring, or unsafe loads without an approved relay interface
- Solving poor range caused by weak fob batteries, bad antenna placement, metal obstruction, interference, low receiver power, or incorrect programming without proper diagnosis
- Bypassing access permissions, fire access equipment, monitored photo eyes, safety edges, gate operator safety circuits, or required entrapment protection
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | AES / AES Global |
| Part Number | ETRANS50-TX-KIT |
| Product Type | e-Loop remote kit / transmitter and transceiver kit |
| Included Main Components | Commonly listed with 1 ETRANS50 transceiver and 4 E-TX transmitter fobs; verify antenna and package contents before publishing final kit details |
| Standard Kit Antenna Reference | AES kit literature commonly shows an ANT-4 antenna with standard ETRANS transmitter kits; verify your physical package before listing antenna details |
| Wireless Platform | AES 433 MHz / 433.39 MHz wireless platform, where supported by the installed equipment |
| Transceiver Included | ETRANS50 single-relay transceiver |
| ETRANS50 Power Input | 10-36V DC, where specified by AES documentation; verify current label before wiring |
| ETRANS50 Current Draw | 4.5 mA standby / 30 mA active, where specified by AES documentation |
| Relay Output | 1 relay output, normally open only, with COM and N/O connections where specified |
| Relay Rating | 1-amp contact rating where specified by AES documentation; verify before wiring |
| Relay Modes | Pulse, Latch, and Hold modes, where supported by the installed transceiver setup |
| Remote Storage | Commonly specified for 50 remotes; e-Loop, keypad, and entry-button capacity can vary by manual or generation |
| Remotes Included | 4 E-TX transmitter fobs, where supplied as listed |
| E-TX Button Count | 4 programmable buttons per fob, where supported by the paired transceiver |
| E-TX Battery | CR2032 coin cell battery, where supplied as specified; verify package contents |
| Listed Line-of-Sight Range | Standard kit references commonly show up to approximately 350 meters line of sight; actual range depends on site conditions |
| Common Application | Standard-range remote activation for select gate and access control inputs where ETRANS50 is suitable |
| Not Included | Gate operator, intercom, keypad, e-Loop detector, access controller, power supply, conduit, wiring, safety devices, or installation labor unless specifically stated |
Also Known As / Related Part Numbers
- AES ETRANS50-TX-KIT
- ETRANS50-TX-KIT
- AES Global ETRANS50-TX-KIT
- Nice AES ETRANS50-TX-KIT
- AES E-Trans 50 Remote Kit
- AES E-Loop Remote Kit with eTrans50
- AES ETRANS50 Transceiver Kit with 4 Remotes
- AES ETRANS50 Kit with 4 E-TX Fobs
- AES Remote Kit with ETRANS50 Transceiver
- AES Standard Range Remote Kit with ETRANS50
- AES ETRANS50-TX-KIT-US, possible regional SKU format; verify physical package label before publishing with the suffix
- AES-ETRANS50-TX-KIT
- ETRANS50TXKIT, possible search variation only; verify exact part number before ordering
- HYS-ETRANS50-TX-KIT, related distributor-style SKU format only; verify seller SKU before ordering
- ETRANS50, included transceiver reference; not the same as the full kit by itself
- E-TRANS-50, alternate transceiver naming format
- E-TX, included transmitter fob reference; not the same as the full kit by itself
- ANT-4, standard kit antenna reference in AES literature; verify package contents
- ETRANS50-TX-LR-KIT, related long-range kit; not the same as ETRANS50-TX-KIT
- ETRANS100-TX-KIT, related two-channel transceiver kit; not the same as ETRANS50-TX-KIT
- ETRANS200-TX-KIT, related LCD transceiver kit; not the same as ETRANS50-TX-KIT
Related Parts and Accessories
- AES ETRANS50, single-relay transceiver included with this kit where supplied as listed
- AES E-TX, 4-button transmitter fob included with this kit where supplied as listed
- AES ANT-4, antenna commonly associated with standard ETRANS transmitter kits; verify package contents before substituting
- AES ETRANS50-TX-LR-KIT, related long-range ETRANS50 kit commonly associated with ANT-30
- AES ETRANS100-TX-KIT, related kit with ETRANS100 two-channel transceiver
- AES ETRANS200-TX-KIT, related kit with ETRANS200 LCD transceiver
- AES ANT-30, high-gain antenna used with select long-range kits; not automatically included with this standard kit
- AES E-REMOTE, 3-channel transmitter with lock/unlock function; not the same as the E-TX fobs in this kit
- AES EKPD and EKPD-K wireless keypad products; not the same as this remote fob kit
- CR2032 coin cell batteries, where fob battery replacement is required and battery type is confirmed
- Approved low-voltage wiring, conduit, enclosure, surge protection, and relay interface parts where required by the installation
Technician Note
If the AES ETRANS50-TX-KIT does not activate the gate, check the full signal path before replacing parts. Inspect the E-TX fob batteries, fob programming, ETRANS50 power, antenna connection, relay mode, relay output wiring, operator input, range, and nearby sources of interference.
If the ETRANS50 relay activates but the gate does not move, the problem is usually downstream of the wireless kit. Check the gate operator input, input programming, stop circuit, safety devices, fire access interface, and access control terminals before replacing the transceiver or fobs.
If the range is poor, verify line of sight and antenna location first. Metal enclosures, masonry walls, low antenna placement, damaged coax, weak fob batteries, or electrical noise can make a properly programmed kit appear unreliable.
Before Ordering, Confirm
- The required kit part number is ETRANS50-TX-KIT.
- The installation needs the standard ETRANS50 kit, not the ETRANS50-TX-LR-KIT long-range version.
- The package includes one ETRANS50 transceiver and four E-TX transmitter fobs.
- The antenna included with the physical kit is confirmed, especially if the listing or job requires ANT-4.
- The site does not require an ETRANS100 or ETRANS200 kit instead.
- The controlled equipment has an approved low-voltage input for the ETRANS50 normally open relay output.
- The ETRANS50 relay count, 1-amp rating, and relay mode are suitable for the gate or access control input.
- The ETRANS50 has enough memory for the required number of E-TX fobs.
- The range requirement is realistic for the site layout, terrain, obstructions, and antenna location.
- The package contents are confirmed, especially whether fob batteries, antenna cable, mounting hardware, instructions, or adapters are included.
Installation and Service Notes
- Install and program the kit only on systems you are authorized to service.
- Follow AES instructions for pairing the E-TX fobs to the ETRANS50 transceiver.
- Power the ETRANS50 only within the voltage range and wiring method shown on the current label or manual.
- Do not connect the relay output directly to high-voltage loads or unsupported operator terminals.
- Set the relay mode only as required by the controlled equipment, such as Pulse, Latch, or Hold where supported.
- Mount the receiving equipment and antenna where the radio path is as clear as practical and wiring is protected.
- Route antenna and low-voltage wiring away from moving gate parts, sharp edges, water collection points, and high-voltage wiring.
- Test each E-TX fob from the intended operating locations before finalizing the installation.
- After setup, test fob operation, ETRANS50 relay response, gate operator input behavior, and normal gate operation.
- Do not bypass monitored gate safety inputs, photo eyes, safety edges, emergency access equipment, fire access wiring, access permissions, or required entrapment protection during testing.
Professional Advisory
A qualified gate, access control, or low-voltage technician should install or service the AES ETRANS50-TX-KIT when it is connected to a gate operator, automatic door, magnetic lock, electric strike, intercom, telephone entry system, fire access system, or monitored safety circuit. Wireless remote access should be programmed and tested carefully, and it should never be used to bypass required safety devices, access permissions, emergency access requirements, or gate operator protections.
Product Questions and Answers
What is the AES ETRANS50-TX-KIT used for?
The AES ETRANS50-TX-KIT is an eLoop remote gate-opening kit used to trigger a compatible gate, barrier, or access-control input with AES E-TX fobs and an eTrans50 transceiver.
Does the ETRANS50-TX-KIT include 4 remotes?
Yes. Common AES ETRANS50-TX-KIT references list 4 E-TX fobs with the kit. Confirm the current package contents before ordering.
Does this kit include an antenna?
Common AES standard kit references list an ANT-4 4 dBi antenna with the ETRANS50-TX-KIT-US package. Verify the current supplier package before publishing or ordering.
How many remotes can the eTrans50 store?
The eTrans50 is commonly referenced for up to 50 remotes. If more remote capacity or additional channel features are needed, compare the eTrans100 or eTrans200 kits.
What relay output does the eTrans50 provide?
The eTrans50 provides one relay output with COM and N/O connections. It should be used only with compatible normally open dry-contact trigger inputs.
Is this an eLoop vehicle detection kit?
No. This is a remote/fob gate-opening kit. It does not include a driveway eLoop vehicle detector unless the current package specifically states otherwise.
Will LiftMaster, Linear, Genie, or DoorKing remotes work with this kit?
Not automatically. The ETRANS50-TX-KIT is intended for AES E-TX fobs and AES eLoop transceiver products. Other brand remotes should not be assumed compatible.
What should be checked before ordering ETRANS50-TX-KIT?
Confirm the kit contents, eTrans50 transceiver, 4 E-TX fobs, antenna package, 10-36V DC power, 433.39 MHz AES system, N/O relay input compatibility, required range, and whether a long-range or multi-channel kit is needed.
