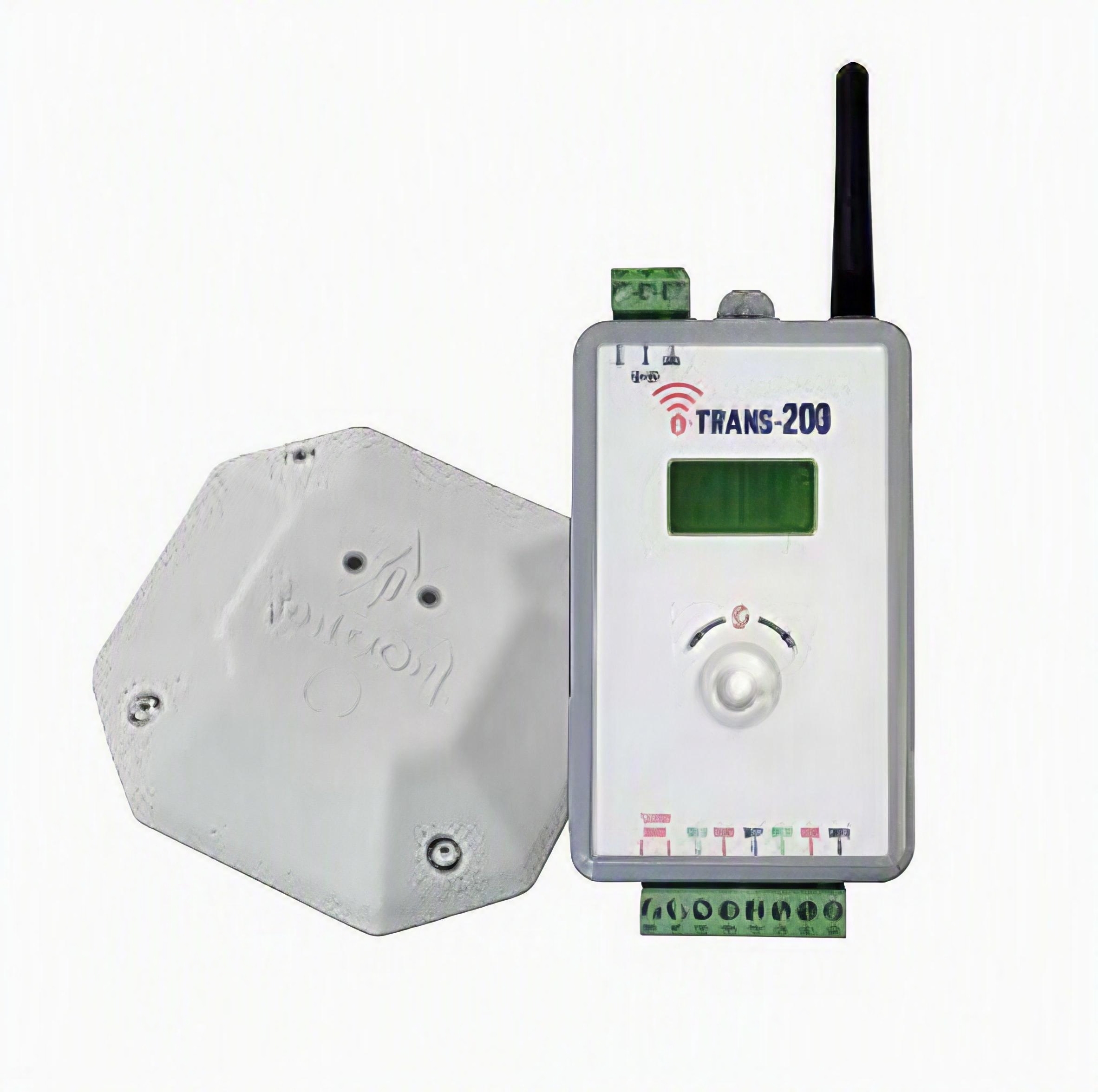

AES EL00M-KLT, Domestic eLoop EXIT ONLY includes eTrans200 Transceiver
The AES EL00M-KLT is a domestic e-Loop Mini EXIT ONLY kit for residential gate applications where a wireless vehicle detector is needed for automatic exit operation. The compact e-Loop Mini sensor mounts above ground in the vehicle path and communicates wirelessly with a compatible AES transceiver at the gate operator or control equipment.
This page is written for the EL00M-KLT kit configuration listed as including the AES ETRANS200 LCD transceiver. The ETRANS200 receives the signal from the compatible e-Loop Mini sensor and provides relay output to the gate operator or approved low-voltage control input. Confirm the actual package contents before publishing or shipping, since similar EL00M kit versions may include a different transceiver.
What This Kit Does
The EL00M-KLT provides a wireless exit-only vehicle detection option for domestic gate installations. Instead of cutting a traditional loop wire into the driveway, the compact e-Loop Mini sensor is mounted in the detection area and wirelessly sends an activation signal to the included transceiver.
- Provides EXIT ONLY vehicle detection for compatible domestic gate applications
- Uses wireless communication between the e-Loop Mini sensor and transceiver
- Helps avoid traditional saw-cut induction loop wire installation
- Designed for residential and light domestic gate use where suitable
- Includes an ETRANS200 LCD transceiver according to the supplied product title
- Allows the ETRANS200 to provide relay output to a compatible operator input
- Not intended as a gate safety device or presence-hold device
Compatible With
The AES EL00M-KLT may be used with select domestic gate operators and access control systems where a compatible low-voltage relay input is available and the system is designed for an exit-only wireless vehicle detector. Always confirm the gate operator input, transceiver model, relay logic, auto-close setup, and required safety devices before ordering.
- Select residential swing gate operators with a compatible low-voltage open input
- Select residential slide gate operators with a compatible low-voltage open input
- Domestic gate applications where an exit-only detector is required
- Applications where a traditional saw-cut loop is not practical or preferred
- Systems where the AES ETRANS200 LCD transceiver is the intended receiver/transceiver
- Installations where the gate controller has a dedicated open input and auto-close function where required
- Repairs where the original loop sensor or kit is marked, listed, or cross-referenced as EL00M-KLT
Important Compatibility Warning
The EL00M-KLT should not be selected by appearance alone. AES uses similar e-Loop part numbers across domestic Mini, commercial surface, inground, post-mount, wired, exit-mode, and presence-mode products. This item should be treated as a domestic e-Loop Mini EXIT ONLY kit with ETRANS200 only where the package or supplier listing confirms that configuration.
- Confirm that the required part number is EL00M-KLT.
- Confirm that the kit includes the ETRANS200 transceiver.
- Confirm that the job requires EXIT ONLY operation, not presence mode.
- Confirm that the application is suitable for the domestic Mini e-Loop, not a commercial surface, inground, post-mount, or wired detector.
- Confirm that the gate operator can accept the relay output from the transceiver.
- Confirm that auto-close and safety-device requirements are correct for the gate operator.
- Do not use this exit detector as the only safety device on an automated gate system.
EL00M-KLT Compared With Similar AES e-Loop Parts
| AES Part | General Use | Important Difference |
| EL00M-KLT | Domestic e-Loop Mini exit-only kit | Listed as including the ETRANS200 LCD transceiver; confirm package contents before publishing |
| EL00M | Domestic e-Loop Mini sensor only | Loop-only item unless the listing states otherwise; transceiver is not included |
| EL00M-K | Domestic e-Loop Mini exit-only kit | Commonly associated with ETRANS50, not the ETRANS200 LCD transceiver version |
| EL00M-RAD | Domestic e-Loop Mini presence-mode radar sensor | Presence-mode radar version, not the exit-only EL00M version |
| EL00C Series | Commercial surface e-Loop | Larger commercial product family; not the domestic Mini e-Loop |
| EL00IG Series | Commercial inground e-Loop | Recessed inground detector style; not the domestic surface Mini e-Loop |
| EL00W Series | Wired e-Loop detector | Wired detector that connects directly to the board; not a wireless Mini e-Loop kit |
Similar Parts That Are Not Automatically Interchangeable
- AES EL00M: Domestic e-Loop Mini sensor only. It is not the same as a kit unless the transceiver is included separately.
- AES EL00M-K: Domestic e-Loop Mini kit commonly associated with ETRANS50. It should not be treated as the same as the ETRANS200 KLT version.
- AES EL00M-RAD: Presence-mode radar version. It should not be substituted where the job calls for EXIT ONLY operation unless the application supports that change.
- AES EL00C Series: Commercial surface-mounted e-Loop family. It is a different product family from the domestic Mini e-Loop.
- AES EL00IG Series: Inground e-Loop family. It uses a different installation style and should not be substituted for the Mini without confirming the site requirements.
- AES EL00PM Series: Post-mount e-Loop family. It is not the same as the domestic Mini surface detector.
- AES EL00W Series: Wired e-Loop family. It does not use the same wireless transceiver-based setup.
- AES ETRANS50 and ETRANS100: Related AES transceivers, but not the ETRANS200 LCD transceiver listed with this KLT kit.
Not Intended For
- Presence-hold applications where an AES RAD presence-mode e-Loop is required
- Commercial traffic sites that require the larger commercial e-Loop product family
- Inground installations where a recessed driveway detector is required
- Post-mount vehicle detection applications
- Wired detector applications that require direct wiring from the detector to the gate board
- Applications where the operator does not have a proper compatible relay input
- Use as the only gate safety device
- Bypassing photo eyes, safety edges, monitored entrapment protection, emergency access, fire access, or required safety circuits
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | AES / AES Global |
| Part Number | EL00M-KLT |
| Product Type | Domestic e-Loop Mini wireless vehicle detection kit |
| Operating Mode | Exit only |
| Kit Configuration | Domestic e-Loop Mini sensor with ETRANS200 LCD transceiver, where package confirms this KLT configuration |
| Detection Type | Magnetic sensor / magnetometer-style vehicle detection |
| Wireless Frequency | 433 MHz-range AES e-Loop communication; verify the current supplied instructions for exact frequency specification |
| Wireless Security | 128-bit AES encryption |
| Typical Wireless Range | Commonly listed up to about 50 yards or 50 meters depending on document version, site conditions, interference, and antenna setup |
| Sensor Battery Type | Commonly listed with AA lithium batteries for the Mini e-Loop; verify battery quantity and inclusion before shipping |
| Estimated Sensor Battery Life | Commonly listed around 3-4 years depending on usage, traffic, settings, battery quality, and site conditions |
| Approximate Sensor Size | Commonly listed around 120 mm x 120 mm x 28-30 mm, or about 4.7 in. x 4.7 in. x 1.1 in. |
| Static Load Rating | Commonly listed around 2500 kg where installed as directed |
| Ingress Protection | Commonly listed as IP68; verify current AES documentation if the exact rating is required for a project specification |
| Installation Style | Above-ground / surface-mounted domestic Mini e-Loop installation |
| Included Transceiver | AES ETRANS200 LCD transceiver, where the package confirms this KLT configuration |
| ETRANS200 Input Voltage | 10-36V AC/DC |
| ETRANS200 Relay Outputs | Two relay outputs with COM and N/O connections, 1 amp contact rating |
| ETRANS200 Relay Modes | Pulse, Latch, and Hold modes |
| ETRANS200 Storage | Commonly listed for 200 remotes, 4 e-Loops, 4 keypads, and 4 entry buttons; verify current instructions for exact device capacity |
| ETRANS200 Display | LCD menu display for setup, device management, test functions, and e-Loop setting access |
| Typical Use | Wireless exit-only vehicle detection for compatible domestic gate applications |
Also Known As / Related Part Numbers
- AES EL00M-KLT
- EL00M-KLT
- EL00MKLT
- AES e-Loop Mini KLT
- AES Domestic e-Loop Mini Kit with ETRANS200
- AES Domestic eLoop EXIT ONLY with eTrans 200
- AES Domestic Mini Wireless Vehicle Detector Exit Mode Kit
- AES e-Loop Mini Exit Only Kit with ETRANS200
- AES Mini Domestic Vehicle Detection Kit with LCD Transceiver
- EL00M - related loop-only domestic Mini sensor, not the same kit
- EL00M-K - related domestic Mini kit commonly associated with ETRANS50, not the same KLT kit
- EL00M-RAD - related presence-mode radar version, not the same exit-only item
- ETRANS200 - included LCD transceiver in this KLT kit where package confirms
- E-TRANS-200 - alternate spelling for ETRANS200
- e-Trans 200 - alternate spelling for ETRANS200
- ETRANS50 - related single-relay transceiver, not the same as ETRANS200
- ETRANS100 - related two-channel transceiver, not the same as ETRANS200
- EL00C Series - related commercial surface e-Loop family, not the domestic Mini
- EL00IG Series - related inground e-Loop family, not the domestic Mini
- EL00PM Series - related post-mount e-Loop family, not the domestic Mini
- EL00W Series - related wired e-Loop family, not the domestic Mini
- EDR00 - related AES diagnostic remote accessory, not the same part
Related Parts and Accessories
- AES ETRANS200 LCD transceiver for compatible e-Loop systems
- AES ETRANS50 single-channel transceiver where the EL00M-K version is required
- AES ETRANS100 two-channel transceiver for compatible AES e-Loop systems where specified
- AES EDR00 diagnostic remote for supported e-Loop setup and diagnostic functions
- AES E-TX remote transmitters for compatible AES transceiver systems
- AES ANT-4 antenna for select e-Loop transceiver range applications
- AES ANT-30 long-range antenna for select line-of-sight applications
- AES EL00M domestic e-Loop Mini sensor only where a loop-only replacement is required
- AES EL00M-K domestic e-Loop Mini kit with ETRANS50 where that package is required
- Required gate safety photo eyes and monitored safety edges for the gate operator installation
Technician Note
The most important check on this item is the kit suffix and package contents. EL00M-K is commonly shown with ETRANS50 in public catalog material, while this EL00M-KLT page is for the version listed as including ETRANS200. Confirm the actual box label, supplier description, and inventory contents before publishing or shipping.
Also confirm the operating mode. EL00M exit-only products are intended for automatic exit activation. They should not be sold as presence-mode radar detectors unless the part number and product label include the correct RAD version. If the gate needs to stay open while a vehicle is stopped in the detection area, verify whether a presence-mode radar e-Loop is required instead.
Before Ordering, Confirm
- Confirm the exact part number is EL00M-KLT.
- Confirm the kit includes the ETRANS200 LCD transceiver.
- Confirm the application needs EXIT ONLY operation.
- Confirm the job does not require a RAD presence-mode detector.
- Confirm the application is domestic/residential and suitable for the e-Loop Mini product family.
- Confirm the gate controller has a compatible low-voltage input for the transceiver relay output.
- Confirm whether one or both ETRANS200 relay outputs will be used.
- Confirm whether Pulse, Latch, or Hold mode is required.
- Confirm the mounting surface, detection area, and expected vehicle path.
- Confirm the battery type, battery quantity, and whether batteries are included.
- Confirm whether accessories such as an EDR00 diagnostic remote, external antenna, or additional remotes are needed.
- Confirm the installation will still include required gate safety devices.
Installation and Service Notes
- Follow the current AES instructions for mounting, coding, calibration, and mode setup.
- Install the e-Loop Mini only in a location suitable for the intended exit detection zone and vehicle path.
- Do not install it where the application requires presence-hold detection unless the correct presence-mode model is being used.
- Code the e-Loop Mini to the ETRANS200 before testing gate operation.
- Use the ETRANS200 relay outputs only with compatible low-voltage operator or access control inputs.
- Do not use the relay outputs to switch gate motor power or high-voltage loads.
- After setup, test exit activation, release timing, auto-close operation, and normal gate closing.
- Test all required safety photo eyes, safety edges, monitored entrapment devices, emergency access, and fire access functions after service.
Professional Advisory
Wireless vehicle detection, transceiver relay wiring, gate operator inputs, and automated gate safety circuits should be handled by a qualified gate or access control technician when the wiring is unclear, the site has vehicle traffic, or the operator has monitored safety requirements. Do not bypass photo eyes, safety edges, monitored entrapment protection, emergency access equipment, fire access equipment, or operator safety functions to make an exit detector appear to work.
Product Questions & Answers
What comes with the AES EL00M-KLT kit?
The AES EL00M-KLT should be treated as a domestic e-Loop Mini exit-only kit with an AES ETRANS200 LCD transceiver, where the package confirms that KLT configuration. Confirm actual contents before shipping if batteries, mounting hardware, antenna accessories, or diagnostic tools are required.
Is the EL00M-KLT the same as EL00M-K?
No. EL00M-K is commonly associated with the ETRANS50 transceiver, while EL00M-KLT is being used here for the ETRANS200 LCD transceiver version. The two kit versions should not be treated as the same package without checking the actual box contents.
Is the AES EL00M-KLT exit only or presence mode?
The AES EL00M-KLT page is written for the domestic e-Loop Mini EXIT ONLY version. If the application requires presence hold or radar-based presence detection, verify whether a RAD presence-mode model is required instead.
Does the EL00M-KLT require cutting the driveway?
No. The e-Loop Mini is a wireless surface-mounted vehicle detector and does not use a traditional saw-cut induction loop wire. It still needs to be mounted, coded, and tested according to the current AES instructions.
What does the ETRANS200 do in this kit?
The ETRANS200 receives the wireless signal from the compatible AES e-Loop Mini sensor and provides relay outputs to the gate operator or access control input. It also adds an LCD menu, device management, test functions, and two relay outputs for supported applications.
Can the EL00M-KLT be used as the only gate safety device?
No. The EL00M-KLT is an exit-only vehicle detection kit, not a complete entrapment protection system. Required photo eyes, monitored safety edges, emergency access equipment, and other gate safety devices must remain installed and working where required.
What should be checked before replacing an EL00M-KLT system?
Before replacing the system, check the e-Loop batteries, mounting location, coding to the ETRANS200, radio signal strength, relay mode, gate operator input wiring, auto-close setup, and required safety devices. A setup issue can look like a failed detector.
